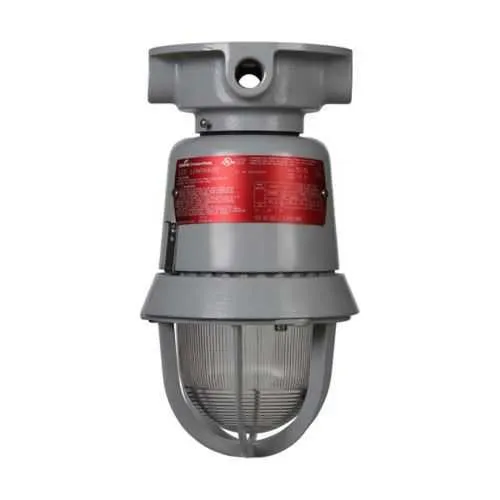

Eaton Crouse-Hinds EVLEDCX2W701 EV LED light fixture - IP66
Part Number: EVLEDCX2W701
Quick Summary
EVLEDCX2W701 EV LED light fixture is a high-efficiency lighting solution for hazardous locations. Facility teams often contend with unreliable lighting that stalls production and drives maintenance costs in demanding environments. It delivers IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance for Class I Zone 1 and Zone 2, among other hazardous-location ratings. Built for ceiling mounting with a copper-free aluminum body, it also supports a wide 100–277 Vac input, reducing spare-part diversity while enabling centralized procurement. Together, these features translate into lower energy use, longer service life, and predictable performance across global sites.
Product Information
Extended Description
EVLEDCX2W701 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.25A, Warm white, AC drive, 70-100W HID equiv lumin, 50/60 Hz, Heat and impact resistant glass globe, With guard, Copper-free alum, Ceiling mount, 0.87 power factor, 3/4", 100-277 Vac, 30W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDCX2W701
Product Length/Depth
7.25 in
Product Height
13.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276311077
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class I, Division 1 Class II, Division 1 Class I, Zone 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Warm white
Mounting Method
Ceiling
Trade size
3/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
30W
Amperage Rating
0.25A
Power factor
0.87
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
70-100W HID
Eaton Crouse-Hinds EVLEDCX2W701 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDCX2W701
Copper-free aluminum housing improves corrosion resistance in aggressive environments, reducing repaint and part replacement cycles while extending fixture life in chemical plants and offshore facilities. This translates to lower maintenance costs and less downtime, supporting continuous production of hazardous-location operations. The AC drive with a wide 100–277 Vac and 50/60 Hz range simplifies global deployment, minimizing on-site wiring changes and reducing installation complexity in multi-site facilities. IP66 rating and a robust guard provide dependable protection against dust, water ingress, and physical tampering, ensuring reliable operation in washdown zones and outdoor structures. The included guard and 3/4" trade-size ceiling mount streamline integration with existing conduit systems, cutting installation labor and speeding up commissioning in new builds. With 30W consumption and 0.87 PF, this fixture delivers HID-equivalent brightness (70–100W) at a fraction of energy cost, improving predictive maintenance and lifecycle cost planning. The warm white output supports visual clarity and worker comfort, while the copper-free aluminum construction contributes to a lighter weight and easier handling during retrofits. Overall, EVLEDCX2W701 aligns with NEC/CEC compliance and hazardous-location standards, making it a trusted choice for oil & gas, chemical processing, and industrial plants seeking reliable, code-compliant lighting with long service life.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDCX2W701
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDCX2W701?
Enquire Now
FAQs
For hazardous locations, ensure Class I Zone 1/Zone 2 or NEC/CEC compliance. Use the 3/4" trade-size threaded mounting and ceiling installation compatible with existing conduit. The fixture includes a guard for added protection, and the housing is copper-free aluminum designed to withstand corrosive atmospheres. Verify 100–277 VAC supply, 50/60 Hz, and proper wiring within an approved enclosure to maintain IP66/NEMA 4X integrity.
EVLEDCX2W701 consumes 30 W with a current draw of 0.25 A, operating on 100–277 VAC at 50/60 Hz. It provides a warm white output with a power factor of 0.87, and its AC drive simplifies installation across varied electrical systems. These specs enable HID-grade illumination with lower energy consumption and easier cross-site compatibility.
Yes. The fixture is rated for Hazardous/Classified Locations and supports NEC/CEC compliance with Class I Zone 1/Zone 2 and Class II Division 1 ratings. It also meets NEMA 4X and IP66 protections, making it suitable for marine, chemical, and other harsh environments where robust, compliant lighting is required.
EVLEDCX2W701 carries NEC/CEC compliance, IP66 protection, NEMA 4X enclosure rating, and hazardous-location certifications for Class I/Zone 1 & 2. Additional UL certification references and marine suitability are available through the provided installation sheets and catalog pages, ensuring alignment with global safety and performance standards.
Compared with 70–100 W HID luminaires, EVLEDCX2W701 delivers comparable brightness at 30 W, reducing energy consumption and cooling load. Its long life and rugged construction lower maintenance costs and downtime in hazardous locations. The wide voltage range and simple ceiling installation shorten commissioning time, supporting faster project ROI and lower total cost of ownership over the fixture’s lifecycle.
