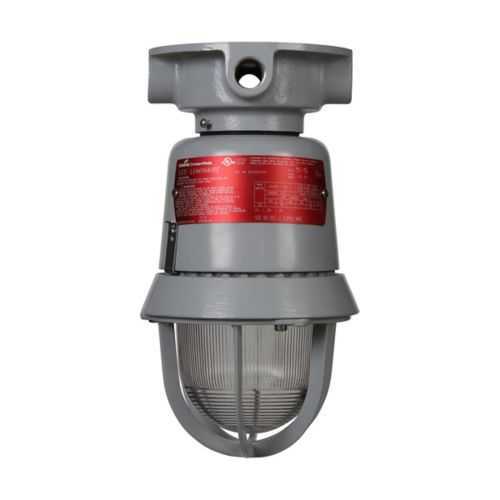

Eaton EVLEDCX3W201 LED Light Fixture - IP66 Hazardous Locations

Part Number: EVLEDCX3W201
EVLEDCX3W201
Manufacturer
Eaton Crouse-Hinds
Part number
EVLEDCX3W201
Category

Quick Summary

The EV LED light fixture from Eaton Crouse-Hinds delivers reliable illumination for hazardous locations in industrial settings. In demanding environments, maintenance cycles and downtime can spike operating costs and disrupt production. This fixture carries NEC/CEC compliance for Hazardous/Classified Locations, along with IP66 and NEMA 4X ratings to withstand moisture, dust, and impact in harsh conditions. Designed for energy efficiency and long service life, it features warm white light, 100–277 VAC operation, and a compact 1" trade size in a ceiling-mount form factor—ideal for industrial LED lighting applications in hazardous areas.

Product Information

Extended Description

EVLEDCX3W201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.12A, Warm white, AC drive, 100-200W incan equiv lumin, 50/60 Hz, Heat and impact resistant glass globe, With guard, Copper-free alum, Ceiling mount, 0.86 power factor, 1", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDCX3W201
Product Length/Depth
7.25 in
Product Height
13.75 in
Product Width
7.25 in
Product Weight
11.1 lb
UPC
662276571617
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class I, Zone 1 Class I, Division 1 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Warm white
Mounting Method
Ceiling
Trade size
1"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.12 A
Power factor
0.86
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDCX3W201 3D drawing Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EV LED catalog page EV LED Explosionproof LED Light Fixtures UL certification EV LED Explosionproof LED Light Fixtures UL certification EV LED Explosionproof LED Light Fixtures UL certification IF 1562 - Hazard-Gard EV LED Eaton Specification Sheet - EVLEDCX3W201
Hazardous-location certification and rugged enclosure are a core feature set that drives business value: NEC/CEC compliance with Class I, Zone 1 and 2, Division 1 (and Class II, Division 1) discloses the safety alignment necessary for oil, gas, and chemical environments. The impact is regulatory peace-of-mind and reduced risk of non-compliance during audits, enabling faster project approvals and safer installations. In terms of energy performance, the unit draws 15W at 0.12 A with a 0.86 power factor on 100–277 VAC, delivering meaningful energy savings and cooler operation versus legacy incandescent equivalents in the same class. This translates to lower utility costs and improved system reliability on the line.

Get a Quick Quote for a Eaton Crouse-Hinds EVLEDCX3W201

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLEDCX3W201? Enquire Now

FAQs

What mounting and sizing considerations apply when installing EVLEDCX3W201 in hazardous zones? This ceiling-mounted unit uses a 1" trade size with a guard for added protection, weighs about 11.1 lb, and fits standard industrial ceilings. Its dimensions (7.25 in W, 13.75 in H) and 0.12 A current draw simplify retrofit planning while meeting IP66/NEMA 4X requirements.
How does EVLEDCX3W201 compare to traditional lighting in terms of watts and efficiency? It delivers 15W with warm white output, 0.86 PF, on 100–277 VAC and 50/60 Hz. Equivalent incandescent performance is 100–200W, offering energy savings, reduced heat, and compatibility with common facility electrical supplies.
Is this LED fixture approved for hazardous locations? Yes. It carries NEC/CEC hazardous-location ratings including Class I Zone 1/2 and Division 1 (and Class II Division 1) along with IP66 and NEMA 4X, ensuring safe operation in harsh chemical and industrial environments.
What resources help with procurement and installation? The EVLEDCX3W201 product line includes UL certification references, installation sheets, a 3D CAD drawing package, and catalog pages. These resources streamline ordering, permit approvals, and precise mounting during commissioning.
Why choose this LED fixture for ROI in hazardous areas? The combination of low wattage, long life, IP66/NEMA 4X protection, and copper-free aluminum housing reduces maintenance cycles, minimizes downtime, and lowers total cost of ownership compared with legacy luminaires in harsh environments.
