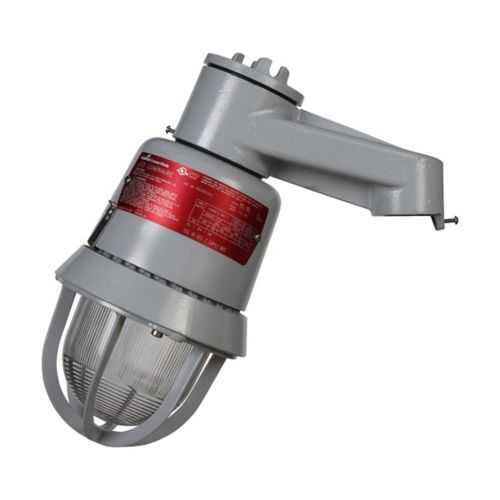

Eaton EVLEDJ4C201 LED Light Fixture - IP66 Hazardous
Part Number: EVLEDJ4C201
Quick Summary
EV LED light fixture delivers robust, energy-efficient illumination for hazardous industrial locations. Engineered for environments where outages are costly, this model reduces downtime with rugged construction and long life. It carries NEC/CEC compliance, IP66 protection, and NEMA 4X ratings for reliable performance in hazardous and outdoor settings. With 15W consumption and 1500 lumens, it operates on 100-277 VAC with a 50/60 Hz supply and features a 25° stanchion angle and cool white light to improve visibility and safety across challenging applications. Designed for retrofit projects and new installations alike, it helps facilities meet hazardous-location codes while delivering consistent lighting performance.
Product Information
Extended Description
EVLEDJ4C201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.06 - 0.17A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 1500 lumens, 100 lm/W, Copper-free alum, Stanchion 25° angled, >0.90 PF, 1-1/4", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDJ4C201
Product Length/Depth
13.25 in
Product Height
13.5 in
Product Width
7.25 in
Product Weight
12.5 lb
UPC
662276273580
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Stanchion 25° angled
Trade size
1-1/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.06 - 0.17A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDJ4C201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
EV LED Explosionproof LED Light Fixtures UL certification (Marine)
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDJ4C201
Power, efficiency, and brightness are engineered together in the EVLEDJ4C201. The 15W LED produces about 1500 lumens, roughly 100 lm/W, delivering bright illumination with minimal energy draw and reduced heat. It accepts 100-277 VAC input and runs at 50/60 Hz, supporting a wide range of electrical configurations and simplifying site wiring and retrofits. Durable construction supports harsh environments; copper-free aluminum housing and a heat- and impact-resistant glass globe resist corrosion and impact, while an integrated guard and IP66/NEMA 4X ratings protect against dust, water, and physical damage. Installation is flexible thanks to a 1-1/4" trade size and a 25° angled stanchion, enabling quick alignments in confined spaces. The cool white light enhances color accuracy and safety, and the 1500 lumens are equivalent to a 100–200W incandescent, aiding straightforward replacements and retrofit planning. This fixture also supports regulated locations with NEC/CEC compliance, ensuring installation approvals and ongoing regulatory adherence. The combination of wide voltage tolerance, high PF (>0.90), and compact form factor reduces ballast requirements and enables scalable lighting across plant sections, warehouses, and offshore platforms.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDJ4C201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDJ4C201?
Enquire Now
FAQs
The EVLEDJ4C201 is designed for universal 100-277 VAC operation and 50/60 Hz supply, simplifying integration into existing electrical infrastructures. Its mounting uses a standard 1-1/4 inch trade size and a 25° angled stanchion, enabling straightforward retrofit or new-installation fits in cramped, hazardous locations without requiring additional adapters or transformers.
This luminaire is rated IP66 and NEMA 4X for strong dust and water ingress protection, and it supports NEC/CEC standards with NEC hazardous classifications (Class I, Division 1; Zone 1; Zone 2) and Class II Division 1. These certifications help ensure compliance, simplify approvals, and reduce installation risk in classified environments.
Yes. With 1500 lumens and a 15W power draw, the EVLEDJ4C201 provides comparable or better illumination while dramatically reducing energy use. Its cool white output and high color fidelity improve visibility and safety, while its robust construction supports long service life in demanding hazardous locations.
The fixture uses copper-free aluminum housing and a heat- and impact-resistant glass globe, protected by a guard. IP66 and NEMA 4X ratings prevent water, dust, and physical damage from compromising performance, making it suitable for outdoor, industrial, and offshore applications with minimal maintenance.
This LED solution reduces maintenance cycles due to its long life and high reliability, cutting labor and downtime costs. The energy efficiency lowers operating expenses, and the wide operating voltage range facilitates scalable deployments across multiple plant zones, delivering a favorable return on investment through lower energy bills and fewer replacements.
