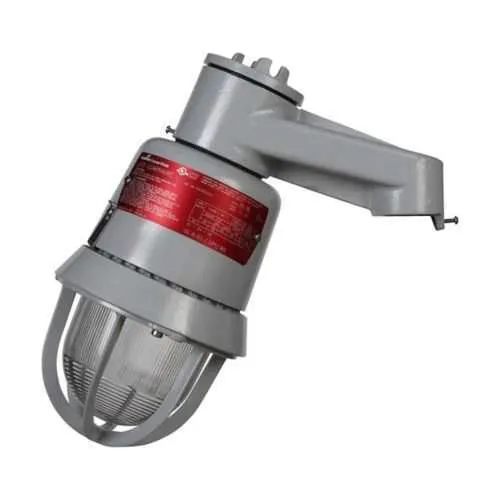

Eaton Crouse-Hinds EVLEDJ4C701 LED Light Fixture IP66
Part Number: EVLEDJ4C701
Quick Summary
EV LED light fixture from Eaton Crouse-Hinds delivers reliable, high-output illumination for hazardous/classified locations in industrial facilities. Operators struggle with frequent replacements and outages in harsh environments; this fixture is built to endure. It complies with NEC/CEC standards, carries IP66 ingress protection, and is NEMA 4X rated for rugged outdoor and industrial settings. Designed for hazardous locations lighting with AC drive and 100-277 VAC operation, it helps facilities reduce energy use and downtime. With 2900 lumens at 97 lm/W, a heat- and impact-resistant glass globe, and a 25° stanchion mount, it minimizes glare and simplifies installation. This reduces downtime and predictable maintenance costs.
Product Information
Extended Description
EVLEDJ4C701 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.11 - 0.30A, Cool white, AC drive, Heat and impact resistant glass globe, With guard, 2900 lumens, 97 lm/W, Copper-free alum, Stanchion 25° angled, >0.90 PF, 1-1/4", 100-277 Vac, 30W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDJ4C701
Product Length/Depth
13.25 in
Product Height
13.5 in
Product Width
7.25 in
Product Weight
12.5 lb
UPC
662276278332
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Zone 1 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Cool white
Mounting Method
Stanchion 25° angled
Trade size
1-1/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
30W
Amperage Rating
0.11 - 0.30A
Power factor
>0.90
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
70-100W HID
Eaton Crouse-Hinds EVLEDJ4C701 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
EV LED Explosionproof LED Light Fixtures Canadian certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDJ4C701
Feature: High-efficiency LED with 2900 lumens and 97 lm/W delivers bright, consistent illumination while reducing energy use. Business Impact: lower operating costs and longer lamp life translate to fewer replacements in hard-to-reach locations. Application: ideal for hazardous areas in oil, gas, and chemical processing where reliable lighting is mission-critical. Feature: IP66 ingress protection with a NEMA 4X rating ensures robust performance against dust, water, and corrosion. Business Impact: enhances safety compliance and minimizes downtime due to weather or washdown. Application: outdoor, washdown-ready, and classified locations where equipment must endure harsh environments. Feature: AC drive with voltage range 100-277 VAC and 50/60 Hz compatibility, plus a power factor above 0.90. Business Impact: simplified electrical design and reduced utility penalties, especially in mixed-voltage facilities. Application: retrofit projects and new installations across facilities with varying supply standards. Feature: Copper-free aluminum housing, heat- and impact-resistant glass globe, guard, and 25° angled stanchion mount. Business Impact: improved durability, beam control, and protection against physical shocks. Application: high-vibration or overhead mounting in hazardous areas. Feature: 30W, 2900 lumens with an equivalent HID range of 70-100W, 1-1/4" trade size, and 0.11-0.30A draw. Business Impact: faster ROI through retrofit compatibility, longer intervals between maintenance, and reduced energy footprint. Application: facilities upgrading legacy HID fixtures in confined spaces while meeting NEC/CEC and IP66 requirements.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDJ4C701
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDJ4C701?
Enquire Now
FAQs
EVLEDJ4C701 uses a 1-1/4" trade size with a 25° angled stanchion and a guarded housing. It is designed for straightforward mounting using standard brackets while maintaining IP66 integrity. Ensure the conduit entry is sealed and the mounting surface supports the 12.5 lb weight to preserve performance and seal integrity in hazardous locations.
The fixture operates at 30 watts with a current range of 0.11–0.30 A, across 100–277 VAC and 50/60 Hz. It features a power factor greater than 0.90, enabling efficient power consumption and reduced utility penalties. This combination supports reliable performance in facilities with mixed voltage supplies and variable loads.
Yes. The unit is rated for Hazardous/Classified Locations with NEC/CEC compliance, including NEC hazardous ratings for Class I Division 1 and Zone 1, as well as Class II Division 1, ensuring safe operation in oil, gas, and chemical processing areas.
IP66 protects against dust ingress and powerful water jets, while NEMA 4X adds corrosion resistance and weatherproofing. Together with a heat- and impact-resistant globe and copper-free aluminum housing, the fixture maintains performance in washdowns, outdoor exposure, and vibration-heavy facilities, reducing maintenance and replacement cycles.
The LED design delivers long life and high efficiency, reducing replacement frequency compared with legacy HID lamps. Its HID-equivalent output (70–100 W) and 97 lm/W efficiency lower energy costs, while durable construction reduces field service visits in hazardous environments, delivering faster payback and lower total cost of ownership.
