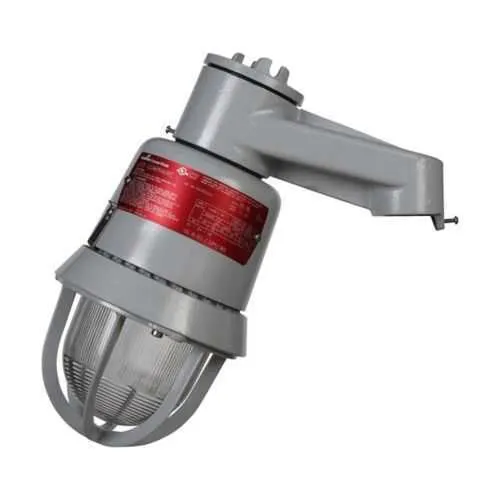

Eaton Crouse-Hinds EVLEDJ4W201 LED Light Fixture - IP66
Part Number: EVLEDJ4W201
Quick Summary
EVLEDJ4W201 is an LED light fixture designed for hazardous locations and industrial environments requiring dependable illumination. In facilities with limited maintenance access, unreliable lighting can threaten safety and productivity. This luminaire meets Hazardous/Classified Location requirements and provides IP66 protection with a NEMA 4X enclosure to resist dust, water, and corrosion. It also aligns with NEC/CEC standards to ease code compliance across North American projects. Energy-efficient warm-white output and a 15W drive reduce energy costs while extending service life. For engineers and procurement teams, it offers rugged durability and predictable performance in hazardous environments.
Product Information
Extended Description
EVLEDJ4W201 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EV LED light fixture, 0.12A, Warm white, AC drive, 100-200W incan equiv lumin, 50/60 Hz, Heat and impact resistant glass globe, With guard, Copper-free alum, Stanchion 25° angled, 0.86 PF, 1-1/4", 100-277 Vac, 15W
Product Name
Eaton Crouse-Hinds series EV LED light fixture
Catalog Number
EVLEDJ4W201
Product Length/Depth
13.25 in
Product Height
13.5 in
Product Width
7.25 in
Product Weight
12.5 lb
UPC
662276327030
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class I, Division 1 Class I, Zone 1 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Color temperature
Warm white
Mounting Method
Stanchion 25° angled
Trade size
1-1/4"
Guard
With guard
Drive type
AC
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Wattage
15W
Amperage Rating
0.12 A
Power factor
0.86
Material
Copper-free aluminum
Globe material
Heat and impact resistant glass
Equivalent luminaire
100-200W incandescent
Eaton Crouse-Hinds EVLEDJ4W201 3D drawing
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EV LED catalog page
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
EV LED Explosionproof LED Light Fixtures UL certification
IF 1562 - Hazard-Gard EV LED
Eaton Specification Sheet - EVLEDJ4W201
IP66/NEMA 4X rugged enclosure protects sensitive electronics from dust, water, and chemical exposure. This durability reduces unplanned downtime and extends service life in chemical plants, oil and gas facilities, mining sites, and outdoor installations. The stanchion 25° angled mount and 1-1/4" trade size simplify alignment and integration with existing workflows. Copper-free aluminum housing paired with heat- and impact-resistant glass globe delivers corrosion resistance and long-term reliability. In corrosive environments, maintenance frequency and replacement costs are reduced, supporting total cost of ownership goals. The AC drive operates at 100-277 Vac with a 50/60 Hz supply, drawing only 0.12 A for a 15 W lamp, and a 0.86 PF minimizes electrical waste and utility charges during long operation hours. The warm white output provides safe, comfortable illumination while meeting crew safety standards, and its 100-200W incandescent equivalent makes lighting design straightforward for retrofits. By combining rugged compliance with straightforward installation and solid energy performance, EVLEDJ4W201 supports rapid project deployment and ongoing regulatory adherence.
Get a Quick Quote for a Eaton Crouse-Hinds EVLEDJ4W201
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLEDJ4W201?
Enquire Now
FAQs
EVLEDJ4W201 uses a 1-1/4" trade size with a stanchion 25° angled mounting and includes a guard. Plan for a secure mounting surface that supports the 13.25in length and 13.5in height, ensure proper wiring to 100-277 Vac supply, and verify compliance with NEC/CEC for Class I, Zone 1/2 and Class II, Division 1 environments.
The luminaire draws 0.12 A at 15 W with a 0.86 power factor and operates on 100-277 Vac at 50/60 Hz. This combination delivers energy-efficient illumination comparable to a 100-200 W incandescent equivalent, reducing heat load, utility costs, and cooling requirements in industrial settings.
Yes. EVLEDJ4W201 is rated for Hazardous/Classified Locations, including Class I Zone 1 and Zone 2, as well as Class II Division 1, with IP66 and NEMA 4X protection. This makes it appropriate for petrochemical plants, offshore facilities, and other high-risk industrial locations.
The fixture carries NEC/CEC compliance, IP66 ingress protection, and a NEMA 4X enclosure. It is certified for Hazardous/Classified Locations, with additional UL/CSA verifications documented in Eaton literature and installation guides.
With a 15 W drive, copper-free aluminum housing, and a durable glass globe, the EVLEDJ4W201 delivers long service life and low maintenance. This reduces replacement intervals, minimizes downtime, and lowers energy and cooling costs—benefiting TCO in continuous-duty hazardous-area lighting applications.
