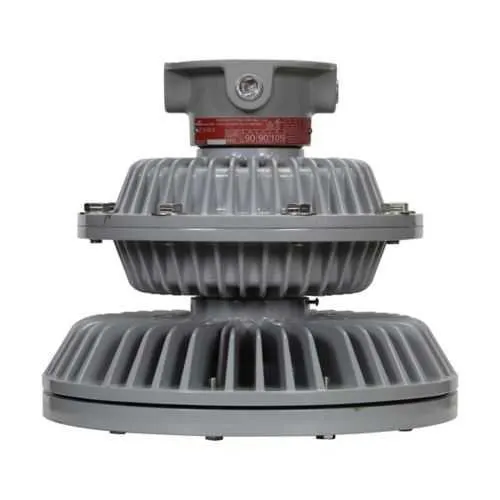

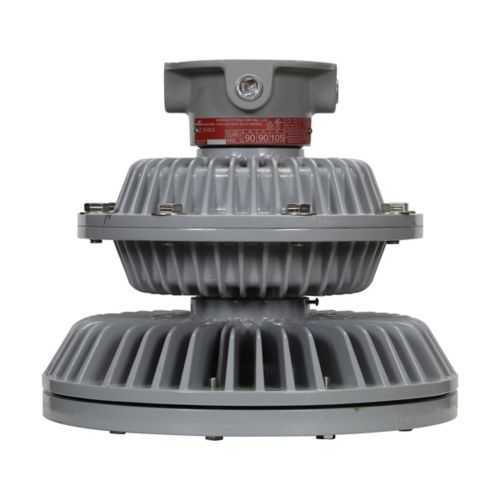

Eaton EVLLA11LCCX20-UNV1 LED Light Fixture - IP66

Part Number: EVLLA11LCCX20-UNV1
EVLLA11LCCX20-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA11LCCX20-UNV1
Category

Quick Summary

EVLLA11LCCX20-UNV1 LED light fixture for hazardous locations provides high-output illumination for industrial facilities. In challenging environments, downtime and maintenance costs spike when lighting fails or requires frequent parts replacement. This fixture carries IP66 protection, NEMA 4X integrity, and NEC hazardous ratings (Class I, Division 1; Class II, Division 1; Class III), ensuring reliable operation in flammable atmospheres. With 11000 lumens at 104 lm/W and a dimmable driver, it delivers energy efficiency and long life while copper-free aluminum and a shatter-resistant lens resist corrosion and impact. The 120-277 VAC universal input and ceiling-mount design simplify installation across mixed-voltage facilities, reducing procurement complexity and project risk.

Product Information

Extended Description

EVLLA11LCCX20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 250W-320W HID equivalent, No guard, Shatter-resistant glass lens, 11000 lumens, 104 lm/W, Copper-free aluminum, Ceiling mount, 3/4", 120-277 Vac, 115W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA11LCCX20-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
56.5 lb
UPC
662276990654
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
104
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
250W-320W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
115W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EVLLA LED catalog page Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement Hazard-Gard EVLL LED Explosionproof Hazard-Gard EVLL LED Explosionproof
Feature: LED technology delivering 11000 lumens at 104 lm/W reduces energy use and extends intervals between maintenance cycles, supporting safer, brighter zones in hazardous environments. Business impact: lower operating costs and higher process reliability. Application: chemical plants, refineries, and mining facilities requiring high-intensity illumination with long life. Feature: IP66 and NEMA 4X-rated housing with copper-free aluminum and shatter-resistant lens improves corrosion resistance and impact protection, cutting replacement costs in demanding settings. Application: offshore platforms and onshore plants exposed to dust, water, and chemicals. Feature: dimmable driver and 115 W draw enable flexible lighting control, reducing energy bills by enabling setpoints for task-specific work. Application: workflow-driven maintenance and assembly lines. Feature: ceiling mounting and 3/4 in lens plugs provide straightforward installation and compatibility with standard conduit systems. Application: retrofit or new builds across facilities with existing ceilings. Feature: wide voltage range 120-277 VAC supports mixed-power environments, simplifying procurement and stocking for multi-site operations.

Get a Quick Quote for a Eaton Crouse-Hinds EVLLA11LCCX20-UNV1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLLA11LCCX20-UNV1? Enquire Now

FAQs

Yes. For hazardous-location installations, verify NEC Class I, Division 1 compliance and use appropriate explosion-proof mounting hardware. EVLLA11LCCX20-UNV1 is ceiling-mounted and rated IP66/NEMA 4X, designed to withstand dust, water, and corrosive atmospheres. It accepts 120-277 VAC input, so wire methods should align with standard conduit fittings and voltage at the site. Use gaskets and seals per installation instructions to maintain integrity.
Key specs include 11000 lumens with 104 lm/W efficacy, 115 W power draw, cool white color temperature, 120-277 VAC input, 50/60 Hz operation, IP66 and NEMA 4X ratings, and a dimmable driver. The unit is designed to replace 250–320 W HID equivalents, delivering brighter lighting with lower energy costs and easier replacement in hazardous environments.
Yes, EVLLA11LCCX20-UNV1 is suitable for Class I, Division 1 areas, and it also supports Class II, Division 1 and Class III per NEC hazardous-location ratings. Install per wiring diagrams and maintain enclosure integrity with the gasketed lens and protective housing. When used with a 120-277 VAC supply, it can integrate into existing power distribution without requiring specialized transformers.
Certifications include IP66 ingress protection, NEMA 4X corrosion resistance, and NEC hazardous location ratings for Class I, Division 1; Class II, Division 1; Class III. Canadian and CE/CEC compatibility are supported through UL certification pathways. This combination ensures compliance in refineries, chemical plants, and other hazardous facilities while simplifying vendor qualification and safety approvals.
From a maintenance perspective, this LED fixture lowers total cost of ownership with long life and a dimmable driver, reducing lamp replacements and energy usage. Copper-free aluminum resists corrosion, and the shatter-resistant lens limits replacement due to impact. Over time, this translates to reduced downtime, lower maintenance labor, and improved process uptime in critical facilities.
