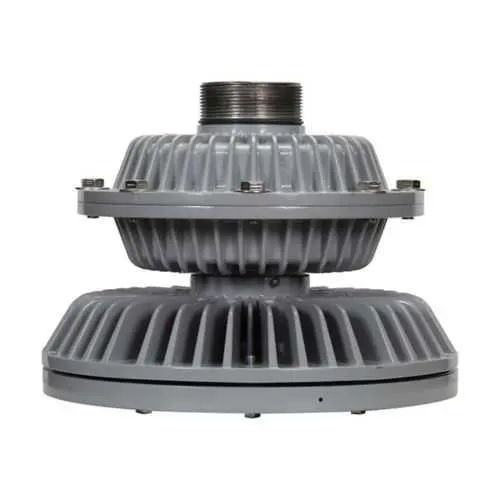

Eaton EVLLA11LCM0-UNV1-S812 LED Hazard-Gard IP66
Part Number: EVLLA11LCM0-UNV1-S812
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA11LCM0-UNV1-S812
Category
Quick Summary
The Eaton EVLLA11LCM0-UNV1-S812 LED Hazard-Gard light fixture delivers high-output illumination for hazardous locations in industrial facilities. Facility teams often struggle with reliability, maintenance downtime, and safety compliance when explosive atmospheres are involved. It meets NEC/CEC standards, offers IP66 ingress protection, and carries a NEMA 4X rating for rugged outdoor and industrial use. With a mounting module adapter and optional trunnion kit, it's straightforward to retrofit into existing layouts, while the dimmable driver supports energy-efficient operation within 120–277 VAC systems. This combination delivers improved safety, reduced energy costs, and easier maintenance planning for harsh industrial environments.
Product Information
Extended Description
EVLLA11LCM0-UNV1-S812 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 250W-320W HID equiv, No guard, Shatter-resistant glass lens, 11000 lumens, 104 lm/W, Copper-free alum, Mounting module adapter, Trunnion mount kit, 120-277 Vac, 115W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA11LCM0-UNV1-S812
Product Length/Depth
15.9 in
Product Height
11.97 in
Product Width
15.9 in
Product Weight
55 lb
UPC
662276991378
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
104
Color temperature
Cool white
Mounting Method
Mounting module adapter
Equivalent luminaire
250W-320W HID
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
115W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Feature → 11000 lumens output at 104 lm/W from a 115W LED luminaire → Business impact: strong, consistent visibility reduces error rates and safety incidents; Application: refinery floors, chemical plants, and mining sites where high brightness is essential. Feature → 120-277 VAC universal input with a dimmable driver and PF > 0.90 → Business impact: simplifies power distribution and enables energy optimization across shifts; Application: facilities migrating to higher-efficiency, variable-demand lighting. Feature → Copper-free aluminum housing with shatter-resistant glass lens and IP66/NEMA 4X protection → Business impact: extended service life in corrosive or washdown environments; Application: offshore platforms, processing plants, and hazardous material handling zones. Feature → Mounting module adapter and optional trunnion mount kit → Business impact: flexible installation and retrofit readiness; Application: retrofit projects with minimal downtime and compatible mounting footprints. Feature → Lens assembly with double NPT threaded ports and Ex-d plug → Business impact: durable access points for maintenance and sealing; Application: explosion-protected lighting installations requiring robust lens interfaces.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA11LCM0-UNV1-S812
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA11LCM0-UNV1-S812?
Enquire Now
FAQs
Installation requires adherence to explosive atmosphere ratings. Use the mounting module adapter or optional trunnion kit for installation in suitable enclosures, connect to 120-277 VAC supply, and ensure IP66/NEMA 4X enclosure seals are intact. Refer to IF 1913/IF 1914 instruction sheets for driver replacement and wiring guidance to maintain safety compliance.
The EVLLA11LCM0-UNV1-S812 delivers 11000 lumens with a 104 lm/W efficacy at 115W, operating on 120-277 VAC with 50/60 Hz input. It features a dimmable driver, PF > 0.90, and a cool white color temperature, suitable for high-visibility industrial work environments and accurate color rendition for inspections.
Yes. It is rated for Hazardous/Classified Locations with IP66 ingress protection and a NEMA 4X enclosure, meeting NEC/CEC requirements. Its copper-free aluminum housing and shatter-resistant lens withstand challenging environments typical of offshore platforms and underground mining operations.
Absolutely. The product supports a mounting module adapter and optional trunnion mount kit, enabling flexible retrofits with minimal downtime. The dual NPT lens ports and Ex-d threaded plug simplify maintenance access while preserving seal integrity, making it a practical choice for upgrading legacy hazardous-location lighting.
LED longevity and a dimmable driver reduce routine maintenance and energy costs. The availability of installation and specification documents, plus driver replacement guidance, supports predictable maintenance planning. The high efficiency and robust protection translate into lower operating expenses and a faster return on investment for facilities in demanding industrial settings.
