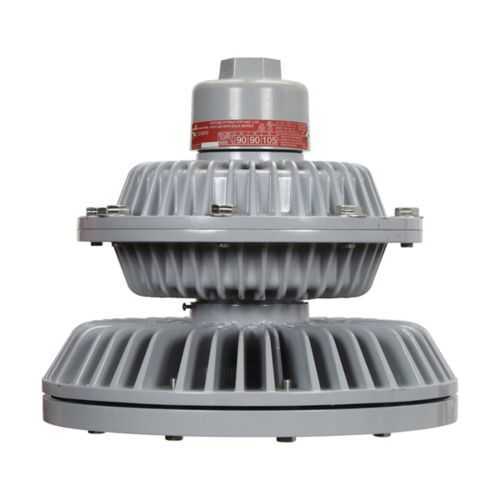

Eaton Crouse-Hinds EVLLA11LWA30-UNV1 LED Fixture - IP66
Part Number: EVLLA11LWA30-UNV1
Quick Summary
EVLLA11LWA30-UNV1 LED fixture is designed to deliver reliable hazardous-location illumination for industrial facilities. In harsh plant environments, poor lighting and frequent maintenance slow production and elevate safety risk for workers. It carries IP66 protection, NEMA 4X enclosure, and NEC/CEC hazardous-location ratings for Class I, II, and III Division 1, ensuring code-compliant operation across global facilities. With 120–277 VAC operation and a warm-white output, this pendant-mounted luminaire provides an energy-efficient HID replacement for 250–320 W systems. Upgrading to this LED solution reduces energy costs, extends maintenance intervals, and improves reliability in hazardous environments, supporting safer, compliant operations.
Product Information
Extended Description
EVLLA11LWA30-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 250W-320W HID equivalent, No guard, Shatter-resistant glass lens, 11000 lumens, 104 lm/W, Copper-free aluminum, Pendant mount, 1", 120-277 Vac, 115W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA11LWA30-UNV1
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
55 lb
UPC
662276992795
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
104
Color temperature
Warm white
Mounting Method
Pendant
Equivalent luminaire
250W-320W HID
Trade size
1"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
115W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA11LWA30-UNV1
Eaton Specification Sheet - EVLLA11LWA30-UNV1
High lumen output and efficiency drive meaningful business value: the EVLLA11LWA30-UNV1 delivers 11,000 lumens at 104 lm/W with a 115 W consumption, enabling a direct, energy-progressive replacement for older 250–320 W HID luminaires. This translates to lower energy bills, reduced cooling load, and improved light levels in critical work zones such as refineries and chemical plants. The second key benefit is universal voltage and dimming capability: designed for 120–277 VAC operation with a dimmable driver, it simplifies retrofit projects and enables seamless integration with existing control strategies while maintaining consistent performance in hazardous areas. Third, rugged construction and protection: copper-free aluminum, shatter-resistant lens, and IP66/NEMA 4X enclosure provide robust resistance to dust, water, and corrosion—ideal for outdoor pads, gantries, and maintenance corridors. Fourth, ease of installation and serviceability: pendant mounting at 1" trade size with 2 x 3/4" NPT lens provisions and Ex-d threaded plug support flexible alignment and straightforward field upgrades, reducing downtime and lifecycle costs. Finally, strict compliance and support: NEC/CEC hazardous-location ratings (Class I, II, III Division 1) and UL documentation, plus driver-replacement guidance (IF 1914) streamline approvals, maintenance planning, and ongoing reliability for industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA11LWA30-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA11LWA30-UNV1?
Enquire Now
FAQs
The EVLLA11LWA30-UNV1 uses a dimmable driver and supports a broad 120–277 VAC range with 50/60 Hz, enabling straightforward integration with common industrial controls and variable-speed drive systems. This simplifies retrofits and ensures consistent lighting levels when used with compatible dimming schemes.
This luminaire is rated for NEC/CEC hazardous locations with Class I, Division 1; Class II, Division 1; and Class III ratings, along with IP66 ingress protection and a NEMA 4X enclosure, supporting safe operation in Hazardous/Classified Locations.
The EVLLA11LWA30-UNV1 delivers 11,000 lumens at 104 lm/W from a 115 W LED driver, providing a warm white output. It is designed to replace a 250–320 W HID system, delivering energy savings and lower maintenance requirements in hazardous environments.
The fixture is pendant-mounted with a 1" trade size and features lens provisions with 2 x 3/4" NPT metal threads plus a 1 x 3/4" Ex-d threaded plug, facilitating flexible positioning and field servicing. The copper-free aluminum housing adds corrosion resistance for demanding industrial applications.
Official resources include installation and driver-replacement instructions (IF 1914) and UL certification documentation for Hazardous Locations. Compliance with NEC/CEC and hazardous-location classifications helps minimize regulatory risk and supports long-term, low-maintenance operation.
