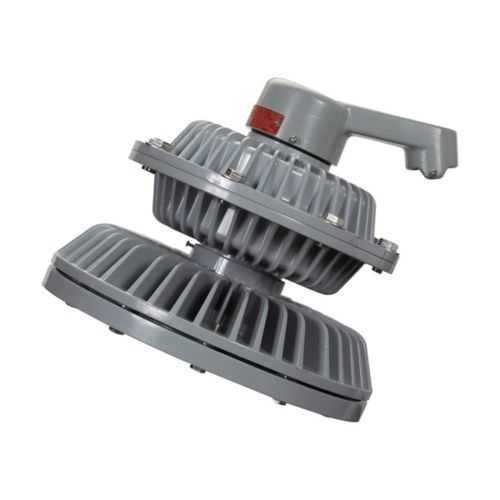

Eaton EVLLA11LWJ50-UNV1 LED Fixture - IP66
Part Number: EVLLA11LWJ50-UNV1
Quick Summary
EVLLA11LWJ50-UNV1 LED fixture delivers hazardous-location illumination for industrial facilities. Facility teams often struggle with reliability and maintenance costs in harsh environments. Designed for Hazardous/Classified Locations, it complies with NEC/CEC standards and carries IP66 and NEMA 4X protection to withstand dust, water, and impact in rugged sites. With a warm white 11000-lumen output and a 104 lm/W efficiency, the unit provides bright, even coverage while keeping power use low. The universal 120–277 VAC input and a dimmable driver simplify installation across multiple zones, delivering long-term cost savings and uptime for operators and maintenance teams.
Product Information
Extended Description
EVLLA11LWJ50-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 250W-320W HID equivalent, No guard, Shatter-resistant glass lens, 11000 lumens, 104 lm/W, Copper-free aluminum,Stanchion 25° angled mount,1-1/2",120-277 Vac,115W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA11LWJ50-UNV1
Product Length/Depth
18.09 in
Product Height
16.05 in
Product Width
18.09 in
Product Weight
58.5 lb
UPC
662276993310
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
11000
Lumens per watt
104
Color temperature
Warm white
Mounting Method
Stanchion 25° angled
Equivalent luminaire
250W-320W HID
Trade size
1-1/2"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
115W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
High-output LED with 11000 lumens at 104 lm/W delivers bright, uniform illumination, reducing inspection time and improving safety metrics in large facilities. Energy efficiency directly lowers operating costs and extends maintenance intervals, especially in expansive warehouses and production floors. The EVLLA luminaire is built for Hazardous/Classified Locations with IP66 and NEMA 4X protection, ensuring reliable performance in dusty, wet, or corrosive environments and minimizing replacement cycles. A universal 120–277 VAC input and dimmable driver enable flexible controls, from simple on/off to compatible dimming schemes, boosting energy management and compatibility with existing infrastructure. Copper-free aluminum housing and shatter-resistant lens maximize durability and reduce lifecycle costs, even in challenging outdoor or indoor sites. The 25° angled stanchion mount simplifies alignment during retrofit projects and enhances mounting versatility on existing lighting poles. Field-serviceable lens and plug design (2 x 3/4" NPT lens, 1 x 3/4" Ex-d threaded plug) supports quick maintenance without full luminaire removal, limiting downtime and enabling faster turnarounds.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA11LWJ50-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA11LWJ50-UNV1?
Enquire Now
FAQs
Installation should follow manufacturer installation sheets and local codes. The EVLLA uses a 1-1/2 inch trade size with a stanchion 25° angled mount for easier alignment on existing poles. It supports 120-277 VAC and offers a dimmable driver, enabling flexible control in Class I, Division 1 environments while maintaining EN/CEC compliance.
This luminaire delivers 11000 lumens at 104 lm/W with a 115 W input. It operates on 120-277 VAC (50/60 Hz) and uses a dimmable driver. The unit is IP66 and NEMA 4X rated, designed for Hazardous/Classified Locations with warm white output to optimize visibility on dense industrial floors.
Yes. EVLLA11LWJ50-UNV1 is designed for Hazardous/Classified Locations and meets NEC/CEC standards with Class I, Division 1 ratings. Its rugged enclosure, IP66/NEMA 4X protection, and shatter-resistant lens provide reliable operation in volatile environments common in oil & gas and chemical processing facilities.
The luminaire is certified for Hazardous/Classified Locations, with NEC/CEC compliance, Class I, Division 1; IP66 ingress protection and NEMA 4X enclosure protection. It is intended for use in hazardous atmospheres, dust, and water exposure, ensuring safe and compliant operation across industrial applications.
The EVLLA11LWJ50-UNV1 provides long LED life with high lumen output, reducing replacement frequency and maintenance costs. Its dimmable driver and universal voltage simplify inventory and retrofits, while the copper-free aluminum housing and shatter-resistant lens minimize corrosion and impact-related downtime, delivering a favorable total cost of ownership in harsh facilities.
