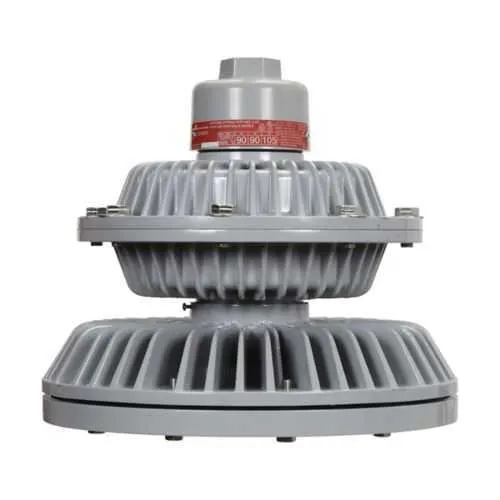

Eaton EVLLA13LCA21-UNV1-S812 LED Light Fixture - IP66
Part Number: EVLLA13LCA21-UNV1-S812
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA13LCA21-UNV1-S812
Category
Quick Summary
EVLLA13LCA21-UNV1-S812 LED light fixture is designed for hazardous-location illumination in industrial facilities. In demanding environments, downtime and maintenance costs rise quickly, so selecting a robust luminaire is critical. This Hazard-Gard LED solution carries UL certification for hazardous locations, IP66 ingress protection, and a NEMA 4X enclosure, aligning with NEC/CEC standards. Its pendant mounting and dimmable driver support flexible installation, enabling energy-efficient upgrades in retrofit or new-build projects while delivering reliable performance and long life.
Product Information
Extended Description
EVLLA13LCA21-UNV1-S812 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equiv, Stainless steel guard, Shatter-resistant glass lens, 13000 lm, 100 lm/W, Copper-free alum, Pendant mt, Trunnion mt kit, 3/4", 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCA21-UNV1-S812
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
55 lb
UPC
662276993921
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Pendant
Equivalent luminaire
320W-400W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
High luminous output with efficiency: 13000 lumens at 100 lm/W reduces the number of fixtures required, cutting energy costs and simplifying layout design for large spaces such as processing halls and maintenance bays. This translates to lower total cost of ownership and faster ROI in petrochemical and chemical-processing plants. Durable housing and guard: copper-free aluminum with a stainless steel guard and shatter-resistant lens withstands harsh industrial environments, minimizing unscheduled downtime and improving worker safety in explosive atmospheres. Hazardous-location protection: IP66, NEMA 4X, and NEC/CEC compliance provide robust protection against dust, water ingress, and corrosive atmospheres, delivering consistent performance in Class I, Division 1 and related classifications. Flexible installation and control: pendant mounting with 3/4-inch NPT lens connections and a dimmable driver support easy retrofits and smart lighting strategies while operating on 120-277 VAC, 50/60 Hz and DC options. Energy efficiency and lifecycle cost: 130W load with PF > 0.90 improves power quality and reduces cooling load, contributing to lower operating expenses and simpler maintenance planning. Industry-ready compatibility: compatible with 100-240 VAC and 127-250 VDC ranges, enabling seamless integration into existing electrical distributions and control schemes for hazardous-locations projects.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCA21-UNV1-S812
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LCA21-UNV1-S812?
Enquire Now
FAQs
The EVLLA13LCA21-UNV1-S812 supports pendant mounting and includes lens mounting hardware with 3/4-inch NPT connections. For hazardous locations, follow standard install practices per NEC/CEC and ensure a compliant enclosure and wiring method. Verify the 120-277 VAC supply, use dimmable drivers if dimming is required, and secure the fixture to a rated pendant support to maintain IP66 integrity.
Key specs include 130W power, 13000 lumens, and 100 lm/W efficiency with a power factor greater than 0.90. The luminaire operates at 120-277 VAC and supports a dimmable driver. Its 50/60 Hz frequency and DC compatibility within the 127-250 VDC range enable flexible integration with existing electrical systems in hazardous areas.
Yes. The EVLLA13LCA21-UNV1-S812 is designed for Hazardous/Classified Locations with NEC hazardous ratings that include Class I, Division 1. It features IP66 ingress protection and a NEMA 4X enclosure, providing robust protection against dust, water, and corrosive atmospheres typical of oil, gas, and chemical processing facilities.
This luminaire carries UL certification for hazardous locations (Class I, Division 1), NEMA 4X enclosure, and IP66 protection. It aligns with NEC/CEC standards and is designed for rugged industrial use in hazardous environments, ensuring safety, reliability, and regulatory compliance for compliant installation and operation.
LED-based Hazard-Gard lighting reduces lamp replacements and maintenance cycles, delivering long service life and predictable performance. With 13000 lumens and high efficiency, you gain energy savings and lower cooling loads. The dimmable driver and robust enclosure simplify retrofits and long-term operational planning, contributing to a favorable return on investment in hazardous-location facilities.
