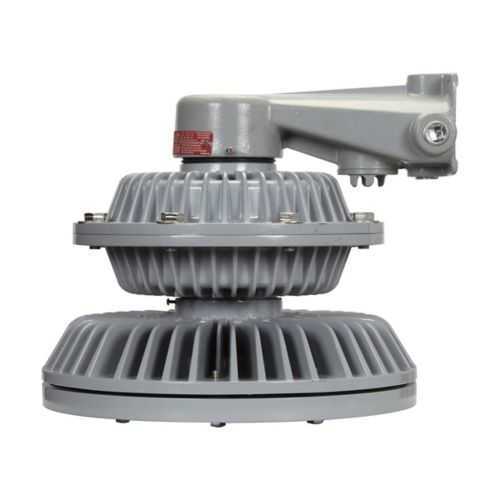

Eaton EVLLA13LCBX31-UNV1 LED Light - Hazardous IP66

Part Number: EVLLA13LCBX31-UNV1
EVLLA13LCBX31-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA13LCBX31-UNV1
Category

Quick Summary

EVLLA13LCBX31-UNV1 LED light fixture from Eaton Crouse-Hinds provides hazardous-location illumination for industrial plants. Operators struggle with fragile enclosures, frequent maintenance, and safety concerns in wet, dusty, or explosive environments. This luminaire offers IP66 protection, a NEMA 4X enclosure, and NEC Class I Division 1/II/III compliance, helping facilities meet stringent safety standards. By delivering energy-efficient illumination with a long service life and a dimmable driver, it reduces operating costs while enabling reliable visibility in demanding environments.

Product Information

Extended Description

EVLLA13LCBX31-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 13000 lumens, 100 lm/W, Copper-free aluminum, Wall mount, 1", 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCBX31-UNV1
Product Length/Depth
17.54 in
Product Height
14.9 in
Product Width
16.05 in
Product Weight
56 lb
UPC
662276992801
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Wall
Equivalent luminaire
320W-400W HID
Trade size
1"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Hazard-Gard EVLLA LED catalog page Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification IF 1913 - EVLLA Hazard-Gard LED Luminaire IF 1913 - EVLLA Hazard-Gard LED Luminaire Hazard-Gard EVLL LED Explosionproof Hazard-Gard EVLL LED Explosionproof
The EVLLA13LCBX31-UNV1 uses a high-output LED engine delivering 13,000 lumens at about 100 lm/W with a 130W input. This translates to energy savings vs 320-400W HID equivalents and a lower heat load in the work area, improving operator comfort and productivity in large spaces. In hazardous environments, the IP66 and NEMA 4X ratings, combined with a stainless steel guard and shatter-resistant lens, support rapid washdowns and long-term durability, reducing maintenance cycles and downtime. Copper-free aluminum housing provides corrosion resistance, while the 1" trade-size wall-mount design simplifies retrofits and new installations along walls and enclosures commonly found in process plants. A dimmable driver and PF > 0.90 enable precise illumination control, lowering peak demand and optimizing energy usage across shifts. The lens assembly—2 x 3/4" NPT metal threads and 1 x 3/4" Ex-d threaded plug—supports flexible mounting options and field serviceability. Overall, this fixture delivers HID-equivalent performance with modern LED efficiency, ideal for hazardous-location lighting programs in mining, chemical processing, and petrochemical facilities.

Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCBX31-UNV1

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLLA13LCBX31-UNV1? Enquire Now

FAQs

Installation is designed for hazardous environments with a wall-mount configuration and a 1" trade size accessory. It uses a copper-free aluminum housing, stainless steel guard, and shatter-resistant lens for washdowns and impact resistance. The Ex-d threaded plug and two 3/4" lens mounting options allow flexible field mounting, while a dimmable driver simplifies integration with existing controls.
The luminaire outputs 13,000 lumens at approximately 100 lumens per watt from a 130W driver, with a Cool White color temperature. It operates on 120-277 VAC at 50/60 Hz and achieves PF > 0.90. It is IP66 and NEMA 4X rated, aligning with hazardous-location standards and enabling safe operation in demanding industrial settings.
Yes. The fixture is designed for Hazardous/Classified Locations with NEC/CEC compliance and Class I, Division 1 suitability. Its rugged construction, IP66 ingress protection, and hazardous-location certifications make it appropriate for oil & gas, chemical processing, and other high-risk industrial facilities.
Key advantages include wall mounting with a 1" trade size, a durable copper-free aluminum housing, a stainless steel guard, and a shatter-resistant lens for reliable operation in dirty or washdown environments. The dimmable driver and 120-277 VAC input provide flexible integration with existing electrical systems and control schemes.
Compared with HID equivalents, the EVLLA13LCBX31-UNV1 delivers HID-equivalent performance at 130W with 13,000 lumens and better energy efficiency (about 100 lm/W). LED longevity reduces maintenance intervals, while dimming and high PF lower energy costs and peak demand, leading to lower total cost of ownership in hazardous-location facilities.
