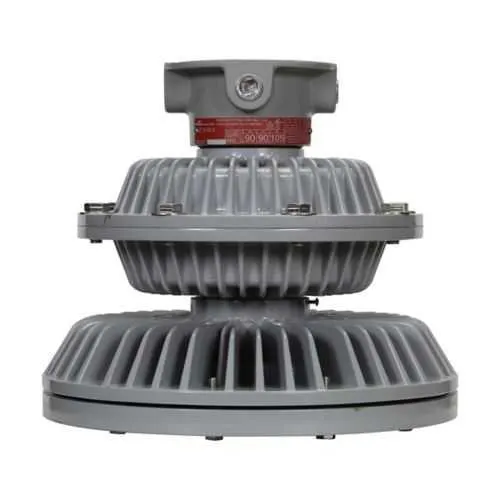

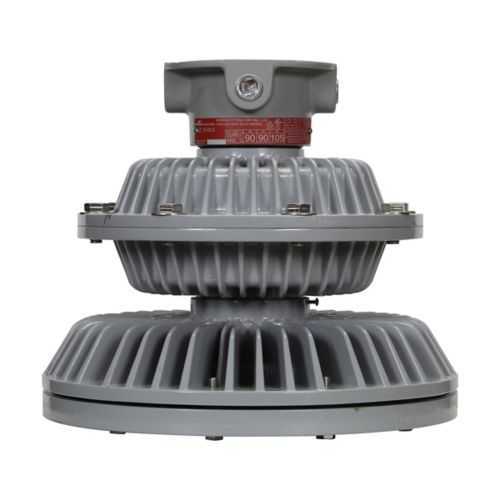

Eaton Crouse-Hinds EVLLA13LCCX21-UNV34 LED light fixture - IP66
Part Number: EVLLA13LCCX21-UNV34
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA13LCCX21-UNV34
Category
Quick Summary
EVLLA13LCCX21-UNV34 is an LED light fixture for hazardous locations in industrial facilities. In harsh environments, maintenance cycles, corrosion, and downtime erode productivity; this fixture addresses those pains with a rugged stainless steel guard and copper-free aluminum housing designed for long life. Certified for Hazardous/Classified Locations (Class I, Division 1; Class II, Division 1; Class III), IP66 ingress protection, and NEMA 4X enclosures, it helps facilities stay compliant. Its dimmable driver and cool white output deliver energy efficiency across ceiling-mounted layouts, supporting reliable illumination with lower operating costs.
Product Information
Extended Description
EVLLA13LCCX21-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 13000 lumens, 100 lm/W, Copper-free aluminum, Ceiling mount, 3/4", 347-480 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCCX21-UNV34
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
56.5 lb
UPC
662276992245
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
320W-400W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
Stainless steel
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Stainless steel guard and copper-free aluminum housing deliver corrosion resistance and rugged durability. This translates to longer service life, reduced maintenance, and lower lifecycle costs in harsh industrial settings. Perfect for washdown zones, chemical plants, and offshore rigs where exposure to moisture and chemicals is routine. IP66 protection and a NEMA 4X enclosure guard against water, dust, and corrosion, ensuring reliable operation during cleaning cycles and in corrosive environments. The result is fewer field repairs and less downtime in critical areas like process bays and hazardous zones. The 13000-lumen output at 100 lm/W provides bright, high-contrast illumination for large workspaces, while a dimmable driver enables integration with existing controls and energy-management strategies. Designed for 347-480 VAC, it simplifies electrical design and reduces inventory variety. With a ceiling-mount configuration and a 16.32 by 16.32-inch footprint, installation is straightforward in retrofit projects and new facilities. All materials—copper-free aluminum, stainless steel guard, and robust lens assembly—support long service life in demanding environments, helping operators meet safety and productivity targets.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCCX21-UNV34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LCCX21-UNV34?
Enquire Now
FAQs
EVLLA13LCCX21-UNV34 is a ceiling-mounted LED luminaire with a robust hazard-rated design and 347-480 VAC input. It is not a drop-in HID retrofit for every enclosure; installation requires appropriate hazard-rated mounting and electrical connections per NEC/CEC. Use 2 x 3/4" NPT lens mounting and Ex-d threaded provisions as specified, ensuring enclosure and wiring are compliant for Class I Division 1 environments.
The EVLLA13LCCX21-UNV34 delivers 13000 lumens with an efficacy of 100 lumens per watt. It draws 130W and offers a power factor greater than 0.90. It operates at 50/60 Hz and provides a cool white output, suitable for high-precision industrial tasks while minimizing energy waste in hazardous locations.
Industries such as chemical processing, oil and gas, mining, and water treatment gain from EVLLA13LCCX21-UNV34 due to its Hazardous/Classified Location ratings, IP66/NEMA 4X protection, and corrosion-resistant copper-free aluminum housing. Its high output and dimmable driver support large-area illumination in challenging environments where safety and reliability are critical.
The fixture is certified for Hazardous/Classified Locations (Class I Division 1, Class II Division 1, Class III) with IP66 protection and NEMA 4X enclosure. It adheres to NEC/CEC standards and is supported by UL certification documents and DLC literature, aligning with regulatory requirements for industrial hazardous environments.
Low maintenance is expected due to a rugged, corrosion-resistant build and long LED life. Energy savings come from 130W consumption at 13000 lumens with 100 lm/W efficacy and a dimmable driver, enabling occupancy and daylight controls. Over time, this reduces downtime, lowers utility costs, and improves total cost of ownership in hazardous-area facilities.
