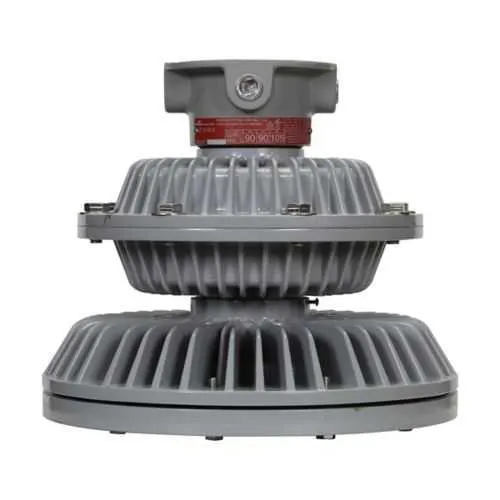

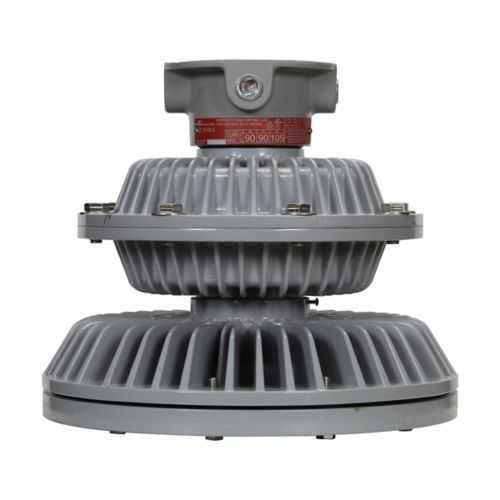

Eaton Crouse-Hinds EVLLA13LCCX30-UNV1 LED light fixture - IP66
Part Number: EVLLA13LCCX30-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA13LCCX30-UNV1
Category
Quick Summary
The Eaton Crouse-Hinds EVLLA LED light fixture provides hazardous-location illumination for industrial facilities. Engineers often struggle with equipment that fails in harsh environments marked by dust, moisture, and ignition risks. This luminaire carries IP66 protection, NEMA 4X enclosure, and NEC/CEC compliance for Class I Division 1, Class II Division 1, and Class III areas, ensuring safety and regulatory alignment. With a dimmable driver, HID-equivalent output, and long life, it delivers energy efficiency and reduced maintenance, making it a practical choice for ceiling-mounted hazardous-location lighting projects and retrofit programs in demanding industrial settings.
Product Information
Extended Description
EVLLA13LCCX30-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equivalent, No guard, Shatter-resistant glass lens, 13000 lumens, 100 lm/W, Copper-free aluminum, Ceiling mount, 1", 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCCX30-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
56.5 lb
UPC
662276993228
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
320W-400W HID
Trade size
1"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
High lumen output with efficient performance translates to fewer fixtures and lower energy costs, while maintaining bright, consistent illumination in high-ceiling facilities. Feature → Business Impact → Application: 13000 lumens at 100 lm/W improves site visibility and operator safety, reducing fixture counts and energy spend in warehouses and processing plants. Feature → Business Impact → Application: IP66 and NEMA 4X ratings deliver robust protection against dust, water, and corrosion, supporting reliable operation in chemical plants and offshore-like environments. Feature → Business Impact → Application: Copper-free aluminum housing and shatter-resistant glass lens provide durability against vibration and impact, ideal for manufacturing floors and heavy-duty environments where equipment is subject to daily wear. Feature → Business Impact → Application: Dimmable driver with 120-277 VAC input and 50/60 Hz compatibility enables flexible installation and seamless integration with existing controls, lowering retrofit risk and upfront wiring costs. Feature → Business Impact → Application: HID-equivalent performance (320W-400W HID) at 130W across a cool white spectrum ensures familiar light quality with long lifecycle, reducing maintenance and ballast-related downtime. Feature → Business Impact → Application: Ceiling mounting and 1" trade size simplify installation in constrained ceilings and retrofit scenarios, enabling faster deployment and standardized mounting across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCCX30-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LCCX30-UNV1?
Enquire Now
FAQs
When deploying the EVLLA13LCCX30-UNV1, plan for ceiling mounting with a 1" trade size and ensure compatibility with 120-277 VAC supply. The unit is designed for hazardous(Location) areas and Class I, II, and III divisions, so install in accordance with NEC/CEC guidelines and use appropriate conduit, wiring methods, and seals to maintain IP66/NEMA 4X protection.
Key specs include 13000 lumens output, 100 lumens per watt efficacy, cool white color, 130W power, dimmable driver, 120-277 VAC input, and 50/60 Hz operation. It provides HID-equivalent illumination (320W-400W HID) in a rugged LED form suitable for high-bay and high-ceiling applications in hazardous locations.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC hazardous ratings including Class I Division 1, Class II Division 1, and Class III. It also carries IP66 and NEMA 4X protections, delivering safe, compliant operation in demanding chemical and industrial settings.
The EVLLA13LCCX30-UNV1 adheres to NEC/CEC standards, is certified for hazardous locations, and features IP66 and NEMA 4X ratings. It is supported by UL certification references and installation literature, including hazardous-location luminaire guidelines and EVLL catalog pages for compliance and performance verification.
LED technology in the EVLLA13LCCX30-UNV1 provides long life with 13000 lumens at 130W, offering energy savings and reduced maintenance compared with 320W-400W HID equivalents. The dimmable driver and rugged housing minimize downtime, while IP66/NEMA 4X protection lowers replacement risk in harsh environments, improving total cost of ownership over time.
