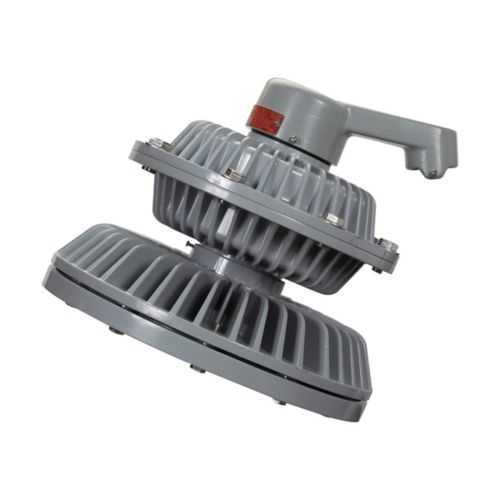

Eaton EVLLA13LCJ51-UNV1 LED Fixture - Hazardous Locations
Part Number: EVLLA13LCJ51-UNV1
Quick Summary
The Eaton EVLLA13LCJ51-UNV1 LED fixture delivers high-output, safe lighting for hazardous industrial locations. In demanding environments, glare, frequent maintenance, and unreliable lighting drive downtime and safety risks. This luminaire carries NEC/CEC hazardous location ratings, IP66 ingress protection, and a rugged NEMA 4X enclosure to ensure reliable operation in Class I, Division 1 spaces. By combining a dimmable driver with a copper-free aluminum housing, it reduces energy use while lowering maintenance costs. For oil and gas, chemical processing, and mining facilities, this LED fixture delivers compliant, long-lasting illumination with reduced total cost of ownership.
Product Information
Extended Description
EVLLA13LCJ51-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equiv, Stainless steel guard, Shatter-resistant glass lens, 13000 lm, 100 lm/W, Copper-free alum, Stanchion 25° angled mt, 1-1/2", 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCJ51-UNV1
Product Length/Depth
18.09 in
Product Height
16.05 in
Product Width
18.09 in
Product Weight
58.5 lb
UPC
662276990647
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Stanchion 25° angled
Equivalent luminaire
320W-400W HID
Trade size
1-1/2"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA13LCJ51-UNV1
Eaton Specification Sheet - EVLLA13LCJ51-UNV1
Feature: 13000 lumens at 100 lm/W with Cool white color. Business Impact: Bright, efficient illumination reduces energy consumption and improves visibility, lowering operator error risks in hazardous zones. Application: General hazardous-location area lighting in chemical plants and refineries. Feature: Dimmable driver and 120-277 VAC input. Business Impact: Flexible integration with control systems and existing electrical infrastructure, enabling smarter energy management. Application: Facility-wide lighting retrofits and new installations with lighting controls. Feature: IP66 and NEMA 4X construction with stainless steel guard. Business Impact: Superior protection against dust, water ingress, and corrosion, extending service life in harsh environments. Application: Outdoor, washdown, and chemical processing areas. Feature: Copper-free aluminum housing with shatter-resistant lens. Business Impact: Durable, low-maintenance enclosures that resist corrosion and UV exposure, reducing replacement cycles. Application: Offshore platforms and land-based hazardous locations. Feature: 25° angled stanchion mounting for easy installation on existing poles. Business Impact: Quick, reliable mounting with standard 1-1/2" trade size reduces installation time and downtime. Application: Pole-mounted systems in offshore and industrial yards. Feature: Compliance and certifications (Hazardous/Classified Locations, NEC/CEC, Class I, Division 1). Business Impact: Regulatory alignment minimizes risk of non-compliance penalties and streamlines procurement. Application: Plant and facility lighting programs needing verified hazardous-location luminaires.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCJ51-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LCJ51-UNV1?
Enquire Now
FAQs
This luminaire uses a 1-1/2" trade size stanchion with a 25° angled mounting arrangement, simplifying pole-based installations. The lens assembly employs 2 x 3/4" NPT metal threads and a 1 x 3/4" Ex-d threaded plug, allowing secure connection and ease of maintenance. Ensure compatibility with Class I, Division 1 wiring methods and follow relevant local electrical codes during retrofits or new builds.
The fixture delivers 13000 lumens with a 100 lm/W efficacy, in a cool white color temperature. It operates at 120–277 VAC with a 50/60 Hz frequency rating and uses a dimmable driver. The housing is copper-free aluminum, protected by a stainless steel guard and a shatter-resistant glass lens, all contributing to an IP66 and NEMA 4X protection profile.
Yes. The unit carries NEC/CEC standards for hazardous locations and is rated for Class I, Division 1 (as well as Class II and III per the specification), with IP66 ingress protection and a NEMA 4X enclosure. These features, combined with a robust guard and lens, make it appropriate for oil and gas, chemical processing, and other high-risk sites.
The EVLLA13LCJ51-UNV1 is listed for Hazardous/Classified Locations and aligns with NEC/CEC standards. It includes documentation such as UL-listed Canadian certifications and IEC/ASTM references in Eaton literature. Certifications are complemented by a data set that covers IP66, NEMA 4X, and a hazardous-rating for Class I, Division 1 installations.
LED technology provides longer life with lower energy consumption relative to HID equivalents, plus a dimmable driver that supports adaptive lighting schemes. The copper-free aluminum housing and shatter-resistant lens reduce corrosion-related maintenance, while installation on standard 1-1/2" stanchions minimizes downtimes during retrofits or upgrades. Access to installation and specification sheets further supports rapid commissioning and lifecycle planning.
