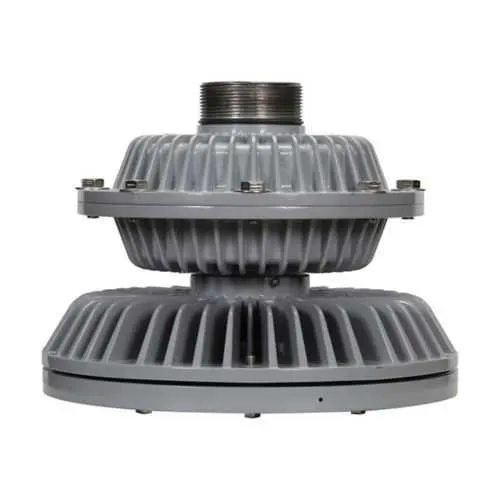

Eaton EVLLA13LCM1-UNV1 LED light fixture - IP66
Part Number: EVLLA13LCM1-UNV1
Quick Summary
EVLLA13LCM1-UNV1 is a Hazard-Gard LED light fixture designed for hazardous locations in industrial plants. Maintenance teams face brittle glass, corrosion, and costly downtime in challenging environments. Key certifications like NEC/CEC compliance, IP66 ingress protection, and NEMA 4X ruggedness support safe, compliant operation. As a durable, dimmable LED solution, EVLLA13LCM1-UNV1 helps reduce energy spend and maintenance cycles while delivering reliable illumination in demanding locations for improved safety and uptime.
Product Information
Extended Description
EVLLA13LCM1-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 320W-400W HID equiv, Stainless steel guard, Shatter-resistant glass lens, 13000 lumens, 100 lm/W, Copper-free aluminum, Mounting module adapter, 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LCM1-UNV1
Product Length/Depth
15.9 in
Product Height
11.97 in
Product Width
15.9 in
Product Weight
55 lb
UPC
662276990593
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Cool white
Mounting Method
Mounting module adapter
Equivalent luminaire
320W-400W HID
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA13LCM1-UNV1
Eaton Specification Sheet - EVLLA13LCM1-UNV1
High-output LED efficiency translates to tangible energy savings and a lower total cost of ownership, with 13000 lumens at 100 lm/W and a 130W driver. Feature → Business Impact → Application: The 13000-lumen output reduces the number of fixtures needed for a given area, lowering installation and wiring costs in large hazardous zones such as chemical plants and mining facilities. Feature → Application → Benefits: The cool white light improves inspection accuracy and worker safety in hazardous-location lighting applications, while the dimmable driver enables precise control to match process needs and seasonal variations. Feature → Compatibility → Installation: 120-277 VAC, 50/60 Hz input with a mounting module adapter supports flexible integration into existing electrical runs and retrofit projects, minimizing downtime during upgrades. Feature → Durability → Reliability: Stainless steel guard and shatter-resistant lens withstand washdowns and corrosive environments, delivering long service life in Class I, Division 1 settings and offshore facilities. Feature → Compliance → Risk reduction: IP66 and NEMA 4X enclosure provide robust protection against dust, water, and corrosive exposure, ensuring continued operation in severe conditions while meeting NEC/CEC requirements.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LCM1-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LCM1-UNV1?
Enquire Now
FAQs
EVLLA13LCM1-UNV1 is designed for hazardous-area installations using a mounting module adapter and standard 120-277 VAC supply. To install, select an appropriate mounting location, ensure proper clearance for the 15.9 in length and 11.97 in height, connect to a compliant power source, and secure with approved hardware. Follow Eaton’s IF1913/IF1914 instruction sheets for driver replacement and wiring guidance to maintain hazardous-location integrity and maintain NEC/CEC compliance.
This luminaire carries NEC Class I, Division 1 and Class II, Division 1 ratings with Class III support, IP66 ingress protection, and a NEMA 4X enclosure. It also uses a stainless steel guard and shatter-resistant lens, making it suitable for washdown and corrosive environments, while meeting robust industry standards for Hazardous/Classified Locations.
The EVLLA13LCM1-UNV1 operates at 120-277 VAC with 50/60 Hz and delivers 130W of power for an output of 13,000 lumens at over 0.90 power factor. This enables a direct or retrofit upgrade from 320W-400W HID equivalents, reducing energy use and heat load while preserving light levels in large hazardous-area spaces.
LED technology provides extended life with fewer lamp replacements, a dimmable driver option for load management, and a rugged build (stainless guard, shatter-resistant lens) that resists damage in harsh environments. Access to the installation and driver-replacement documentation (IF sheets) helps minimize downtime during maintenance and ensures ongoing compliance.
Official resources include the Eaton Specification Sheet EVLLA13LCM1-UNV1, hazard-gard LED catalog pages, UL certification reports, and installation instruction sheets IF 1913/IF 1914. These assets, along with datasheets and brochures, provide installation guidance, compliance details, and performance data for procurement and engineering teams.
