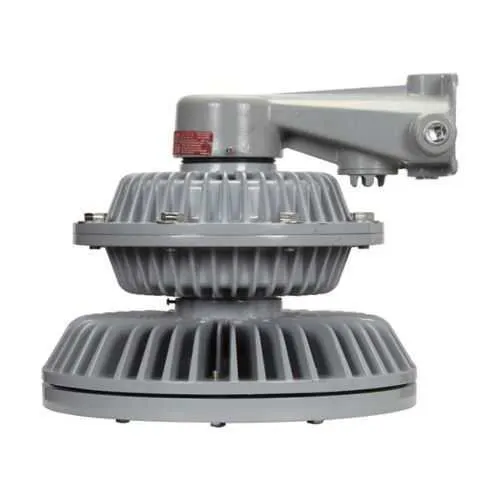

Eaton EVLLA13LWBX31-UNV1 LED Light Fixture - IP66
Part Number: EVLLA13LWBX31-UNV1
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA13LWBX31-UNV1
Category
Quick Summary
The EVLLA13LWBX31-UNV1 LED light fixture provides high-output hazard-location lighting for industrial facilities. In harsh environments, operators face unreliable illumination and frequent maintenance that threaten uptime. This fixture delivers IP66, NEMA 4X, and NEC/CEC Hazardous Locations certifications (Class I, Division 1), offering rugged compliance. Wall-mounted with a dimmable driver and copper-free aluminum housing, it enables efficient, code-compliant operation in demanding plants while reducing maintenance cycles and total cost of ownership.
Product Information
Extended Description
EVLLA13LWBX31-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 320W-400W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 13000 lumens, 100 lm/W, Copper-free aluminum, Wall mount, 1", 120-277 Vac, 130W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA13LWBX31-UNV1
Product Length/Depth
17.54 in
Product Height
14.9 in
Product Width
16.05 in
Product Weight
56 lb
UPC
662276993242
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
13000
Lumens per watt
100
Color temperature
Warm white
Mounting Method
Wall
Equivalent luminaire
320W-400W HID
Trade size
1"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
130W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Feature: High-output LED performance delivers 13,000 lumens at about 100 lm/W, enabling fewer fixtures for the same area and lower energy use. Business impact: reduces capital and operational costs while maintaining excellent visibility for critical tasks. Application: suited for warehouses, petrochemical plants, and processing lines where high-intensity lighting is essential. Feature: Rugged protection with IP66 and NEMA 4X housing provides superb ingress protection against dust, water jets, and corrosion. Business impact: minimizes unscheduled downtime, simplifies washdown cleaning, and extends service intervals. Application: outdoor installations, washdown zones, and live process areas in harsh environments. Feature: Hazardous Locations compliance with Class I, Division 1 NEC/CEC ensures safe operation in explosive atmospheres. Business impact: streamlines regulatory approvals and reduces risk exposure for operators and maintenance crews. Application: oil, gas, chemical, and mining facilities requiring certified lighting. Feature: Dimmable driver with 120–277 VAC operation supports flexible control strategies and energy savings. Business impact: enables seamless integration with existing lighting controls and occupancy sensors. Application: plant corridors, workstations, and critical equipment bays where lighting must adapt to activity. Feature: Copper-free aluminum housing, stainless steel guard, and shatter-resistant lens provide durable protection in corrosive environments. Business impact: lowers replacement costs and enhances safety for personnel. Application: refinery, chemical processing, and offshore installations where corrosion resistance matters. Feature: Wall-mount design with 1" trade size and precise dimensions (17.54 in L, 14.9 in H, 16.05 in W) simplifies retrofit projects. Business impact: reduces installation time and compatibility concerns with existing supports. Application: retrofit of legacy HID systems and new hazardous-area lighting upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA13LWBX31-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA13LWBX31-UNV1?
Enquire Now
FAQs
EVLLA13LWBX31-UNV1 is designed for wall mounting with a 1" trade size, simplifying retrofit projects. It operates on 120–277 VAC and features a dimmable driver for compatibility with common lighting controls. Its 17.54 in length, 14.9 in height, and 16.05 in width support straightforward installation in constrained hazardous-area enclosures while meeting Class I Division 1 requirements.
This LED luminaire delivers about 13,000 lumens at roughly 100 lm/W with a 130W draw, offering significant energy savings versus traditional 320–400W HID systems. The higher efficacy reduces energy costs, lowers heat load, and extends service intervals, all while maintaining equivalent or better brightness for critical process areas.
Yes. The fixture is certified for Hazardous/Classified Locations with Class I, Division 1 NEC/CEC ratings, IP66 ingress protection, and a NEMA 4X enclosure. These specs ensure safe operation in explosive atmospheres and harsh environments typical of chemical processing, refineries, and upstream/downstream oil & gas facilities.
The unit meets NEC/CEC hazardous-location standards, Class I Division 1, and Class II/III equivalents, with IP66 protection and NEMA 4X rating. It is designed for Hazardous Locations and Classified Locations, providing robust compliance for installations in chemical, petrochemical, and mining environments.
A copper-free aluminum housing, stainless steel guard, and shatter-resistant lens reduce corrosion risk and component replacement needs. The long LED life, dimmable driver, and high efficiency lower energy bills and maintenance cycles, delivering a favorable return on investment in hazardous-area operations where uptime matters.
