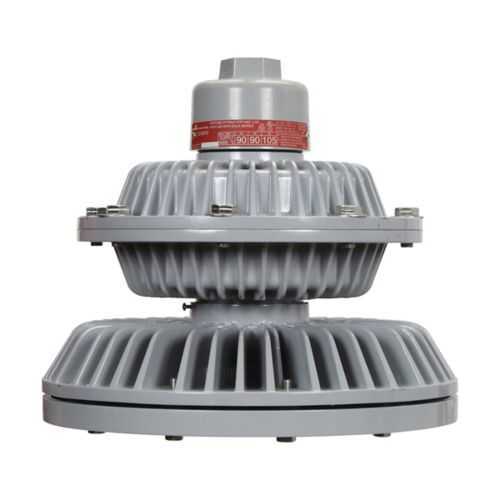

Eaton EVLLA5LCA21-UNV1 LED Light Fixture - IP66 4X
Part Number: EVLLA5LCA21-UNV1
Quick Summary
EVLLA LED light fixture excels at hazardous-location illumination for industrial facilities. In harsh environments, traditional luminaires can fail prematurely due to vibration, dust ingress, or glass breakage, leading to costly downtime. This luminaire is built to last with a stainless steel guard, shatter-resistant lens, IP66 rating, and NEMA 4X enclosure, designed for Hazardous and Classified Locations. It carries NEC hazardous ratings for Class I, Division 1, Class II, Division 1, and Class III, ensuring regulatory compliance in oil, gas, chemical, and mining applications. With pendant mounting and a copper-free aluminum body, the EVLLA provides energy efficiency (59W, 5000 lm, 105 lm/W) and easy retrofit alongside dimmable drivers for field adjustability.
Product Information
Extended Description
EVLLA5LCA21-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 100W-150W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 5000 lumens, 105 lm/W, Copper-free aluminum, Pendant mount, 3/4", 120-277 Vac, 59W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA5LCA21-UNV1
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
53.76 lb
UPC
662276990609
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
105
Color temperature
Cool white
Mounting Method
Pendant
Equivalent luminaire
100W-150W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
59W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Eaton Specification Sheet - EVLLA5LCA21-UNV1
Eaton Specification Sheet - EVLLA5LCA21-UNV1
Feature: Robust protection with a stainless steel guard and shatter-resistant lens. Business Impact: Reduces lens breakage and lens-related maintenance costs in harsh environments. Application: Ideal for chemical plants and oil refineries where impact resistance is critical. Feature: High-lumen output of 5000 lumens at 105 lm/W. Business Impact: Delivers bright, wide-area illumination while consuming less power, improving overall site visibility and safety. Application: Spill containment areas, loading docks, and process rooms requiring reliable visibility. Feature: IP66 and NEMA 4X enclosure. Business Impact: Enables operation in wet, dusty, and washdown environments without compromising performance. Application: Offshore platforms, mining operations, and chemical processing facilities. Feature: Copper-free aluminum housing with stainless guard. Business Impact: Reduces corrosion risk and maintenance downtime in corrosive atmospheres. Application: Hazardous Locations with aggressive environments. Feature: Pendant mounting with 3/4" NPT threads. Business Impact: Simplifies installation and retrofits in existing pendant systems, lowering installation costs. Application: Plant ceilings and overhead fixtures across industrial spaces. Feature: Dimmable driver and wide voltage range 120-277 Vac. Business Impact: Offers controllability for varying workflows and reduces energy use through lighting controls. Application: Facilities with variable lighting needs and sensor-based systems. Feature: 59W power draw. Business Impact: Energy efficiency translates to lower operating costs and improved CO2 footprint. Application: Any continuous-operation hazardous-location site needing reliable illumination.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA5LCA21-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA5LCA21-UNV1?
Enquire Now
FAQs
The EVLLA5LCA21-UNV1 is designed for pendant mounting using 3/4" NPT threads, allowing straightforward installation from ceilings or overhead structures and easy integration with existing pendant systems.
Yes. It is rated for Hazardous/Classified Locations with NEC Class I, Division 1, Class II, Division 1, and Class III ratings, and features IP66 protection with a NEMA 4X enclosure to meet stringent industrial safety standards.
The EVLLA5LCA21-UNV1 delivers 5000 lumens at 105 lumens per watt, using a 59W LED driver, providing bright, energy-efficient illumination suitable for demanding environments.
The unit operates over 120-277 VAC with a dimmable driver, offering compatibility with standard building controls and sensor-based systems for flexible lighting management.
A stainless steel guard and shatter-resistant lens protect internal optics, while copper-free aluminum construction reduces corrosion risk, lowering maintenance and replacement frequency in harsh environments.
