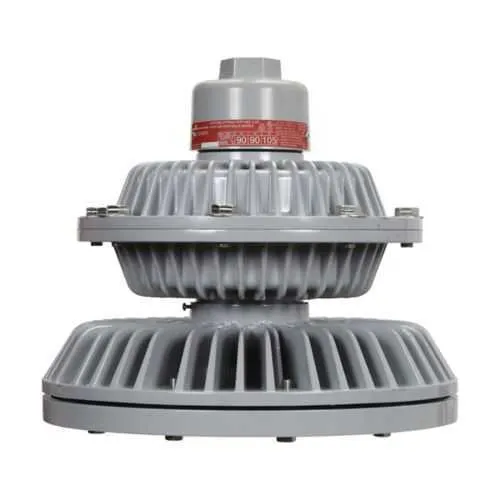

Eaton Crouse-Hinds EVLLA5LWA21-UNV1 LED Light Fixture - IP66
Part Number: EVLLA5LWA30-UNV1
Quick Summary
The Eaton Crouse-Hinds Hazard-Gard EVLLA LED light fixture delivers reliable, explosion-proof illumination for hazardous locations. When operating in tough environments, unreliable lighting can slow repairs and compromise safety. This luminaire carries NEC/CEC compliance with hazardous-location ratings and robust IP66/NEMA 4X protection, ensuring dependable performance in Class I, Division 1 and other classified areas. Designed for pendant mounting with a warm white output, it delivers high lumen density (5000 lm) at just 59 W, helping facilities reduce energy use while extending maintenance intervals. For engineers seeking safer, code-compliant illumination that scales with retrofit projects and ongoing operations, EVLLA5LWA21-UNV1 provides a proven, long-life solution with straightforward installation.
Product Information
Extended Description
EVLLA5LWA30-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 100W-150W HID equivalent, No guard, Shatter-resistant glass lens, 5000 lumens, 105 lm/W, Copper-free aluminum, Pendant mount, 1", 120-277 Vac, 59W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA5LWA30-UNV1
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
53.76 lb
UPC
662276991316
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
105
Color temperature
Warm white
Mounting Method
Pendant
Equivalent luminaire
100W-150W HID
Trade size
1"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
59W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA5LWA30-UNV1
Eaton Specification Sheet - EVLLA5LWA30-UNV1
Feature: Hazardous-location LED luminaire is engineered for Class I, Division 1 and other classified areas → Business Impact: meets strict safety codes and reduces risk during maintenance → Application: chemical plants, refineries, and mining sites. Feature: 5000 lumens at 59 W with 105 lm/W efficiency → Business Impact: lower energy consumption and operating costs while delivering bright, uniform visibility → Application: production lines and hazardous-area work zones. Feature: IP66 and NEMA 4X enclosure with stainless steel guard → Business Impact: enhanced ingress protection and corrosion resistance for tough environments → Application: outdoor, washdown, and acid-prone settings. Feature: Dimmable driver and wide voltage range 120-277 Vac → Business Impact: installation flexibility and reduced wiring complexity, enabling phased retrofits → Application: multi-zone facilities and retrofit projects. Feature: Pendant mounting, copper-free aluminum housing, and shatter-resistant lens → Business Impact: easy installation and durable, long-term maintenance planning → Application: duct banks, offshore platforms, and chemical plants. Certification and compliance: NEC/CEC aligned with Hazardous Locations ratings and UL certification support compliance for automated facilities, while the 5000 lm output meets demanding visibility requirements in high-risk zones.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA5LWA30-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA5LWA30-UNV1?
Enquire Now
FAQs
The EVLLA5LWA21-UNV1 is designed for pendant mounting in Class I, Division 1 environments with a 120-277 Vac input and a dimmable driver. Follow the IF 1913/IF 1914 instruction sheets for driver replacement and ensure proper sealing against dust and water ingress per IP66/NEMA 4X guidelines. Use appropriate explosion-protection-rated cables and connectors during retrofit.
Key specs include 5000 lumens at 59 watts with a color temperature described as warm white and an efficiency of 105 lm/W. It operates on a 120-277 Vac range with a power factor above 0.90 and a dimmable driver. Frequency rating is 50/60 Hz, making it suitable for diverse industrial power systems and retrofit projects.
Yes. The luminaire is rated for Hazardous/Classified Locations with NEC/CEC compliance, Class I, Division 1 protection, and a NEMA 4X enclosure. Its IP66 rating provides excellent ingress protection, making it appropriate for high-risk industrial areas such as chemical processing and oil & gas facilities.
The EVLLA5LWA21-UNV1 carries NEC/CEC compliance for hazardous locations, UL certification for hazardous-locations luminaires, and IP66 with NEMA 4X protection. It is documented in various Eaton literature and UL reports, ensuring regulatory alignment for global industrial installations.
LED longevity and high efficiency translate to lower maintenance cycles and reduced energy costs over time. The dimmable driver supports controlled illumination, enabling further savings. The rugged housing, stainless guard, and shatter-resistant lens minimize replacement parts in harsh environments, contributing to a favorable total cost of ownership in hazardous-location facilities.
