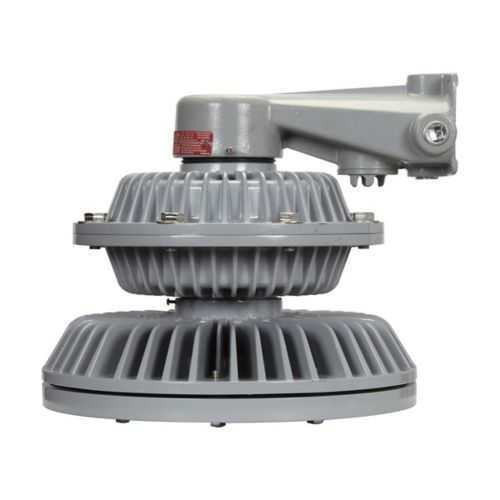

Eaton EVLLA5LWBX30-UNV1 LED light fixture - IP66
Part Number: EVLLA5LWBX30-UNV1
Quick Summary
The EVLLA LED light fixture delivers reliable, high-efficiency illumination for hazardous industrial spaces. In challenging environments, downtime and maintenance costs erode safety and productivity. This luminaire is designed to meet NEC/CEC standards and hazardous-location ratings, featuring IP66 ingress protection and a NEMA 4X enclosure for rugged service. With wall-mount installation and a dimmable driver, it supports flexible lighting control while reducing operating costs. By combining copper-free aluminum construction with a shatter-resistant lens, the EVLLA delivers long service life in corrosive or dusty atmospheres. This makes it a practical choice for plants, refineries, and chemical processing facilities seeking compliant, energy-efficient hazardous-location lighting that minimizes total cost of ownership.
Product Information
Extended Description
EVLLA5LWBX30-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 100W-150W HID equivalent, No guard, Shatter-resistant glass lens, 5000 lumens, 105 lm/W, Copper-free aluminum, Wall mount, 1", 120-277 Vac, 59W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA5LWBX30-UNV1
Product Length/Depth
17.54 in
Product Height
14.9 in
Product Width
16.05 in
Product Weight
54.76 lb
UPC
662276991361
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
105
Color temperature
Warm white
Mounting Method
Wall
Equivalent luminaire
100W-150W HID
Trade size
1"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
59W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA5LWBX30-UNV1
Eaton Specification Sheet - EVLLA5LWBX30-UNV1
High brightness and efficiency translate to lower energy costs and fewer fixtures needed to achieve required lux levels in demanding spaces. The EVLLA’s 5000 lumens at 105 lm/W and 59W power provide strong illumination with minimal energy waste, ideal for large manufacturing floors and process areas. A dimmable driver enables zone control and gradual illumination changes, reducing glare and extending equipment life in sensitive environments. The copper-free aluminum housing, shatter-resistant lens, and IP66/NEMA 4X enclosure deliver durable protection against dust, water, and corrosive atmospheres, lowering maintenance costs and downtime. Wall-mount mounting and a 1" trade size simplify retrofits and new installations, while 120-277Vac operation and 50/60 Hz compatibility align with standard industrial power systems. NEC/CEC compliance and hazardous-location ratings ease regulatory approval and onsite commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA5LWBX30-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA5LWBX30-UNV1?
Enquire Now
FAQs
When installing EVLLA5LWBX30-UNV1 in hazardous locations, mount on a secure wall using compatible hardware. The unit is rated for Class I, Division 1 and Class II, Division 1, with IP66 and NEMA 4X protection, so seal penetrations and cable entries accordingly. The 1 inch trade size, 120-277 Vac supply, and dimmable driver provide flexible integration with existing distribution systems and control schemes.
Key specs include 5000 lumens output at 105 lm/W, warm white color, 59W, 120-277 Vac, 50/60 Hz, PF > 0.90, and a dimmable driver. This combination supports reliable, energy-efficient performance and compatibility with standard industrial lighting circuits while maintaining luminous efficacy in hazardous spaces.
Yes. EVLLA5LWBX30-UNV1 is certified for NEC/CEC hazardous locations with Class I, Division 1 and Class II, Division 1, as well as Class III. The IP66 ingress protection and NEMA 4X enclosure guard against dust, water, and corrosive atmospheres, making it suitable for chemical plants, refineries, and other demanding environments.
The luminaire carries NEC/CEC compliance with hazardous location ratings and IP66 ingress protection, plus a NEMA 4X enclosure. This combination supports safe operation in hazardous environments. Additional Canadian and UL references are associated with the listed Hazardous Location certifications, while the copper-free aluminum housing and shatter-resistant lens enhance durability.
Switching to EVLLA reduces maintenance cycles due to durable construction and long-life LEDs, while the bright 5000 lumen output enables fewer fixtures for the same lighting level. The dimmable driver and high power factor lower energy costs, and the rugged build minimizes downtime in harsh environments, delivering a favorable total cost of ownership over traditional HID equivalents.
