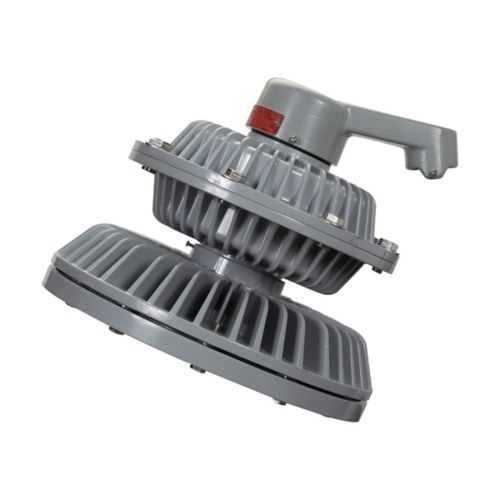

Eaton EVLLA5LWCX31-UNV1 Hazard-Gard LED Light - IP66
Part Number: EVLLA5LWJ20-UNV1
Quick Summary
EVLLA5LWCX31-UNV1 is an explosion-proof LED light fixture designed for Hazardous/Classified locations in industrial facilities. In harsh environments, maintenance-heavy HID systems fail at inopportune times; this fixture delivers long life, low maintenance, and safe operation. With IP66, NEMA 4X, and NEC/CEC classifications for Class I, Division 1, it meets core industrial safety standards. Its 5000 lumens at 105 lm/W warm-white output, 59W driver, and dimmable capability reduce energy costs while improving visibility. The rugged copper-free aluminum housing and stainless-steel guard stand up to washdown and corrosive environments, making it a dependable choice for hazardous-area illumination and energy-efficient lighting deployments.
Product Information
Extended Description
EVLLA5LWJ20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 100W-150W HID equivalent, No guard, Shatter-resistant glass lens, 5000 lumens, 105 lm/W, Copper-free aluminum, Stanchion 25° angled mount, 1-1/2", 120-277 Vac, 59W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA5LWJ20-UNV1
Product Length/Depth
18.09 in
Product Height
16.05 in
Product Width
18.09 in
Product Weight
57.26 lb
UPC
662276991422
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
105
Color temperature
Warm white
Mounting Method
Stanchion 25° angled
Equivalent luminaire
100W-150W HID
Trade size
1-1/2"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
59W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Feature: Explosion-proof LED luminaire for Hazardous/Classified Locations → Business Impact: Enables compliant, safer operation in environments with flammable atmospheres, reducing risk and downtime → Application: Petrochemical plants, refineries, and chemical processing facilities. Feature: IP66 and NEMA 4X protection → Business Impact: Maintains performance in washdown and dusty environments, lowering maintenance cycles and replacement risk → Application: Marine terminals, chemical plants, and mining sites. Feature: 5000 lumens at 105 lm/W with 59W drive → Business Impact: High efficacy lighting that lowers energy costs while delivering bright visibility for workers → Application: General area and task lighting in hazardous zones. Feature: 120-277 VAC, 50/60 Hz with dimmable driver → Business Impact: Flexible integration with existing controls and energy-management strategies, improving occupancy-based lighting and reducing peak demand → Application: Facility-wide retrofits and new installations using standard electrical infrastructure. Feature: Copper-free aluminum housing and stainless steel guard → Business Impact: Superior corrosion resistance and 긴 service life in harsh environments, reducing lifecycle costs → Application: Washdown areas and coastal or corrosive facilities. Feature: Ceiling mounting with 1" trade size and reinforced lens threads → Business Impact: Simple, robust installation with versatile lens access for maintenance and inspection → Application: Ceiling-lit hazardous work zones with easy replacement of components.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA5LWJ20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA5LWJ20-UNV1?
Enquire Now
FAQs
EVLLA5LWCX31-UNV1 operates from 120-277 VAC at 50/60 Hz and includes a dimmable driver, enabling integration with standard control systems and energy management strategies. Its ceiling mount and 1" trade size simplify retrofits and new installations in hazardous locations while maintaining compliance with NEC/CEC standards.
The EVLLA5LWCX31-UNV1 delivers 5000 lumens at a luminous efficacy of 105 lm/W from a 59W LED driver. This combination provides bright, high-contrast illumination with reduced energy consumption compared with traditional HID equivalents, improving visibility and safety in hazardous work zones.
Yes. The EVLLA is rated for Hazardous/Classified Locations with NEC/CEC compliance, Class I, Division 1 protection, IP66 ingress protection, and NEMA 4X enclosure integrity. Its rugged materials and explosion-proof design make it appropriate for chemical, petrochemical, and oil & gas environments requiring reliable hazardous-location lighting.
EVLLA5LWCX31-UNV1 complies with NEC/CEC standards for hazardous locations, is IP66 rated, and carries a NEMA 4X enclosure. It is suitable for Class I, Division 1 locations and is designed for use in Hazardous/Classified Locations, providing regulatory confidence for industrial facilities.
LED-based EVLLA lighting provides long life with low maintenance, reducing lamp replacements and downtime. The shatter-resistant lens, copper-free aluminum housing, and stainless steel guard resist corrosion, while a dimmable driver and high power factor support energy-management initiatives, contributing to lower total cost of ownership in hazardous environments.
