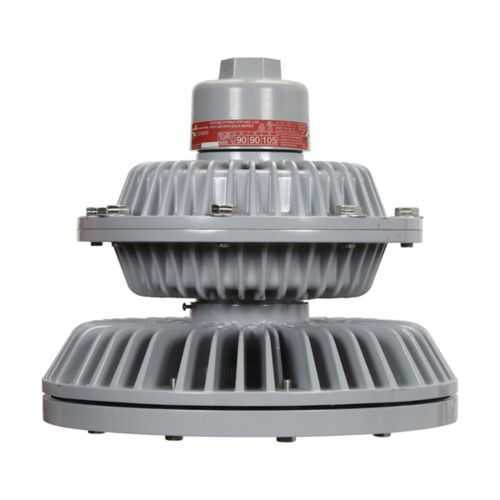

Eaton EVLLA7LCA31-UNV1 Hazard-Gard LED light fixture - IP66
Part Number: EVLLA7LCA31-UNV1
Quick Summary
EVLLA7LCA31-UNV1 is a hazardous-location LED light fixture designed for safe, reliable illumination in demanding industrial environments. When maintenance in aggressive areas is costly and downtime is unacceptable, this unit's rugged build and long-life help minimize outages and replacement cycles. It meets NEC/CEC standards and offers IP66 ingress protection, a NEMA 4X enclosure, and Class I, Division 1 suitability, giving engineers confidence in compliance and performance. The pendant-mount design and 1" trade size support flexible installation, while 120-277 VAC operation and a dimmable driver deliver efficient lighting with minimal energy waste. This results in lower total cost of ownership and safer work environments.
Product Information
Extended Description
EVLLA7LCA31-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 150W-175W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free aluminum, Pendant mount, 1", 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LCA31-UNV1
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
53.81 lb
UPC
662276992849
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Cool white
Mounting Method
Pendant
Equivalent luminaire
150W-175W HID
Trade size
1"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
7000 lumens at 110 lm/W from a 69W input delivers bright, energy-efficient illumination with excellent visibility on busy floors. Fewer fixtures are needed to cover the same area, reducing capital costs and simplifying maintenance planning. The result is higher productivity and safer operations in demanding environments. IP66 ingress protection, a NEMA 4X enclosure, and a Class I, Division 1 rating ensure safe operation in wet, dusty, or potentially explosive environments. This rugged protection supports chemical plants, refineries, mining sites, and offshore platforms where reliability matters and downtime is costly. Pendant mounting with a 1" trade size provides flexible, overhead installation and easier retrofits in crowded facilities, while a copper-free aluminum body and stainless steel guard resist corrosion in harsh atmospheres. Dimmable driver and a power factor greater than 0.9 enable precise control with modern lighting systems, reducing energy waste and extending maintenance intervals. The design also supports easier integration with controls and emergency systems. Shatter-resistant lens and robust construction minimize replacement risk in demanding applications, while the wide voltage range of 120-277 VAC and 50/60 Hz support global deployment.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LCA31-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LCA31-UNV1?
Enquire Now
FAQs
EVLLA7LCA31-UNV1 uses a pendant mounting method with a 1" trade size and is designed for overhead installation in hazardous locations. It features a stainless-steel guard and shatter-resistant lens, supporting durable operation in wet or dusty environments. Wiring is configured for 120-277 VAC supply with a dimmable driver, enabling flexible control.
Key specs include 7000 lumens, 110 lumens per watt, 69W, Cool White color, 120-277 VAC, 50/60 Hz, IP66 ingress protection, NEMA 4X enclosure, and Class I, Division 1 rating. These values deliver bright, efficient illumination with excellent voltage tolerance in industrial settings, while the dimmable driver supports scene-setting and energy management.
Yes. The fixture carries NEC/CEC compliance with Class I, Division 1 ratings and a NEMA 4X enclosure. It is UL certified for hazardous locations and offers IP66 protection, making it suitable for chemical plants, oil and gas facilities, and other high-risk environments.
The dimmable driver, long-life LEDs, and rugged guard reduce maintenance needs and downtime. Its high energy efficiency lowers operating costs, while corrosion-resistant housing and shatter-resistant lens decrease replacement frequency in harsh settings. Across multiple shifts, this translates to lower total cost of ownership and improved system reliability.
Documentation is available on the product page, including installation sheets, UL certification reports, brochures, and the Hazard-Gard EVLL LED datasheet. Download links cover IF installation instructions, catalog pages, and spec guides to support specification, procurement, and field installation.
