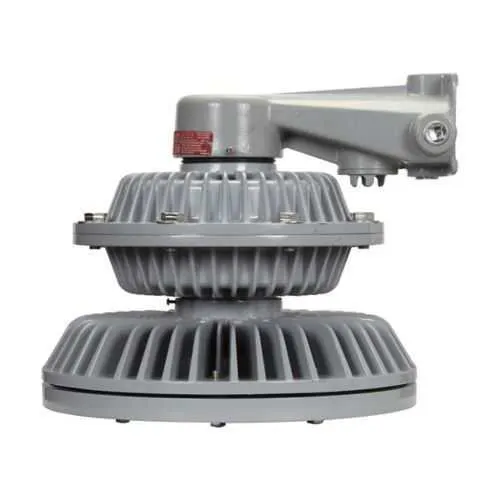

Eaton Crouse-Hinds EVLLA7LCBX20-UNV1 LED Light Fixture - IP66
Part Number: EVLLA7LCBX20-UNV1
Quick Summary
EVLLA7LCBX20-UNV1 is an explosion-proof LED light fixture designed for hazardous locations in industrial facilities. In harsh environments, unreliable lighting increases risk and downtime, making maintenance and inspections harder and more costly. It carries NEC hazardous ratings for Class I, Division 1 (and related classifications), IP66 ingress protection, and NEMA 4X corrosion resistance, delivering robust compliance and durability. With cool white illumination, 7000 lumens at 110 lm/W and a wide voltage range (120ā277 Vac), this fixture combines efficiency with operational flexibility. For buyers, the value is clear: safer work environments, easier compliance, and lower lifecycle costs through long life and low maintenance in demanding facilities.
Product Information
Extended Description
EVLLA7LCBX20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA explosionproof LED light fixture, Cool white, 150W-175W HID equiv, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free alum, Wall mount, 3/4" trade size, 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LCBX20-UNV1
Product Length/Depth
17.54 in
Product Height
14.9 in
Product Width
16.05 in
Product Weight
54.81 lb
UPC
662276955523
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Cool white
Mounting Method
Wall
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA7LCBX20-UNV1
Eaton Specification Sheet - EVLLA7LCBX20-UNV1
Feature: Explosion-proof hazardous location compatibility. Business impact: Reduces ignition risk and ensures regulatory compliance in Class I Division 1 environments. Application: Chemical plants, oil & gas facilities, and mining operations requiring reliable hazardous-location lighting. The EVLLA design aligns with Hazard-Gard standards to support safe, continuous operation. Feature: High luminous output with efficiency. Business impact: Delivers 7000 lumens at 110 lm/W for bright, uniform coverage while minimizing energy use. Application: Large expanses, walkways, and work cells where consistent visibility improves productivity and safety. Feature: Broad voltage and dimmable driver compatibility. Business impact: Enables flexible integration into existing electrical systems and dimming control schemes, reducing peak demand and improving comfort. Application: Facilities with mixed voltage infrastructures or daylight harvesting strategies. Feature: Durable copper-free aluminum construction with shatter-resistant lens. Business impact: Provides corrosion resistance in harsh environments and reduces maintenance intervals. Application: Outdoor-rated outdoor zones, chemical processing areas, and water-infiltration-prone spaces. Feature: Rugged mounting and lens/configuration. Business impact: Wall mounting with 3/4 inch trade size and two 3/4 inch NPT threads ensures straightforward installation and serviceability. Application: Retrofit projects and new builds where space and access are constrained. Feature: Certifications and protection. Business impact: NEMA 4X, IP66 ratings and hazardous-location approvals deliver fast compliance validation and safer asset protection. Application: Any regulated facility requiring reliable illumination under tough conditions. Industry context: The EVLLA series is widely referenced in electrical and safety specs for hazardous-location lighting, ensuring compatibility with typical control schemes and maintenance workflows. This translates to shorter commissioning times, reduced call-backs, and a clearer path to ROI for engineering teams.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LCBX20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LCBX20-UNV1?
Enquire Now
FAQs
EVLLA7LCBX20-UNV1 uses wall mounting with a 3/4 inch trade size and lens accommodation that supports two 3/4 inch NPT entries, facilitating straightforward installation in constrained spaces typical of hazardous locations.
The fixture delivers 7000 lumens at approximately 110 lm/W with a 69W draw and a dimmable driver option, enabling integration with lighting control systems to optimize energy use and visibility in demanding environments.
Yes. The EVLLA7LCBX20-UNV1 is designed for Hazardous/Classified Locations with NEC Class I, Division 1 ratings, IP66 ingress protection, and a NEMA 4X enclosure, supporting safe operation in flammable or explosive atmospheres.
It features Hazardous/Classified Location area classification, NEC compatibility, IP66 ingress protection, and NEMA 4X enclosure protection, ensuring durability and compliance across multiple certifications for hazardous environments.
Eaton provides installation and maintenance resources, including IF 1914 instruction sheets for EVLLA Hazard-Gard LED luminaire driver replacement, helping technicians perform safe, compliant driver maintenance without extended downtime.
