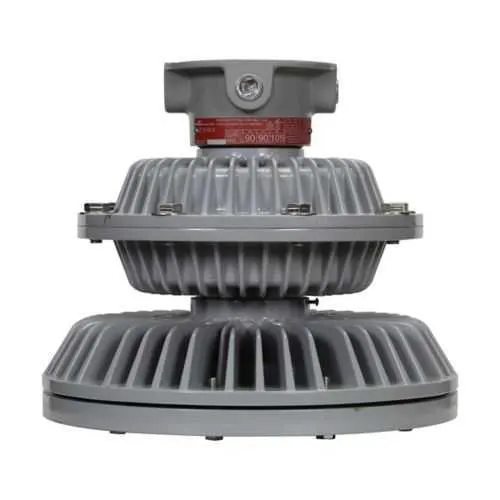

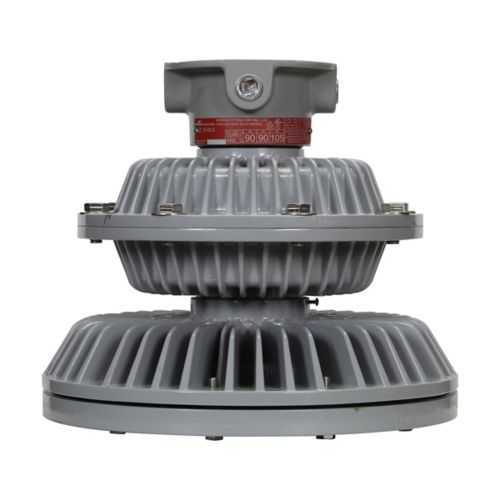

Eaton EVLLA7LCCX20-UNV1 LED Light Fixture - IP66 Hazardous
Part Number: EVLLA7LCCX20-UNV1
Quick Summary
EVLLA7LCCX20-UNV1 is an explosion-protected LED light fixture designed for hazardous locations. In demanding industrial environments, frequent lamp replacements and unreliable lighting drive downtime and safety risks. It carries NEC/CEC hazardous ratings (Class I, Division 1), IP66 ingress protection, and a NEMA 4X enclosure, ensuring rugged performance in corrosive or washdown areas. This ceiling-mounted luminaire delivers 7000 lumens at 110 lm/W with a dimmable driver, enabling energy efficiency and easier control. For facilities in chemical processing, refineries, and heavy manufacturing, it reduces maintenance cycles while improving safety and compliance.
Product Information
Extended Description
EVLLA7LCCX20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA explosionproof LED light fixture, Cool white, 150W-175W HID equiv, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free alum, Ceiling mount, 3/4" trade size, 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LCCX20-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.31 lb
UPC
662276955516
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
EVLLA7LCCX20-UNV1 is designed for hazardous locations, delivering reliable illumination with an explosion-protected LED platform. Feature → Business Impact → Application: The luminaire provides 7000 lumens at 110 lm/W with a 69W driver, enabling substantial energy savings and lower total cost of ownership for continuous operation in refineries and chemical plants. Application: chemical processing and petrochemical facilities seeking compliant, energy-efficient lighting. Feature → Business Impact → Application: IP66-rated, NEMA 4X enclosure and shatter-resistant lens offer washdown resilience and corrosion resistance, reducing maintenance frequency in offshore platforms and paint shops. Application: offshore rigs, shipyards, and marine environments needing robust ingress protection. Feature → Business Impact → Application: Dimmable driver and 50/60 Hz compatibility support flexible lighting control and easy integration with existing controls systems. Application: assembly lines and critical process areas where precise illumination and reduced glare improve worker safety. Feature → Business Impact → Application: Copper-free aluminum housing and no guard design minimize weight and maintenance while improving heat dissipation. Application: ceiling-mounted installations in restricted spaces with long-term reliability. Feature → Business Impact → Application: 120-277 VAC operation broadens compatibility with common plant power systems, simplifying installation and reducing inventory of drivers. Application: facilities with mixed voltage rooms or refurbished buildings.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LCCX20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LCCX20-UNV1?
Enquire Now
FAQs
Yes. The EVLLA7LCCX20-UNV1 is a ceiling-mounted luminaire designed for hazardous locations with 120-277 VAC operation and a dimmable driver. It features a 3/4" trade size mounting interface and two 3/4" NPT lens connections, enabling straightforward retrofits into common ceiling grids or dedicated hazard zones. For proper anchoring, follow the IF1913/IF1914 installation sheets in the downloadable documents.
The EVLLA carries NEC/CEC hazardous location classifications (Class I, Division 1), a NEMA 4X enclosure, and IP66 ingress protection. These certifications guarantee safe operation in corrosive wash-down areas and high-dust environments, while the shatter-resistant lens adds additional safety in industrial settings. Always verify local regulations and install per the provided UL/installation documentation.
This luminaire delivers 7000 lumens at 110 lumens per watt with a 69W driver, enabling significant energy savings versus equivalent HID equivalents. The dimmable driver allows operating points tailored to task lighting, reducing waste, while the cool-white output enhances contrast for safer operation. Combined, these features lower energy bills and extend interval between maintenance cycles.
Yes. The EVLLA7LCCX20-UNV1 supports 120-277 VAC and 50/60 Hz, and it includes a dimmable driver for flexible control. This compatibility simplifies integration with existing plant electrical systems and lighting controls, enabling staged commissioning, occupancy-based dimming, and energy management strategies without additional power conversion hardware.
Facilities can expect reduced maintenance due to long LED life and rugged construction (IP66, NEMA 4X, copper-free aluminum). The 7000-lumen output with efficient 110 lm/W performance lowers energy costs, while dimming and reliable operation minimize downtime. The combination of safer lighting and lower replacement frequency contributes to a favorable return on investment over HID-based systems.
