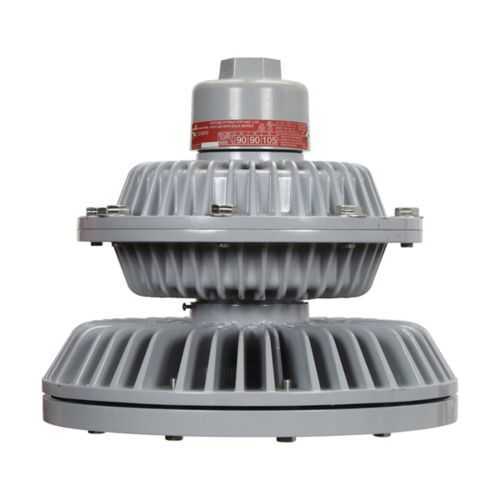

Eaton Crouse-Hinds EVLLA7LNA20-UNV1 LED Light Fixture - IP66
Part Number: EVLLA7LNA20-UNV1
Quick Summary
The Eaton Crouse-Hinds EVLLA7LNA20-UNV1 LED light fixture provides safe, bright illumination for hazardous industrial locations. In explosion-prone environments, downtime and maintenance costs rise when lighting fails or requires frequent replacement. It carries NEC/CEC compliance and Hazardous/Classified Locations ratings, along with IP66 and NEMA 4X construction to resist dust, water, and corrosive exposure. The pendant-mounted luminaire delivers 7000 lumens at 69 watts with a high 110 lm/W efficiency, and a dimmable driver supports flexible control. With copper-free aluminum and shatter-resistant lens, it combines durability with straightforward installation for retrofit or new-build projects, helping facilities lower operating costs while maintaining compliance and worker safety.
Product Information
Extended Description
EVLLA7LNA20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Neutral white, 150W-175W HID equivalent, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free aluminum, Pendant mount, 3/4", 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LNA20-UNV1
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
53.81 lb
UPC
662276990845
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Neutral white
Mounting Method
Pendant
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Lumens and efficiency combine to reduce energy costs while maintaining high-visibility task lighting for demanding environments, as the EVLLA7LNA20-UNV1 delivers 7000 lm at 69 W with 110 lm/W efficiency. This translates to lower energy bills and extended maintenance intervals in refineries, chemical plants, and mining sites. IP66 enclosure and NEMA 4X protection ensure reliable operation in dusty, wet, and corrosive environments, minimizing downtime due to weathering or washdowns. The fixture’s NEC hazardous rating (Class I, Division 1; Class II, Division 1; Class III) and Hazardous/Classified Locations designation provide compliance assurance for regulatory audits and safer facility operations. A dimmable driver enables daylight harvesting and process-control strategies, reducing energy use during low-load periods. Pendant mounting with 3/4" NPT lens plugs and copper-free aluminum enable straightforward installation and retrofit compatibility across existing infrastructure. Shatter-resistant lens adds durability and reduces replacement cycles, lowering total cost of ownership in challenging environments.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LNA20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LNA20-UNV1?
Enquire Now
FAQs
EVLLA7LNA20-UNV1 uses a pendant mounting method and is rated for 120-277 Vac at 50/60 Hz, making it compatible with most industrial power systems. The fixture supports 3/4" NPT mounting hardware for straightforward installation and retrofit into existing conduits and ceiling supports commonly found in chemical plants and refineries.
The luminaire provides 7000 lumens at 69 watts, delivering approximately 110 lumens per watt. This combination yields high-visibility illumination with excellent energy efficiency, reducing operating costs over the fixture’s life while maintaining consistent performance across 50/60 Hz supply networks.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC Class I, Division 1, Class II Division 1, and Class III. It also features IP66 and NEMA 4X ratings, ensuring robust protection against dust, water ingress, and harsh chemicals typical of industrial hazardous zones.
The EVLLA7LNA20-UNV1 aligns with NEC/CEC requirements and Hazardous Location certifications. It also carries IP66 and NEMA 4X enclosures, validating performance in dust, water, and corrosive environments, with additional Canadian/UL certifications available via the provided UL references for Canada and Hazard-Gard literature.
This LED luminaire eliminates many frequent HID maintenance concerns with longer life, shatter-resistant lenses, and copper-free aluminum construction for corrosion resistance. The dimmable driver supports reduced energy use and extended service intervals, while the robust IP66/NEMA 4X enclosure minimizes replacement due to environmental exposure, delivering a lower total cost of ownership.
