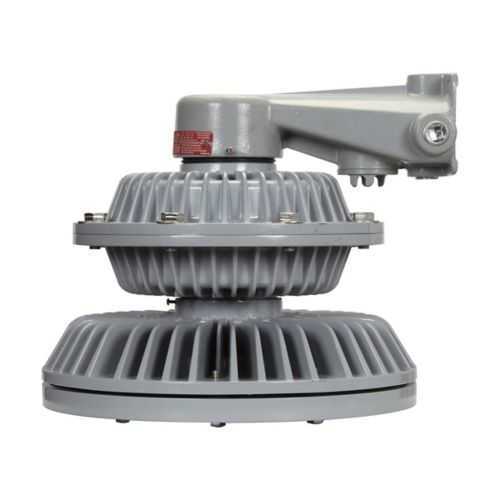

Eaton Crouse-Hinds EVLLA7LNBX20-UNV1 LED light fixture - IP66
Part Number: EVLLA7LNBX20-UNV1
Quick Summary
EVLLA7LNBX20-UNV1 is an Eaton Crouse-Hinds Hazard-Gard LED light fixture for hazardous-location industrial illumination. Facilities often struggle with reliable, compliant lighting in explosive atmospheres and costly maintenance downtime. This luminaire meets NEC/CEC hazardous location ratings including Class I, Division 1; Class II, Division 1; and Class III, plus IP66 ingress protection and a NEMA 4X enclosure for rugged environments. By combining shatter-resistant glass, a copper-free aluminum housing, and a dimmable driver, it delivers consistent performance while reducing energy use. The result is safer, compliant lighting that supports uptime, lowers maintenance costs, and scales across industrial facilities needing robust hazardous-location illumination.
Product Information
Extended Description
EVLLA7LNBX20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Neutral white, 150W-175W HID equivalent, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free aluminum, Wall mount, 3/4", 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LNBX20-UNV1
Product Length/Depth
17.54 in
Product Height
14.9 in
Product Width
16.05 in
Product Weight
54.81 lb
UPC
662276990883
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Neutral white
Mounting Method
Wall
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA7LNBX20-UNV1
Eaton Specification Sheet - EVLLA7LNBX20-UNV1
High-lumen efficiency drives measurable business impact: 7000 lumens at 110 lm/W with a 69 W draw translates to meaningful energy savings and lower operating costs on shift-change and night cycles. Application-wise, this enables brighter, more reliable task lighting in hazardous areas such as chemical processing and refineries, improving worker safety and productivity. Rugged construction supports long life in harsh environments: copper-free aluminum housing, IP66 and NEMA 4X protection, and a shatter-resistant lens reduce corrosion-related maintenance and part replacements, minimizing downtime in offshore rigs and mining sites. Hazardous-location readiness addresses regulatory compliance: NEC Class I, Division 1; Class II, Division 1; Class III ratings ensure installation across multiple hazardous zones without frequent re-engineering. Dimming and universal voltage compatibility enable flexible control: a dimmable driver and 120–277 VAC operation integrate with modern building management and local controls, delivering energy management and reduced peak demand. Easy mounting and serviceability: wall mounting with standard 3/4" NPT lens, Ex-d threaded plug, and driver-replacement guidance via IF 1914 instruction sheets simplify installation and maintenance planning, reducing total-cost-of-ownership for industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LNBX20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LNBX20-UNV1?
Enquire Now
FAQs
The EVLLA7LNBX20-UNV1 is wall-mounted and designed for 120-277 VAC operation with a 69 W power draw, delivering 7000 lumens. It uses a 2 x 3/4" NPT metal thread lens setup and a 3/4" Ex-d threaded plug, enabling straightforward mounting and service access in harsh environments such as chemical plants and refineries.
This luminaire delivers 7000 lumens with an efficiency of 110 lumens per watt, drawing 69 W. The neutral white LED output provides consistent illumination, suitable for detailed industrial tasks while maintaining energy efficiency and long life.
Yes. The fixture carries NEC hazardous ratings including Class I, Division 1, along with Class II, Division 1 and Class III, ensuring compliance across multiple hazardous-location classifications. It also features IP66 and NEMA 4X protection for rugged, dust- and water-restricted environments.
The EVLLA7LNBX20-UNV1 offers IP66 ingress protection, a NEMA 4X enclosure, and NEC ratings for hazardous locations (Class I, Division 1; Class II, Division 1; Class III). It uses copper-free aluminum housing and shatter-resistant glass, reinforcing durability in harsh industrial settings.
With a long-life LED luminaire, dimmable driver, and modular mounting/driver-accessibility, downtime is minimized and maintenance cycles are extended. The product supports energy management with high lumens per watt, reducing energy costs, while its robust housing and protective ratings lower replacement frequency in demanding environments.
