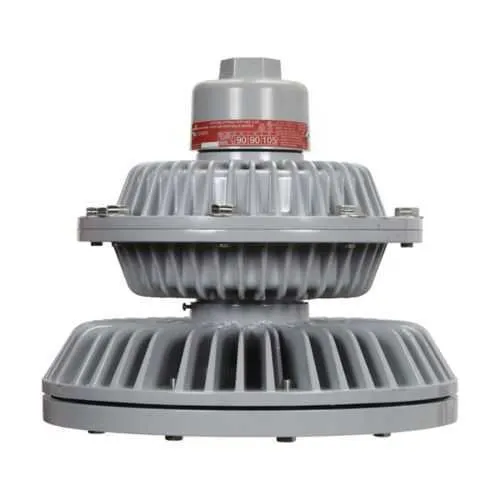

Eaton EVLLA7LWA20-UNV34 LED Light Fixture - IP66 Hazardous
Part Number: EVLLA7LWA20-UNV34
Quick Summary
EVLLA7LWA20-UNV34 LED light fixture provides reliable hazardous-location illumination for industrial facilities. Downtime for maintenance in explosive atmospheres is costly and disrupts production, so choosing a rugged, sealed luminaire matters. This fixture is NEC/CEC hazardous-location rated, IP66 protected, and NEMA 4X compliant, with a shatter-resistant lens, delivering safety and durability. Pendant-mount design simplifies installation in high-ceiling spaces while offering long service life. By combining energy-efficient LED performance with robust certifications, it supports compliance, reduces operating costs, and integrates with modern control schemes in industrial lighting applications such as chemical plants, refineries, and mining operations.
Product Information
Extended Description
EVLLA7LWA20-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 150W-175W HID equivalent, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free aluminum, Pendant mount, 3/4", 347-480 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LWA20-UNV34
Product Length/Depth
16.32 in
Product Height
15.42 in
Product Width
16.32 in
Product Weight
53.81 lb
UPC
662276991507
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Warm white
Mounting Method
Pendant
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA7LWA20-UNV34
Eaton Specification Sheet - EVLLA7LWA20-UNV34
Feature: High lumen output with efficiency. Benefit: Delivers bright, uniform illumination while reducing energy consumption and operating costs. Application: Ideal for process areas and loading docks in hazardous environments. Long-term impact: Lower total cost of ownership due to energy efficiency and extended maintenance intervals. Feature: 7000 lumens at 110 lumens per watt. Business impact: Strong light intensity with excellent efficiency supports safer work environments and compliant visibility. Application: Concrete mills, refineries, and maintenance corridors. Feature: IP66 ingress protection and NEMA 4X rating. Business impact: Rugged housing resists dust, water, and corrosion, reducing replacement cycles in harsh facilities. Application: Offshore platforms, chemical plants, and mining sites. Feature: Copper-free aluminum construction. Business impact: Corrosion resistance lowers lifecycle costs in aggressive atmospheres. Application: Marine and industrial facilities with corrosive exposures. Feature: Pendant mounting and 347–480 Vac voltage range. Business impact: Flexible installation in elevated spaces and seamless integration with common industrial power systems. Application: Factory aisles, washdown areas, and utility corridors. Feature: Dimmable driver and high power factor (>0.90). Business impact: Supports lighting control strategies and energy management programs, improving demand response performance. Application: Areas with occupancy or daylight controls. Feature: Warm white color temperature. Business impact: Improves operator comfort and reduces fatigue in long shifts. Application: Assembly lines and inspection zones. Feature: Lens and guarding configuration (no guard). Business impact: Reduced weight and streamlined mounting in constrained spaces; suitable where guard protection is not required. Application: Cleanroom-adjacent zones and indoor industrial spaces. Industry context note: This fixture aligns with common industry expectations for hazardous-location lighting—robust certification, reliable performance, and installation flexibility—while supporting proactive maintenance and energy-saving initiatives.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LWA20-UNV34
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LWA20-UNV34?
Enquire Now
FAQs
EVLLA7LWA20-UNV34 is a pendant-mounted luminaire designed for hazardous areas. Install per manufacturer guidelines using standard 3/4 inch mounting hardware, connect to 347–480 Vac power, and ensure the fixture is secured in a protected location with appropriate wiring methods for Classifications and NEC/CEC compliance.
The fixture delivers 7000 lumens at 110 lm/W with a power draw around 69 W. It operates on a voltage range of 347–480 Vac and supports a 50/60 Hz frequency. Power factor is greater than 0.90, and the driver is dimmable to support control strategies.
Yes. The unit is designed for Hazardous/Classified Locations with IP66 protection and a NEMA 4X rating, and it features a shatter-resistant lens. While it specifies a 'no guard' configuration, ensure your specific application complies with local codes and the NEC/CEC hazardous-area classifications.
It is listed for hazardous locations under NEC/CEC guidelines, IP66 ingress protection, and NEMA 4X weather and corrosion resistance. It is UL-certified for Hazardous Locations, and the unit is compatible with 347–480 Vac power systems, supporting safe operation in demanding environments.
The LED EVLLA7LWA20-UNV34 reduces maintenance due to longer lamp life and solid-state reliability, while high lumen output and efficiency lower energy costs. The dimmable driver and robust certifications help integrate with control systems, contributing to faster ROI through energy savings and reduced replacement cycles.
