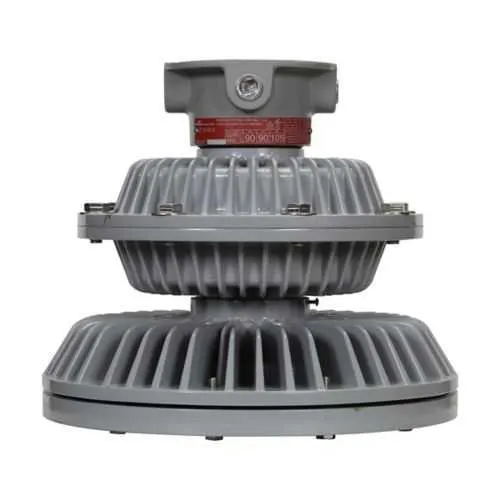

Eaton Crouse-Hinds EVLLA7LWCX20-UNV1 LED Fixture - IP66
Part Number: EVLLA7LWCX20-UNV1
Quick Summary
EVLLA7LWCX20-UNV1 LED fixture provides hazardous-location illumination for demanding industrial environments. Many facilities struggle with rugged lighting that stands up to moisture, vibration, and chemical exposure. This luminaire carries NEC/CEC compliance, hazardous-location ratings (Class I, Division 1), IP66, and NEMA 4X protection for reliable operation in harsh settings. Coupled with 7000 lumens, 110 lm/W efficiency, and a dimmable driver, it supports energy savings and maintenance optimization for industrial facilities. Its copper-free aluminum housing and shatter-resistant lens are designed for long service life in hazardous zones, delivering safer, brighter work environments with fewer re-lamps and reduced downtime.
Product Information
Extended Description
EVLLA7LWCX20-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 150W-175W HID equivalent, No guard, Shatter-resistant glass lens, 7000 lumens, 110 lm/W, Copper-free aluminum, Ceiling mount, 3/4", 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LWCX20-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.31 lb
UPC
662276993792
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Warm white
Mounting Method
Ceiling
Equivalent luminaire
150W-175W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA7LWCX20-UNV1
Eaton Specification Sheet - EVLLA7LWCX20-UNV1
Feature: 7000 lumen output with 110 lumens per watt efficiency. Business Impact: Higher overall workplace illumination with lower energy consumption per lumen, reducing operating costs. Application: Ideal for large industrial bays and hazardous locations requiring bright, efficient lighting. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: Superior moisture, dust, and corrosion resistance for reliable operation in harsh environments. Application: Chemical plants, offshore facilities, and outdoor-rated hazardous spaces. Feature: Dimmable driver and wide voltage range (120-277 VAC). Business Impact: Flexible control strategies and energy optimization across different sites, lowering lifecycle costs. Application: Facilities upgrading from HID or mixed lighting to LED luminaires. Feature: Copper-free aluminum housing and shatter-resistant glass lens. Business Impact: Extended service life and reduced replacement costs in vibration-prone or high-traffic areas. Application: Class I, Division 1 zones where rugged durability matters. Feature: Ceiling mounting with 3/4" NPT threads and Ex-d threaded plug compatibility. Business Impact: Easier retrofit and secure installation with standard mounting hardware. Application: Retrofit projects in industrial ceilings and protected ceilings. Feature: No guard option with continued robust protection. Business Impact: Lighter weight and simpler install without compromising safety when properly designed for hazardous locations. Application: Compact, space-constrained installations where guard protection is not required.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LWCX20-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LWCX20-UNV1?
Enquire Now
FAQs
Install the fixture on a ceiling using standard ceiling mounting hardware with 3/4" NPT threaded connections. Ensure the supply is within the 120-277 VAC range and follow local NEC/CEC guidelines for Class I, Division 1 areas. The unit features Ex-d threaded plug compatibility for safe, code-compliant installations in hazardous zones.
The luminaire delivers 7000 lumens at about 110 lm/W, with a warm white color temperature, on a 120-277 VAC, 50/60 Hz supply. It is dimmable and rated IP66 with a NEMA 4X enclosure, suitable for harsh environments.
Yes. The fixture is rated for hazardous locations including NEC Class I Division 1, offering robust protection (IP66 and NEMA 4X) to meet stringent safety and compliance requirements in industrial plants.
It carries NEC/CEC compliance, Hazardous/Classified Locations ratings, IP66 ingress protection, and a NEMA 4X enclosure. Canadian certifications are available via UL documentation, and the unit is designed for reliable performance in hazardous environments.
With 7000 lumens, 69W operation, shatter-resistant lens, and a long-life LED driver, the fixture reduces maintenance frequency and energy costs, delivering lower total cost of ownership in demanding facilities.
