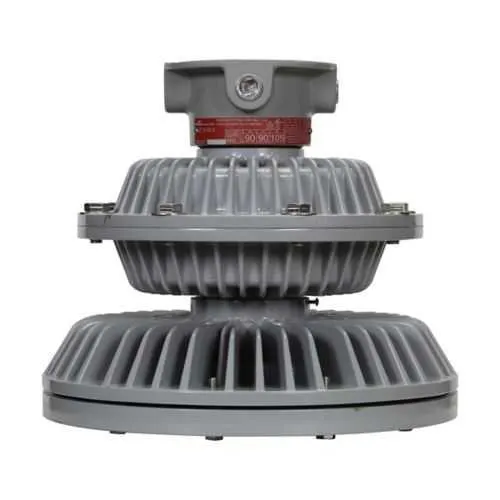

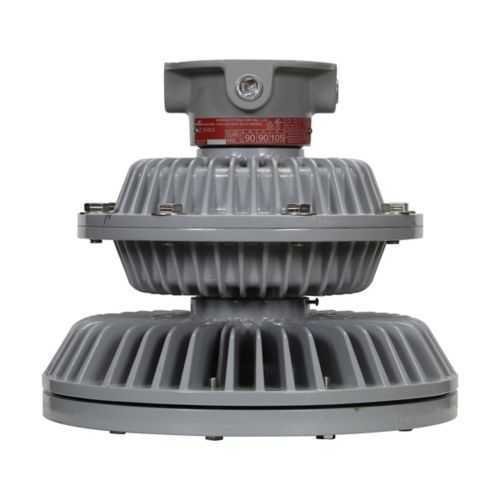

Eaton Crouse-Hinds EVLLA7LWCX31-UNV1 LED Light Fixture - IP66
Part Number: EVLLA7LWCX31-UNV1
Quick Summary
EVLLA7LWCX31-UNV1 is an explosion-proof LED light fixture designed for hazardous locations in industrial plants. This solution addresses frequent maintenance downtime and unreliable illumination in Class I, Division 1 environments by delivering consistent, high-quality light. It meets NEC/CEC requirements with IP66 and NEMA 4X ratings, ensuring robust protection in demanding settings. Engineered for ceiling installation and broad voltage compatibility, it delivers energy efficiency and long life, reducing operating costs while simplifying compliance management. For facilities seeking reliable hazardous-location lighting with scalable control options, this fixture pairs safety with cost-effective performance in one rugged package.
Product Information
Extended Description
EVLLA7LWCX31-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA explosionproof LED light fixture, Warm white, 150W-175W HID equiv, Stainless steel grd, Shatter-resist glass lens, 7000 lm, 110 lm/W, Copper-free alum, Ceiling mt, 1" trade size, 120-277 Vac, 69W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA7LWCX31-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.31 lb
UPC
662276973442
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
110
Color temperature
Warm white
Mounting Method
Ceiling
Equivalent luminaire
150W-175W HID
Trade size
1"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
69W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Eaton Specification Sheet - EVLLA7LWCX31-UNV1
Eaton Specification Sheet - EVLLA7LWCX31-UNV1
Feature EVLLA7LWCX31-UNV1 is a ceiling-mounted, explosion-proof LED luminaire designed for Hazardous/Classified Locations. Business Impact This combination delivers safer operations and reduced maintenance cycles, especially in chemical processing or oil & gas environments, where downtime is costly and safety standards are strict. Application Ideal for Class I, Division 1 spaces requiring reliable illumination with NEC/CEC compliance, IP66 protection, and a durable stainless steel guard. Feature The luminaire uses a copper-free aluminum housing with shatter-resistant glass and a 7000 lumen output at 69W, achieving 110 lumens per watt. Business Impact Lower energy usage and predictable illumination improve productivity and reduce total cost of ownership (TCO) over the fixture’s lifecycle. Application Suitable for long-running production lines and wet locations, optimizing throughput in hazardous settings. Feature Dimmable driver and wide voltage range (120–277 VAC) enable flexible control and simplified integration with existing plant controls. Business Impact Utilities can minimize stock keeping units and streamline commissioning with universal dimming and fascia-friendly wiring. Application Ideal for retrofit projects and new builds requiring scalable lighting control. Feature 1" trade size with 2 x 3/4" NPT lens connections and a ceiling mounting method. Business Impact Quick, serviceable installation reduces commissioning time and allows straightforward lens access for inspection and maintenance. Application Great for confined spaces and facilities with stringent space constraints. Feature IP66, NEMA 4X, and stainless steel guard. Business Impact Enhanced environmental protection reduces corrosion and ingress risk, extending service life in harsh environments. Application Best suited for outdoor-adjacent or splash-prone industrial areas. Feature DLC and UL certification readiness is supported by Eaton’s literature and spec sheets. Business Impact Certification transparency aids compliance audits and helps procurement qualify the fixture quickly. Application Useful for projects requiring DLC-approved lighting for incentive programs and regulatory acceptance.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA7LWCX31-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA7LWCX31-UNV1?
Enquire Now
FAQs
Yes. The EVLLA7LWCX31-UNV1 is certified for Hazardous/Classified Locations under NEC/CEC, with Class I, Division 1 (and Class II, Division 1; Class III) ratings. It features IP66 ingress protection and a NEMA 4X enclosure, providing rugged protection in demanding environments. The fixture operates from 120–277 VAC at 50/60 Hz and includes a dimmable driver for flexible control. Ceiling mounting and 1" trade size simplify installation in restricted spaces while maintaining safety and reliability.
Key specs include 7000 lumens at 69W, delivering about 110 lm/W with a warm white color temperature. It operates on 120–277 VAC, 50/60 Hz, and features a dimmable driver to suit control schemes. The luminaire uses copper-free aluminum with a stainless-steel guard, achieving IP66 and NEMA 4X protection. The beam and lens arrangement use 2 x 3/4" NPT metal thread interfaces and a 1 x 3/4" Ex-d threaded plug, enabling robust field servicing and lens access.
DLC and UL documentation are available through Eaton’s published literature. The product page includes brochures and catalog pages such as the DLC-approved lighting products flyer and the Hazard-Gard EVLL LED catalog page. Certification reports and UL listings for Canada and general use are provided via linked assets, along with the official Eaton specification sheet EVLLA7LWCX31-UNV1 and related instruction sheets, facilitating compliance checks and procurement reviews.
This fixture is designed for ceiling mounting with a 1" trade size and features a stainless-steel guard and shatter-resistant lens. Dimensions are approximately 16.32 in long and wide with a height of 14.48 in, weighing about 55.31 lb. The unit includes 2 x 3/4" NPT lens connections and a 1 x 3/4" Ex-d threaded plug for secure, serviceable access. The 120–277 VAC, dimmable driver supports seamless integration with existing control strategies and PLC-based lighting schemes.
The EVLLA7LWCX31-UNV1 offers energy efficiency with 110 lm/W and 7000 lumens, reducing energy costs and cooling loads. Its rugged IP66/NEMA 4X enclosure minimizes maintenance and downtime in harsh environments, while the DLC/UL readiness streamlines procurement and compliance. By consolidating safety, performance, and long life into a single unit, facilities improve uptime, safety posture, and total cost of ownership in hazardous-location lighting projects.
