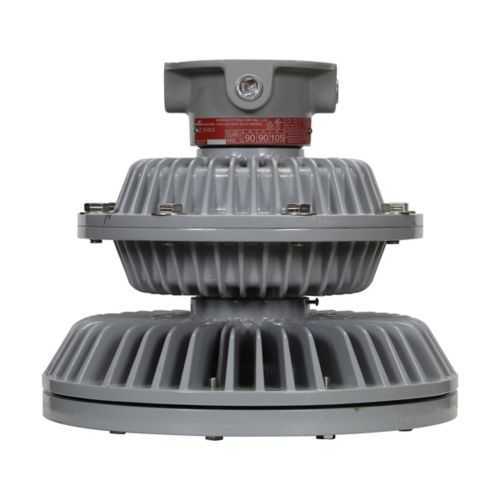

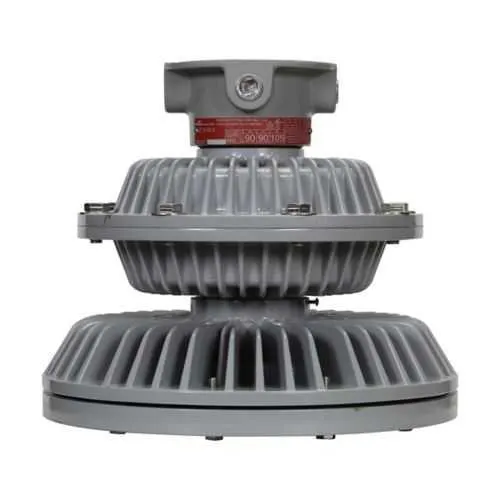

Eaton EVLLA9LCCX21-UNV1-S812 LED Light Fixture - IP66 Hazardous

Part Number: EVLLA9LCCX21-UNV1-S812
EVLLA9LCCX21-UNV1-S812
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA9LCCX21-UNV1-S812
Category

Quick Summary

EVLLA LED light fixture from Eaton Crouse-Hinds provides rugged hazardous-location illumination for industrial facilities. In challenging environments, traditional HID replacements often fail due to frequent ballast failures, higher maintenance costs, and inconsistent performance. This luminaire meets NEC/CEC hazardous location requirements, including Class I Division 1, Class II Division 1, and Class III ratings, along with NEMA 4X and IP66 enclosure protection, ensuring reliable operation in harsh atmospheres. By combining durable copper-free aluminum construction with a stainless steel guard and shatter-resistant lens, it delivers long life in wet, dusty, or corrosive settings. The solution also supports universal voltage and dimming, enabling lower operating costs and easier inventory management for plant engineers and procurement teams.

Product Information

Extended Description

EVLLA9LCCX21-UNV1-S812 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 175W-250W HID equiv, Stainless steel guard, Shatter-resistant glass lens, 9000 lm, 107 lm/W, Copper-free alum, Ceiling mt, Trunnion mt kit, 3/4", 120-277 Vac, 81W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA9LCCX21-UNV1-S812
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.88 lb
UPC
662276991514
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
107
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
175W-250W HID
Trade size
100-240 Vac, 127-250 Vdc
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
81W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLLA LED catalog page Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification IF 1913 - EVLLA Hazard-Gard LED Luminaire IF 1913 - EVLLA Hazard-Gard LED Luminaire Hazard-Gard EVLL LED Explosionproof Hazard-Gard EVLL LED Explosionproof
High-output LED delivers 9000 lumens with 107 lumens per watt, providing bright, uniform illumination that reduces work area shadows and improves safety while cutting energy use. This translates to measurable maintenance savings and lower operating costs in chemical plants, refineries, and heavy manufacturing facilities. The stainless steel guard and copper-free aluminum enclosure resist corrosion and harsh条件, delivering extended service life in wet and dusty environments, which minimizes replacement cycles and downtime. The luminaire runs on universal voltage 120-277 VAC with a dimmable driver, enabling flexible control schemes and simpler procurement with a single SKU for multiple sites. Installation is straightforward thanks to ceiling mounting and a robust lens system with 2 x 3/4-inch NPT threads and 1 x 3/4-inch Ex-d threaded plug, improving compatibility with existing conduit layouts. These design choices support compliance with NEC/CEC requirements while delivering reliable performance in hazardous locations and IP66-rated protection against dust and water.

Get a Quick Quote for a Eaton Crouse-Hinds EVLLA9LCCX21-UNV1-S812

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLLA9LCCX21-UNV1-S812? Enquire Now

FAQs

Install via ceiling mounting with the stainless steel guard and 2 x 3/4-inch NPT lens threads for secure sealing. Use appropriate conduit and follow NEC/CEC enclosure guidelines. The luminaire operates on universal voltage 120-277 VAC and includes a dimmable driver, enabling zone or profile-based control in hazardous areas.
EVLLA carries NEC/CEC hazardous location ratings including Class I Division 1, Class II Division 1 and Class III, along with NEMA 4X and IP66 protection. It has UL certifications for explosion-proof LED luminaires, ensuring compliance for oil, chemical, and mining facilities in hazardous locations.
Ideal for chemical plants, oil and gas facilities, mining, water and wastewater, and other installations requiring explosion-protected lighting in wet, dusty, or corrosive environments. Its high lumen output, durable guard, and moisture protection support safe, compliant operation in harsh industrial settings.
With 9000 lumens at 107 lm/W and an 81 W draw, the EVLLA delivers bright, efficient illumination while lowering energy consumption. A dimmable driver supports adaptive control, reducing waste. The copper-free aluminum body and stainless guard resist corrosion, extending life and lowering maintenance costs in demanding locations.
Yes. EVLLA supports ceiling mounting with optional trunnion kit and 3/4-inch lens connections. It tolerates universal power distributions with 100-240 VAC or 120-277 VAC inputs and a dimmable driver, simplifying integration with existing controls and minimizing stocking complexity across multiple sites.
