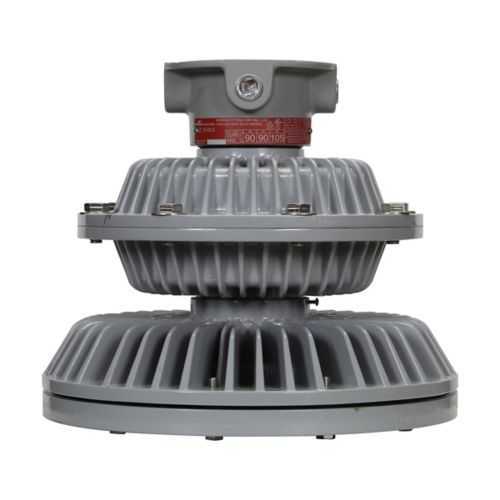

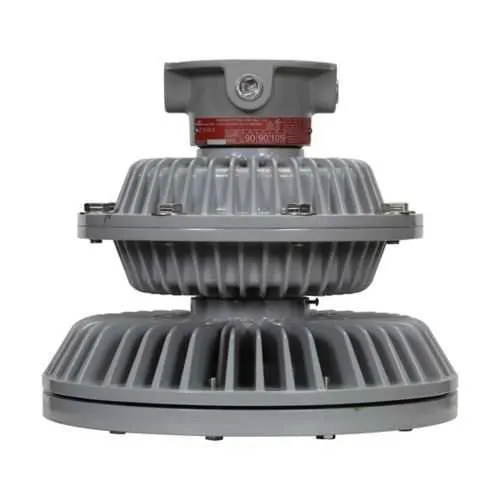

Eaton EVLLA9LCCX30-UNV1 LED Light Fixture - IP66
Part Number: EVLLA9LCCX30-UNV1
Quick Summary
EVLLA9LCCX30-UNV1 LED light fixture delivers hazard-ready illumination for industrial facilities in hazardous locations. This solution helps mitigate maintenance downtime and unreliable lighting in explosion-prone areas by combining rugged construction with a dimmable driver and high lumen output. It supports NEC/CEC standards and hazardous rating requirements, including Class I, Division 1; Class II, Division 1; and Class III, plus a durable IP66/NEMA 4X enclosure for weather and chemical resistance. Designed for 120–277 VAC operation, ceiling mounting, and easy retrofits, it reduces energy costs while delivering safer, compliant lighting for demanding environments. Ideal for hazardous and classified locations requiring reliable LED replacement for HID systems.
Product Information
Extended Description
EVLLA9LCCX30-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 175W-250W HID equivalent, No guard, Shatter-resistant glass lens, 9000 lumens, 107 lm/W, Copper-free aluminum, Ceiling mount, 1", 120-277 Vac, 81W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA9LCCX30-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.88 lb
UPC
662276990579
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
107
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
175W-250W HID
Trade size
1"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
81W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures Canadian certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Eaton Specification Sheet - EVLLA9LCCX30-UNV1
Eaton Specification Sheet - EVLLA9LCCX30-UNV1
Feature: 9000 lumens with 107 lm/W efficiency and cool white output. Business impact: High-contrast visibility and energy efficiency reduce operating costs and production downtime. Application: Manufacturing floors, chemical plants, and process areas needing bright, reliable illumination. Feature: Dimmable driver with 120–277 VAC and 50/60 Hz compatibility. Business impact: Flexible lighting control and compatibility with existing control systems, enabling task-based lighting and further energy savings. Application: Assembly lines and maintenance zones where lighting levels vary by task. Feature: IP66 rating and NEMA 4X enclosure. Business impact: Superior protection against dust, water, and harsh chemicals, extending service life and reducing maintenance events. Application: Wet, dusty, and corrosive environments such as wash bays and chemical processing rooms. Feature: Copper-free aluminum housing and 1" trade size with ceiling mounting. Business impact: Corrosion resistance and straightforward installation reduce installation time and long-term corrosion-related costs. Application: Roofed interiors and overhead mounting in industrial facilities. Feature: Lens assembly with multiple mounting options (2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug). Business impact: Flexible installation in tight spaces and hazardous locations while maintaining safe ingress protection. Application: Areas requiring robust mounting and secure lens configuration.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA9LCCX30-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA9LCCX30-UNV1?
Enquire Now
FAQs
EVLLA9LCCX30-UNV1 is designed for ceiling mounting with a 1" trade size and a robust housing suitable for hazardous locations. It operates on 120–277 VAC, standard 50/60 Hz power, and includes a dimmable driver to adapt lighting levels to task requirements, enabling straightforward retrofits alongside existing electrical infrastructures.
This LED fixture delivers 9000 lumens with an efficiency of 107 lm/W, providing bright, clear illumination while consuming far less power than a 175–250W HID lamp. The LEDs offer faster start-up, longer life, and reduced maintenance in harsh environments, delivering improved uptime and lower total cost of ownership.
Yes. EVLLA9LCCX30-UNV1 carries NEC hazardous ratings including Class I Division 1, Class II Division 1, and Class III, along with IP66 and NEMA 4X protection. This combination ensures safe operation in hazardous and classified locations such as chemical plants, refineries, and offshore facilities.
The fixture satisfies NEC/CEC requirements for hazardous locations, has IP66 ingress protection, and a NEMA 4X enclosure. Canadian and UL certifications are represented in the Hazard-Gard EVLL series, with specific documentation available in the DLC and certification reports provided by Eaton.
Expect lower maintenance due to long LED life and rugged housing designed for harsh environments, which reduces replacement frequency. Energy savings from 81W operation and high efficiency, combined with dimmable control, translate to quicker payback and lower operating costs while maintaining reliable illumination in hazardous areas.
