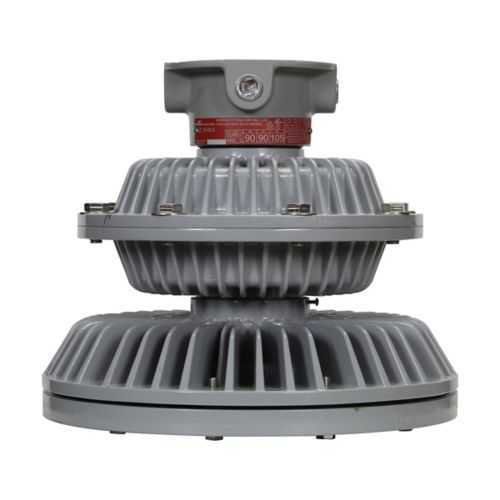

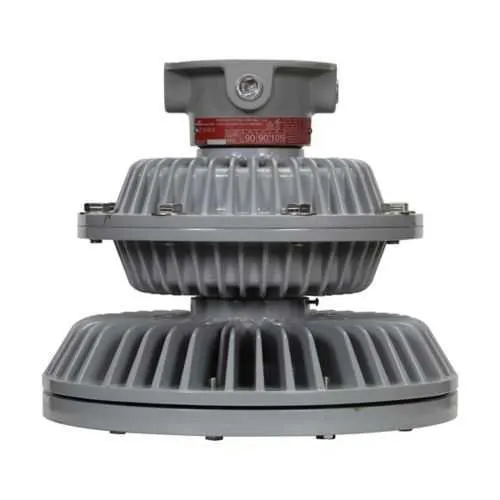

Eaton EVLLA9LCCX31-UNV1 LED Light - Hazardous Locations
Part Number: EVLLA9LCCX31-UNV1
Quick Summary
EVLLA LED light fixture is a hazardous-location lighting solution for industrial facilities. In demanding environments, it minimizes maintenance downtime by delivering long-life, reliable illumination. It resists dust, moisture, and vibration with a stainless guard and shatter-resistant lens. With IP66, NEMA 4X, and NEC/CEC classifications, plus Class I, Division 1; Class II, Division 1; Class III ratings, it meets stringent hazardous-location requirements. This efficient LED module provides 9,000 lumens at 107 lm/W, 120–277 VAC operation, and copper-free aluminum construction for durability. The result is increased uptime, lower maintenance costs, and safer operations across industrial applications, supported by UL certifications and vendor literature.
Product Information
Extended Description
EVLLA9LCCX31-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Cool white, 175W-250W HID equivalent, Stainless steel guard, Shatter-resistant glass lens, 9000 lumens, 107 lm/W, Copper-free aluminum, Ceiling mount, 1", 120-277 Vac, 81W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA9LCCX31-UNV1
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.88 lb
UPC
662276990616
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
107
Color temperature
Cool white
Mounting Method
Ceiling
Equivalent luminaire
175W-250W HID
Trade size
1"
Guard type
Stainless steel
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
81W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
IF 1914 - EVLLA Hazard-Gard LED Luminaire Driver Replacement
Eaton Specification Sheet - EVLLA9LCCX31-UNV1
Eaton Specification Sheet - EVLLA9LCCX31-UNV1
High lumen output with efficiency drives better visibility and lower energy costs. This 9,000-lumen, 107 lm/W LED module reduces the number of fixtures required to reach target lighting levels, translating to tangible energy savings and simplified maintenance planning in manufacturing and process areas. Protection and durability are built in with IP66 and NEMA 4X guarding, shielding against dust, water ingress, and washdowns, extending service life in harsh environments such as chemical plants and outdoor facilities. Hazardous-location compliance is clear with Class I Division 1; Class II Division 1; Class III ratings, enabling safe operation in explosive atmospheres without sacrificing performance. Flexible power and installation options include 120–277 VAC operation and a dimmable driver, supporting retrofit projects and varied control strategies. Copper-free aluminum construction and a stainless steel guard offer corrosion resistance, reducing long-term maintenance costs in coastal or industrial washdown settings. Overall lifecycle costs are reduced through long life, low maintenance, and robust safety features that align with industry standards.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA9LCCX31-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA9LCCX31-UNV1?
Enquire Now
FAQs
EVLLA9LCCX31-UNV1 is designed for ceiling mounting with a 1" trade size, suitable for 120–277 VAC, 50/60 Hz systems. It carries IP66 and NEMA 4X protection and is rated for Hazardous/Classified Locations (Class I, Division 1; Class II, Division 1; Class III). When planning retrofits or new installs, verify enclosure integrity, wiring allowances, and control system compatibility with dimmable drivers to maximize energy efficiency and uptime.
The fixture delivers 9,000 lumens at 107 lm/W with an 81W input. It operates on 120–277 VAC and supports 50/60 Hz, with a dimmable driver option. Constructed from copper-free aluminum and featuring a stainless guard, it combines high efficiency with robust durability suitable for harsh environments and heavy-duty industrial use.
Yes. The EVLLA9LCCX31-UNV1 is engineered for hazardous locations and aligns with Class I, Division 1; Class II, Division 1; Class III ratings. Its IP66/NEMA 4X protection and rugged guard enable safe installation in oil & gas, mining, refinery, and other potentially explosive atmospheres, while delivering reliable illumination and consistent performance.
The fixture complies with NEC/CEC standards for hazardous locations and is rated IP66 with a NEMA 4X enclosure. It is designed for hazardous-classification environments and is supported by UL documentation and recognized literature, ensuring alignment with industry safety and performance expectations.
LED longevity and robust construction reduce replacement frequency and maintenance labor in hazardous zones. The 9,000-lumen output provides fewer fixtures per area, lowering initial procurement and installation costs. With energy efficiency (107 lm/W) and durable materials, operators typically experience improved uptime, safer operations, and a favorable total cost of ownership in demanding facilities.
