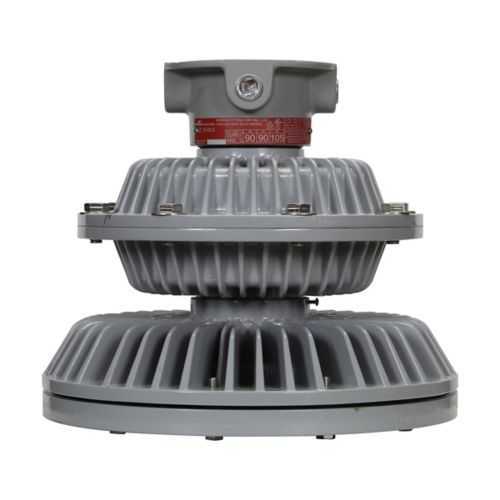

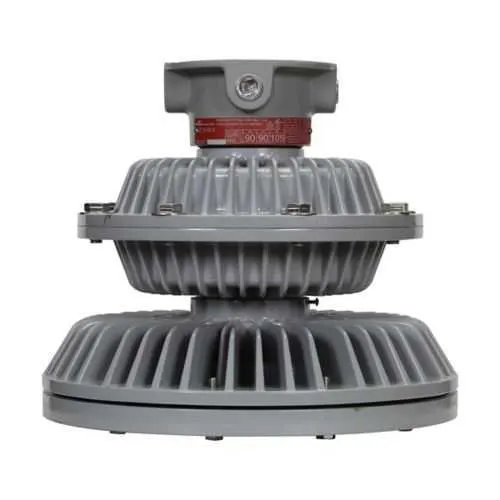

Eaton EVLLA9LWCX30-UNV34 LED Light Fixture - IP66 Hazardous Locations

Part Number: EVLLA9LWCX30-UNV34
EVLLA9LWCX30-UNV34
Manufacturer
Eaton Crouse-Hinds
Part number
EVLLA9LWCX30-UNV34
Category

Quick Summary

EVLLA9LWCX30-UNV34 is a high-efficiency LED luminaire designed for hazardous locations in industrial facilities. Facilities often struggle with unreliable lighting that fails in explosion-risk zones, causing downtime and compliance concerns. It carries NEC/CEC hazardous location ratings, IP66 ingress protection, and a NEMA 4X enclosure, strengthening safety and durability. With energy efficiency and long life, it supports maintenance optimization and sustainability goals while simplifying procurement for retrofit or new-build projects. This makes it a practical choice for retrofits and new builds in chemical plants, refineries, and other heavy industries.

Product Information

Extended Description

EVLLA9LWCX30-UNV34 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 175W-250W HID equivalent, No guard, Shatter-resistant glass lens, 9000 lumens, 107 lm/W, Copper-free aluminum, Ceiling mount, 1", 347-480 Vac, 81W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA9LWCX30-UNV34
Product Length/Depth
16.32 in
Product Height
14.48 in
Product Width
16.32 in
Product Weight
55.88 lb
UPC
662276991347
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
107
Color temperature
Warm white
Mounting Method
Ceiling
Equivalent luminaire
175W-250W HID
Trade size
1"
Guard type
No guard
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
81W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLL LED brochure Crouse-Hinds series Hazard-Gard EVLLA LED catalog page Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification IF 1913 - EVLLA Hazard-Gard LED Luminaire IF 1913 - EVLLA Hazard-Gard LED Luminaire Hazard-Gard EVLL LED Explosionproof Hazard-Gard EVLL LED Explosionproof
The EVLLA9LWCX30-UNV34 delivers 9000 lumens at 81W with 107 lm/W and warm white output, providing bright, uniform illumination that can reduce fixture counts and lower energy costs in large spaces. In hazardous environments, lower fixture density also simplifies wiring and reduces maintenance exposure. The unit features hazardous-location ratings IP66 and NEMA 4X, along with 347-480 VAC and 50/60 Hz compatibility, supporting strict regulatory compliance and easy integration with existing plant controls. Copper-free aluminum housing and a shatter-resistant lens deliver corrosion and impact resistance, reducing replacement cycles in harsh atmospheres. Ceiling mounting with a 1" trade size simplifies retrofits and new installations, while a dimmable driver and PF >0.90 enable effective lighting control and energy savings. The lens assembly accommodates 2 x 3/4" NPT metal threads and an Ex-d threaded plug, offering versatile conduit options for robust, long-life installations.

Get a Quick Quote for a Eaton Crouse-Hinds EVLLA9LWCX30-UNV34

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EVLLA9LWCX30-UNV34? Enquire Now

FAQs

Installation in Class I, Division 1 environments requires secure ceiling mounting and proper enclosure integrity. EVLLA9LWCX30-UNV34 uses a ceiling mounting method with a 1" trade size and supports conduit connections via 2 x 3/4" NPT lens threads and an Ex-d threaded plug. Ensure seals and gaskets are intact to preserve IP66/NEMA 4X protection, and follow the manufacturer’s installation sheets for wiring and control integration.
The luminaire operates at 347-480 VAC with a 50/60 Hz frequency rating and features a dimmable driver with a power factor greater than 0.90. It delivers 9000 lumens at 107 lm/W with an 81W draw, enabling compatibility with high-voltage industrial power systems while maintaining efficient, controllable lighting and minimal harmonic distortion in shared facilities.
Yes. EVLLA9LWCX30-UNV34 is designed for Hazardous/Classified Locations and carries NEC/CEC hazardous location ratings, IP66 ingress protection, and a NEMA 4X enclosure. Its copper-free aluminum housing and shatter-resistant lens further enhance resistance to corrosion and impact, making it suitable for chemical plants, refineries, and offshore or marine environments where robust explosion-proof lighting is required.
EVLLA9LWCX30-UNV34 aligns with NEC/CEC hazardous location standards and offers IP66 ingress protection with a NEMA 4X enclosure. It is rated for Hazardous/Classified Locations, reinforcing compliance in Division 1 environments. These certifications simplify audits, reduce risk, and support installation in areas with strict safety and environmental requirements.
Replacing HID with this LED luminaire typically yields lower energy consumption (81W vs HID equivalents) and longer service life, reducing maintenance cycles and outages. The 9000-lumen output provides ample brightness with fewer fixtures, improving operating efficiency. Expect faster payback through energy savings, reduced ballast failures, and lower replacement costs in harsh, hazardous settings.
