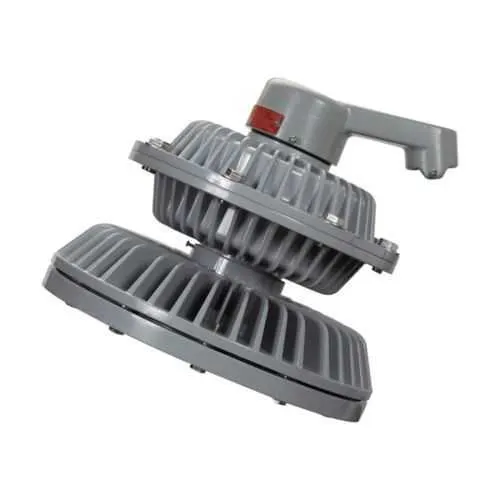

Eaton Crouse-Hinds EVLLA9LWJ50-UNV1 LED Light Fixture - IP66
Part Number: EVLLA9LWJ50-UNV1
Quick Summary
The Eaton Crouse-Hinds Hazard-Gard EVLLA LED light fixture provides reliable hazardous-location illumination for industrial facilities. The EVLLA model addresses downtime and maintenance challenges by delivering rugged, long-life lighting in demanding environments. This luminaire meets NEC/CEC standards, is IP66 protected, and carries a NEMA 4X enclosure rating for use in Class I, Division 1 locations. By combining high lumen output with a dimmable driver and copper-free aluminum housing, it reduces energy costs and extends service life. Its stanchion 25° angled mount and 1-1/2 inch trade size simplify installation in busy facilities, delivering measurable value to maintenance and procurement teams.
Product Information
Extended Description
EVLLA9LWJ50-UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture, Warm white, 175W-250W HID equivalent, No guard, Shatter-resistant glass lens, 9000 lumens, 107 lm/W, Copper-free aluminum, Stanchion 25° angled mount, 1-1/2", 120-277 Vac, 81W
Product Name
Eaton Crouse-Hinds series Hazard-Gard EVLLA LED light fixture
Catalog Number
EVLLA9LWJ50-UNV1
Product Length/Depth
18.09 in
Product Height
16.05 in
Product Width
18.09 in
Product Weight
57.88 lb
UPC
662276993204
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
9000
Lumens per watt
107
Color temperature
Warm white
Mounting Method
Stanchion 25° angled
Equivalent luminaire
175W-250W HID
Trade size
1-1/2"
Guard type
No guard
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Material
Copper-free aluminum
Lens material
2 x 3/4" NPT metal thread, 1 x 3/4" Ex-d threaded plug
Wattage
81W
Dimming
Dimmable driver
Power factor
> 0.90
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLL LED brochure
Crouse-Hinds series Hazard-Gard EVLLA LED catalog page
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
Hazard-Gard EVLLA Explosionproof LED Light Fixtures UL certification
IF 1913 - EVLLA Hazard-Gard LED Luminaire
IF 1913 - EVLLA Hazard-Gard LED Luminaire
Hazard-Gard EVLL LED Explosionproof
Hazard-Gard EVLL LED Explosionproof
Feature: 9000 lumens at 107 lm/W with warm white color provides high-intensity hazardous-location illumination while using only 81W. Business impact is fewer fixtures needed to achieve the same brightness, reducing installation and energy costs. This is ideal for long aisles, gantries, and high-ceiling areas common in chemical plants and refineries where reliability matters. Feature: IP66 ingress protection with a NEMA 4X enclosure ensures reliable operation in dusty and wet environments. Combined with a shatter-resistant glass lens, the luminaire minimizes outages from moisture, dust, or impact, reducing maintenance frequency and downtime. Feature: Hazardous location readiness with NEC/CEC compliance and Class I, Division 1 compatibility. This reduces compliance risk and supports safe operation in oil, gas, and chemical processing facilities. Feature: Copper-free aluminum housing and rugged construction resist corrosion in aggressive environments, extending service life and lowering replacement intervals. The design is optimized for outdoor and harsh indoor spaces, improving total cost of ownership. Feature: Mounting flexibility with a stanchion 25° angled mount and 1-1/2 inch trade size enables quick retrofits and adaptable installation in congested installations, saving time during commissioning. Feature: Dimmable driver and 120-277 VAC operation offer energy-management flexibility and compatibility with existing control systems, facilitating progressive lighting upgrades without wholesale system changes.
Get a Quick Quote for a Eaton Crouse-Hinds EVLLA9LWJ50-UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EVLLA9LWJ50-UNV1?
Enquire Now
FAQs
This luminaire is designed for hazardous/classified locations (Class I, Division 1) and should be mounted using the stanchion with the 25° angled orientation specified. It uses a 1-1/2 inch trade size and operates on 120-277 VAC, 50/60 Hz with a dimmable driver, supporting straightforward retrofit into existing hazardous-area fixtures.
Key specs include 9000 lumens at 107 lm/W, warm white color, 81W power, 120-277 VAC operation, 50/60 Hz, IP66 ingress protection, and a NEMA 4X enclosure. It uses a copper-free aluminum housing with a shatter-resistant lens and a dimmable driver, aligning with energy optimization goals.
Yes. The fixture is rated for Hazardous/Classified Locations with NEC/CEC compliance and Class I, Division 1 compatibility, plus IP66 and NEMA 4X protection. These features support safe operation in demanding environments such as oil & gas, chemical processing, and mining applications.
The EVLLA9LWJ50-UNV1 carries NEC/CEC standards alignment, Hazardous/Classified Locations ratings, Class I, Division 1 eligibility, NEMA 4X enclosure, and IP66 ingress protection. UL verification and related documentation are available via Eaton’s certification resources for hazardous-location lighting systems.
The 9000-lumen LED with 81W draw delivers substantial energy savings versus HID equivalents (175W-250W), reducing operating costs. Copper-free aluminum and a protective lens minimize corrosion and damage, extending service life. Easy retrofits with a 1-1/2" trade size and 25° mount also shorten installation time, improving overall return on investment.
