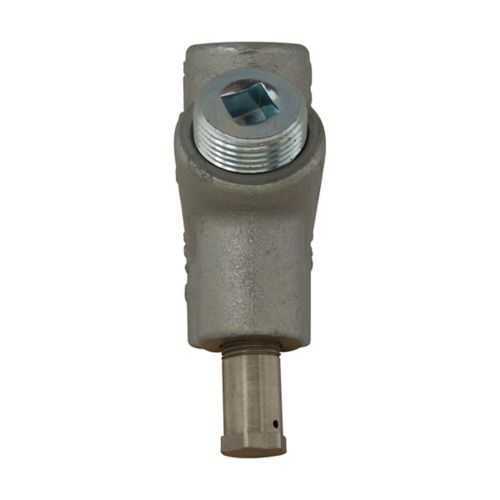

Eaton Crouse-Hinds EYD10 conduit sealing fitting - Class I, Division 1
Part Number: EYD10
Quick Summary
EYD10 conduit sealing fitting with drain protects electrical enclosures in hazardous industrial locations. When conduit systems operate in harsh environments, moisture, dust, and vibration threaten seal integrity and uptime. This model meets NEC/CEC requirements and is rated for Class I, Division 1 and other hazardous-area classifications. Using rugged Feraloy iron alloy and ductile iron, the EYD10 delivers reliable drainage and a durable vertical seal. For buyers, this translates to reduced maintenance cycles, improved safety compliance, and lower total cost of ownership across harsh-duty applications. Engineers gain assurance from documented certifications, installation instructions, and compatibility with standard 4" conduit runs. The result is faster project onboarding, fewer field modifications, and a safer seal that helps you meet strict industrial codes.
Product Information
Extended Description
EYD10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, 4"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD10
Product Length/Depth
5.25 in
Product Height
9.75 in
Product Width
5.25 in
Product Weight
16.69 lb
UPC
782274375908
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
4"
Sealing position
Vertical only
Material
Feraloy iron alloy Ductile iron
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD10
Drain-enabled enclosure sealing delivers reliable moisture management in harsh environments. Business impact: By allowing condensate and incidental water to escape, the EYD10 minimizes corrosion risk, preserves conductor insulation, and reduces unplanned downtime. Application: Ideal for outdoor, wet, or washdown areas in chemical plants and mining facilities where vertical runs and compact spaces demand a trusted drain-capable fitting. Feraloy iron alloy and ductile iron construction provides rugged durability. Business impact: Enhanced mechanical strength and impact resistance extend service life in harsh locations, lowering replacement costs and field rework. Application: Suitable for explosion-rated fittings in Class I and II environments, including offshore platforms and heavy industrial floors. Vertical sealing position ensures consistent orientation. Business impact: Eliminates misalignment during installation and ensures seal integrity across upward runs, reducing retrofit effort. Application: Perfect for conduit connections on elevated panels and vertical cable trays in hazardous areas. 4 inch trade size and female gender compatibility ensures easy integration. Business impact: Streamlines procurement and reduces install time by using standard components with secure fittings. Application: Complements standard 4" conduits in NEC/CEC regulated zones, enabling fast deployment in new builds and retrofits. Certifications and documentation support compliance and maintenance. Business impact: With area classification, NEC hazardous ratings, and installation sheets available, teams meet regulatory requirements and accelerate audits. Application: Works with Crouse-Hinds catalogs, specification sheets, and installation instructions for quick reference on site.
Get a Quick Quote for a Eaton Crouse-Hinds EYD10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD10?
Enquire Now
FAQs
EYD10 is designed for vertical installations in hazardous locations, with a vertical sealing position that simplifies alignment and reduces the need for rework. The female connection and 4 inch trade size integrate smoothly with standard conduits, while the drain feature provides ongoing moisture control. This combination minimizes leaks, protects insulation, and speeds up field wiring during retrofit or new-build projects.
EYD10 employs a drain-capable sealing interface that drains condensate away from the enclosure, reducing corrosion risk and insulation degradation. Its Feraloy iron alloy and ductile iron construction deliver high impact resistance and long service life in wet, dusty environments. Designed for 4 inch trade-size conduits, it maintains a tight seal under vibration and temperature cycling typical of industrial facilities.
Yes. EYD10 is rated for hazardous/classified locations and carries NEC/CEC compliance with Class I, Division 1 and Division 2, Class II, Division 1 and 2, and Class III ratings. Its vertical orientation and drain feature are particularly valuable in oil, gas, chemical processing, mining, and heavy manufacturing environments where enclosure integrity and moisture control are critical.
EYD10 carries NEC/CEC standards compliance and area-classification labeling for Hazardous/Classified Locations. Canadian certification is documented through UL listings, and the product meets multiple NEC hazardous ratings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. This documentation supports regulatory audits and safe procurement for global projects.
By enabling condensate drainage and delivering a robust seal, EYD10 reduces corrosion, minimizes unplanned downtime, and extends service intervals in hazardous installations. The durable Feraloy/ductile-iron construction withstands vibration and temperature cycling, lowering replacement costs. Standard 4" wiring compatibility and NEC/CEC compliance shorten installation time and simplify audits, translating to lower total cost of ownership.
