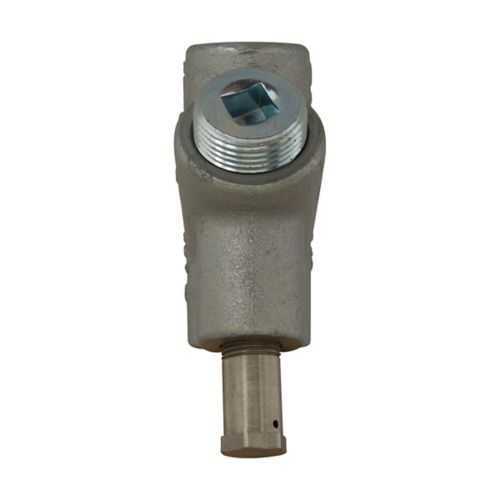

Eaton EYD2 Conduit Sealing Fitting - Hazardous Locations
Part Number: EYD2
Quick Summary
EYD2 conduit sealing fitting delivers reliable sealing for hazardous-location electrical enclosures in industrial plants. Maintenance teams often struggle with drainage and ingress, leading to delays and noncompliance during outdoor or washdown cycles. This device is certificated for NEC/CEC standards and UL hazardous-location listings, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III area classifications, strengthening safety and compliance posture. The vertical-sealing design with drain minimizes water ingress and reduces maintenance cycles. Its 3/4" trade size and ductile iron construction deliver robust durability, while compatibility with standard Eaton Crouse-Hinds components accelerates installation and reduces total cost of ownership for industrial wiring and electrical infrastructure.
Product Information
Extended Description
EYD2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, 3/4"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD2
Product Length/Depth
1.5 in
Product Height
3.69 in
Product Width
1.5 in
Product Weight
1.22 lb
UPC
782274375205
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
3/4"
Sealing position
Vertical only
Material
Ductile iron Feraloy iron alloy
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain UL certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain UL certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD2
Vertical-sealing with drain reduces water ingress and simplifies drainage, shortening field troubleshooting and lowering maintenance costs in damp environments. The ductile iron body with Feraloy iron alloy enhances mechanical strength and corrosion resistance, boosting uptime in harsh industrial settings and meeting explosion-proof requirements through robust construction. A 3/4" trade size and female connection ensures straightforward compatibility with common conduit runs and standard fittings, reducing on-site labor and inventory variety while speeding up commissioning. NEC/CEC compliance and UL hazardous-location listings provide regulatory assurance for Class I, II, and III environments, minimizing rework and accelerating approvals in refineries, chemical plants, and mining sites. The vertical orientation is optimized for drainage-focused installations, and the unit integrates smoothly with other Crouse-Hinds sealing fittings to simplify spare-part planning and maintenance margins. Field-readiness is enhanced by documented installation guidance and readily available datasheets, improving total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds EYD2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD2?
Enquire Now
FAQs
EYD2 is a 3/4 inch trade-size conduit sealing fitting with a female connection. It uses ductile iron or Feraloy iron alloy and includes a drain port for effective water drainage. Confirm your conduit type and enclosure clearance, and note the unit is specified for vertical sealing only to ensure proper drainage and compliance.
Yes. The EYD2 is listed for Hazardous/Classified Locations under NEC/CEC standards and UL certifications, including Class I Division 1 and Division 2, as well as Class II Division 1 and 2 and Class III. This makes it appropriate for explosion-proof applications in refineries, chemical plants, and other hazardous environments, helping you meet regulatory requirements with a single component.
Yes. The product specification indicates a vertical sealing position, and the drain feature is designed to function correctly in that orientation. This orientation supports reliable drainage in damp or washdown situations and should be followed to maintain compliance and performance.
A range of resources supports installation and compliance, including the IF 287 Conduit Sealing instruction sheet, the Crouse-Hinds EYD and EZD sealing fittings catalog page, and the Eaton specification sheet for EYD2. These documents provide step-by-step guidance, dimensional data, and certification references to streamline field assembly and audits.
The EYD2 reduces downtime by improving drainage and sealing in hazardous locations, lowers rework risk through NEC/CEC and UL certifications, and accelerates installation with a compatible 3/4" female, ductile-iron body. Overall, it lowers total cost of ownership by reducing maintenance cycles, speeding up commissioning, and supporting compliant, durable electrical installations in demanding industries.
