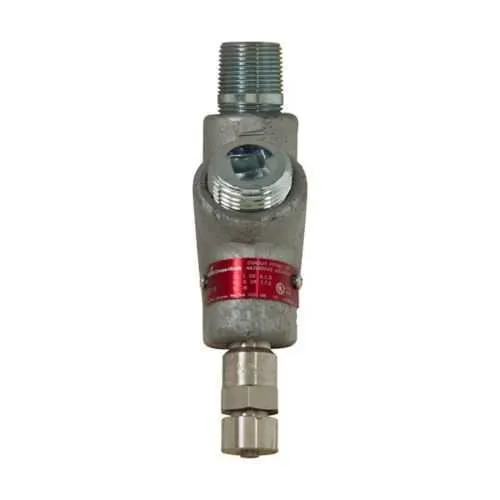

Eaton Crouse-Hinds EYD216 Conduit Sealing Fitting - Group B
Part Number: EYD216
Quick Summary
EYD216 conduit sealing fitting with drain provides reliable sealing for 3/4" conduits in hazardous locations. Many installations struggle with moisture ingress, corrosion, and hazardous atmosphere leakage when conduit seals fail or drains clog. The unit is NEC/CEC compliant and rated for hazardous locations, including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with a Group B rating. Its ductile iron/feraloy construction and vertical sealing orientation are designed for rugged industrial environments. By combining robust explosion-proof conduit sealing with a drain, it supports safer, compliant installations while reducing maintenance cycles and replacement costs. Ideal for industrial automation panels and rugged electrical rooms where reliability and compliance matter.
Product Information
Extended Description
EYD216 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Male and female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 3/4"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD216
Product Length/Depth
1.5 in
Product Height
3.69 in
Product Width
1.5 in
Product Weight
1.94 lb
UPC
782274365176
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Male and female
Trade size
3/4"
Sealing position
Vertical only
Material
Ductile iron Feraloy iron alloy
Special features
Group B rated
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD216
Feature: Ductile iron/feraloy iron alloy construction ensures high impact resistance and long service life. Business Impact: Reduces replacement frequency and total cost of ownership in harsh industrial settings. Application: Suitable for outdoor and in-plant installations where mechanical integrity is critical and maintenance windows are limited. Feature: Vertical sealing position with drain capability. Business Impact: Minimizes water and condensate buildup, lowering corrosion risk and shielding sensitive terminations. Application: Environments with moisture exposure or wash-down requirements, such as chemical plants or food & beverage facilities. Feature: 3/4" trade size with male and female threads. Business Impact: Simplifies retrofit and new-build integration by ensuring straightforward, compatible connections. Application: Custom conduit runs and existing installations needing reliable, quick-connect sealing. Feature: Group B rated for hazardous locations. Business Impact: Enables compliant installations across multiple hazard classes without additional enclosure changes. Application: Class I/II, Div 1/2, and Class III environments common in oil & gas, mining, and chemical processing. Feature: Material versatility with Feraloy iron alloy and ductile iron construction. Business Impact: Balances strength, resistance to corrosion, and cost efficiency. Application: Industrial automation panels and field-installed junctions exposed to heavy handling or harsh atmospheres. Feature: NEC/CEC compliance and hazardous location certifications. Business Impact: Streamlines procurement and reduces compliance risk during audits. Application: Design and installation phases requiring verified standards conformance and traceable specifications.
Get a Quick Quote for a Eaton Crouse-Hinds EYD216
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD216?
Enquire Now
FAQs
EYD216 installs with both male and female threads for easy integration into 3/4" conduit runs. Position is vertical sealing with a drain, so ensure the conduit route allows gravity drainage and that the seal interfaces with compatible EYD/EZD fittings. Use proper thread sealant and follow Eaton’s IF 287 instructions for optimal sealing integrity and maintain an internal clear drain path.
Key specs include 3/4" trade size, vertical sealing orientation, ductile iron with Feraloy iron alloy, and Group B hazardous-location rating. It is designed for male and female connections and supports Class I/II (Division 1 and 2) and Class III environments under NEC/CEC standards. Confirm dimensions (1.5 in length, 1.5 in width, 3.69 in height) and weight (approximately 1.94 lb) for fitment and handling during installation.
Yes. EYD216 is rated for Hazardous/Classified Locations under NEC/CEC and supports Class I/II, Division 1 and 2 and Class III scenarios. Its Group B rating provides a robust seal against ignition hazards when used with appropriate glands and conduits, making it suitable for many oil & gas, chemical processing, and mining environments where reliable sealing and drainage are required.
EYD216 carries NEC/CEC compliance and hazardous-location ratings (Area classification). It is certified for use in Hazardous/Classified Locations with Class I, Division 1/2 and Class II, Division 1/2 and Class III, and is Group B rated. These certifications help streamline regulatory approvals and support safety-focused installation practices.
The drain-equipped, vertical-sealing design reduces moisture buildup and corrosion, lowering maintenance cycles and extending component life. Ductile/ferroalloy materials offer strong mechanical resilience, reducing replacement costs. The standard 3/4" size and compatibility with standard fittings accelerate installation, improving project timelines and overall ROI for hazardous-location conduit networks.
