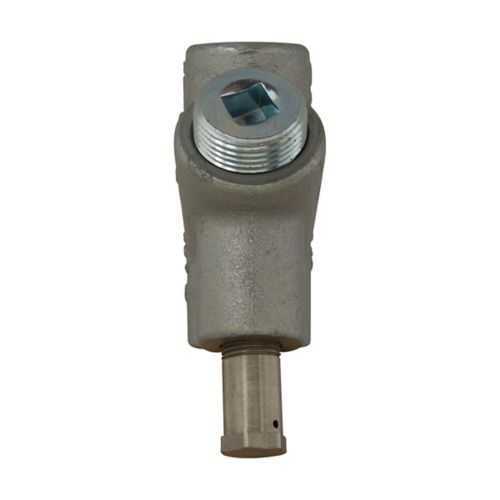

Eaton Crouse-Hinds EYD6 conduit sealing fitting - Explosionproof
Part Number: EYD6
Quick Summary
EYD6 conduit sealing fitting with drain protects hazardous-location conduits in industrial settings by providing a reliable, drain-enabled seal at the conduit seal point. This design addresses a common pain point: moisture ingress that leads to corrosion, downtime, and costly maintenance in harsh environments. It supports NEC/CEC compliance and hazardous-location approvals, including Class I Division 1 and Division 2, Class II Division 1 and Division 2, and Class III, with area classifications for Hazardous/Classified Locations. With a 2 in trade size, vertical sealing position, and the option of Feraloy iron alloy or ductile iron, installation is straightforward and robust for long service life. In short, it reduces field rework, improves safety, and supports faster commissioning on critical lines.
Product Information
Extended Description
EYD6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, 2"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD6
Product Length/Depth
3 in
Product Height
6.25 in
Product Width
3 in
Product Weight
4.7 lb
UPC
782274375601
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
2"
Sealing position
Vertical only
Material
Feraloy iron alloy Ductile iron
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD6
Feature: Drain-enabled sealing design for conduit joints. Business Impact: Minimizes moisture-related corrosion and ingress, extending service life and reducing maintenance downtime. Application: Use in outdoor or damp plant areas where drainage is critical for reliability. Long-tail keywords: explosionproof conduit fittings, drain conduit sealing, moisture protection in hazardous locations. Feature: Vertical sealing position. Business Impact: Ensures effective drainage and seal performance with gravity-assisted drainage, lowering leak risk. Application: Preferred in vertical conduit runs or overhead installations. Long-tail keywords: vertical conduit seal, seal position, overhead installation. Feature: Rugged materials—Feraloy iron alloy and/or ductile iron. Business Impact: High mechanical strength and corrosion resistance improve lifecycle costs and safety margins. Application: Suitable for harsh chemical and industrial environments. Long-tail keywords: feraloy iron alloy, ductile iron, corrosion resistance. Feature: 2 inch trade size, female configuration. Business Impact: Aligns with common conduit fittings, reducing labor and part variety in the field. Application: Streamlined integration into standard electrical raceways. Long-tail keywords: 2 in trade size, female conduit fittings, standard conduit connections. Feature: NEC/CEC compliance and hazardous-location ratings. Business Impact: Accelerates approvals, reduces compliance risk, and simplifies commissioning. Application: Essential for oil & gas, chemical processing, and other regulated plants. Long-tail keywords: NEC/CEC, Class I Div 1, hazardous locations, compliance assurance. Feature: Canadian certification and catalog resources. Business Impact: Supports cross-border projects with verified Canadian compliance and accessible installation instructions. Application: Useful for multinational facilities and distributors supplying North American sites.
Get a Quick Quote for a Eaton Crouse-Hinds EYD6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD6?
Enquire Now
FAQs
When installing the EYD6, orient the fitting with the sealing position vertical as specified, connect to standard 2 in trade size conduit, and ensure compatibility with either feraloy iron alloy or ductile iron bodies. Use appropriate seals and gaskets, and follow NEC/CEC guidelines for Hazardous/Classified Locations to maintain compliance and optimize performance.
EYD6 carries NEC/CEC compliance and hazardous-location ratings including Class I Division 1 and Division 2, Class II Division 1 and Division 2, and Class III, plus area classifications for Hazardous/Classified Locations. These certifications matter because they verify suitability for installation in explosive or potentially hazardous environments, reducing risk and speeding up regulatory approvals.
Yes, the EYD6 is specified for vertical sealing only. If your layout requires horizontal sealing, consider alternative models designed for horizontal installation. When sticking to the vertical requirement, ensure the drain orientation aligns with the conduit run to maintain effective moisture management and seal integrity.
The EYD6 uses Feraloy iron alloy and/or ductile iron, offering high mechanical strength and corrosion resistance suitable for harsh environments. Material choice can influence impact resistance, wear performance, and long-term durability in chemical plants, offshore facilities, and other demanding settings.
The drain feature reduces moisture buildup and corrosion-related failures, lowering maintenance costs and downtime. Combined with NEC/CEC compliance and robust materials, the EYD6 accelerates installation, minimizes rework, and delivers longer service life, translating to lower total cost of ownership in hazardous-location installations.
