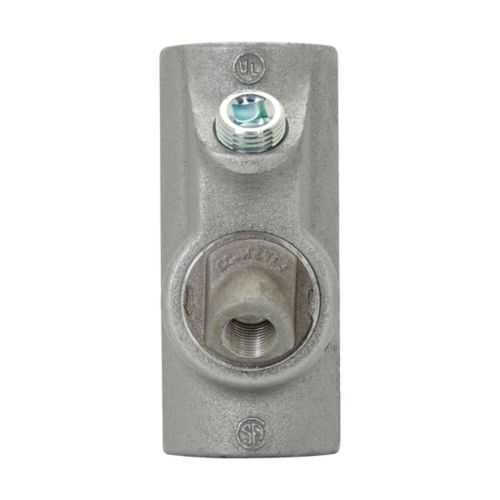

Eaton Crouse-Hinds EYD7 Conduit Sealing Fitting - Hazardous
Part Number: EYD7
Quick Summary
EYD conduit sealing fittings provide drainage and sealing for hazardous-location conduit systems in industrial facilities. This design addresses moisture intrusion and corrosion risk that frequently disrupts uptime and compliance during start-up and routine maintenance. It is built to NEC/CEC standards and rated for Hazardous/Classified locations, including Class I Division 1 and 2 and Class II and III environments, ensuring safe operation under demanding conditions. The EYD7 combines a vertical sealing position with durable materials to streamline installation, reduce field rework, and extend service life. For projects prioritizing reliability, compatibility with 2-1/2" trade sizes and a drain-equipped design, this fitting offers a clear value path for electrical and process teams.
Product Information
Extended Description
EYD7 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, 2-1/2"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD7
Product Length/Depth
3.5 in
Product Height
7.5 in
Product Width
3.5 in
Product Weight
7.38 lb
UPC
782274375700
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
2-1/2"
Sealing position
Vertical only
Material
Feraloy iron alloy Ductile iron
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD7
Feature: 2-1/2" trade size fits standard conduit runs. Business Impact: Minimizes the need for adapters and custom machining, accelerating on-site assembly. Application: Suitable for mid-size feeder runs in hazardous locations. Feature: Female gender with drain capability. Business Impact: Drains residual moisture, reduces corrosion, and lowers maintenance cycles. Application: Explosive atmosphere installations where moisture is a risk. Feature: Vertical sealing position. Business Impact: Simplifies orientation in vertical conduit runs and ensures effective drainage path. Application: Vertical installations in process plants and offshore facilities. Feature: Material options include Feraloy iron alloy and/or ductile iron. Business Impact: Delivers robust mechanical strength and improved impact resistance in harsh environments. Application: Explosion-proof fittings subject to vibration and mechanical stress. Feature: NEC/CEC compliance and broad area classifications. Business Impact: Streamlines regulatory acceptance and reduces procurement rework. Application: Projects requiring formal hazardous-location certification. Feature: Specific product dimensions and weight (3.5 in L, 7.5 in H, 3.5 in W, 7.38 lb). Business Impact: Predictable mounting footprint and weight budgeting for panels and enclosures. Application: Field installations and retrofit projects where space is constrained. Industry context: This combination supports faster commissioning and long-term reliability in industrial automation and electrical distribution.
Get a Quick Quote for a Eaton Crouse-Hinds EYD7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD7?
Enquire Now
FAQs
The EYD7 is designed for explosion-proof environments and is suitable for Class I Division 1 and 2 locations. Ensure vertical run alignment, proper enclosure clearance, and use compatible connectors to maintain the drain path and sealing integrity. Follow IF 287 instructions for conduit sealing during installation.
Key specs include a 2-1/2" trade size, female gender, vertical-only sealing, and construction from Feraloy iron alloy and/or ductile iron. Weight is 7.38 lb with overall dimensions of roughly 3.5 in by 7.5 in by 3.5 in. These factors influence seal effectiveness and mechanical durability in hazardous environments.
Yes, the EYD7 is designed for hazardous/classified locations and is compatible with NEC/CEC standards. Its robust metal construction and drainage feature support outdoor or exposed installations where moisture and debris are concerns, provided you follow the installation guidance for vertical drainage and sealing.
The EYD7 carries NEC/CEC standards compliance and hazardous-location ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III, with area classifications for Hazardous/Classified Locations. Canadian certifications are also referenced in catalog materials.
The drain feature reduces moisture build-up inside conduits, mitigating corrosion and sealing degradation. This lowers preventive maintenance frequency, extends service life, and reduces unexpected downtime, delivering a favorable return on investment for high-risk facilities.
