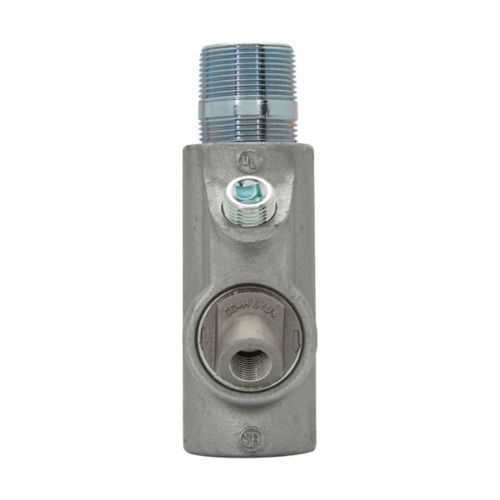

Eaton Crouse-Hinds EYD716 Conduit Sealing Fitting - Group B
Part Number: EYD716
Quick Summary
EYD716 conduit sealing fitting provides drain-equipped sealing for hazardous locations in industrial facilities. Maintenance teams confront moisture ingress, corrosion, and seal failures at conduit terminations, resulting in downtime and higher repair costs. This model complies with NEC/CEC standards and carries Hazardous/Classified Locations ratings, including Class I Division 1 and 2, Class II Division 1 and 2, Class III, with a Group B designation. Vertical installation and the male-and-female configuration support reliable field deployments, while ductile iron or Feraloy iron alloy construction delivers long-term durability in demanding environments. Compact, code-compliant sealing minimizes retrofit costs and improves safety, delivering tangible value to electrical teams in harsh facilities.
Product Information
Extended Description
EYD716 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Male and female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 2-1/2"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD716
Product Length/Depth
3.5 in
Product Height
7.5 in
Product Width
3.5 in
Product Weight
8.25 lb
UPC
782274365237
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Male and female
Trade size
2-1/2"
Sealing position
Vertical only
Material
Ductile iron Feraloy iron alloy
Special features
Group B rated
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD716
Drain-equipped, drain-enabled sealing helps prevent moisture buildup and ingress at conduit terminations, reducing corrosion risk and maintenance downtime. This translates to higher equipment uptime and safer enclosures in harsh industrial environments, especially during washdowns or indirect exposure to liquids. The durable ductile iron and Feraloy iron alloy construction offers superior impact resistance and long service life in mining, oil and gas, and chemical processing facilities, which lowers total cost of ownership. NEC/CEC compliance and hazardous location ratings give you confidence that installations meet regulatory requirements, reducing inspection risk and potential penalties while simplifying procurement for compliant projects. The male and female configuration with a 2-1/2" trade size streamlines field assembly, minimizes inventory complexity, and accelerates commissioning on new builds or retrofits. Vertical-only sealing position supports predictable drainage behavior, reducing the chance of liquid pooling in the seal during vertical runs. Availability of installation resources such as IF 287 and Eaton datasheets further reduces on-site questions and speeds up training for maintenance crews.
Get a Quick Quote for a Eaton Crouse-Hinds EYD716
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD716?
Enquire Now
FAQs
The EYD716 is a 2-1/2" trade-size conduit sealing fitting with male and female ends, designed for standard conduit systems used in hazardous locations. It integrates with common rigid conduit setups and supports straightforward field assembly, reducing compatibility concerns during retrofit projects.
EYD716 is rated for Hazardous/Classified Locations under NEC/CEC standards, including Class I Division 1 & 2, Class II Division 1 & 2, and Class III, with a Group B designation. This ensures compliance for explosive atmospheres and supports safe installation in demanding industrial environments.
Official resources include the Crouse-Hinds catalog page for EYD716, installation sheets like IF 287 for conduit sealing, and the Eaton specification sheet. These materials provide guidance on proper mounting, drainage orientation, and material compatibility to streamline field setup.
The integrated drain feature helps evacuate condensate and ingress moisture, reducing corrosion risk and seal degradation. This translates to longer seal life, fewer maintenance cycles, and improved reliability in wet or wash-down environments.
Yes. EYD716 uses ductile iron or Feraloy iron alloy, delivering high strength and abrasion resistance suitable for harsh industrial settings. Its vertical-sealing design along with Group B rating supports durable performance in demanding chemical, mining, and oil & gas applications.
