Eaton EYD916 Conduit Sealing Fitting - Group B Rated
Part Number: EYD916
Quick Summary
The Eaton EYD916 conduit sealing fitting seals and drains conduit connections for hazardous locations, enabling reliable, code-compliant electrical installations. Professionals face moisture ingress and corrosion risks in Class I/II/III environments; this fitting addresses those pains with a drain feature that minimizes standing water and corrosion pathways. It carries NEC/CEC compliance and hazardous-location ratings, including Class I Divisions 1 and 2 and Class II/III ratings, providing robust protection for demanding facilities. By delivering a rugged sealing solution with vertical orientation, it supports installation efficiency while maintaining long-term integrity in harsh environments. The combination of Group B rating and ductile iron construction pairs well with standard 3-1/2" trade-size systems, offering a practical balance of performance, safety, and total cost of ownership.
Product Information
Extended Description

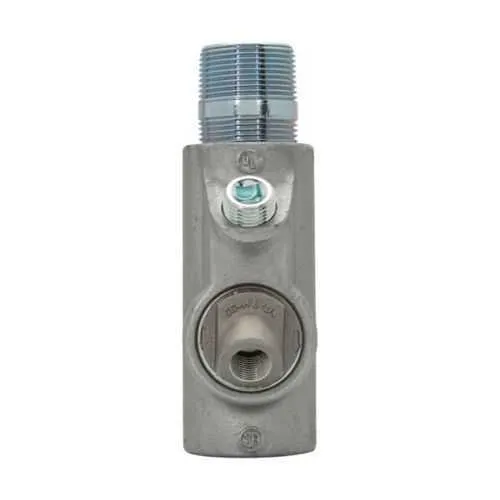

EYD916 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYD conduit sealing fitting with drain, Male and female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 3-1/2"
Product Name
Eaton Crouse-Hinds series EYD conduit sealing fitting with drain
Catalog Number
EYD916
Product Length/Depth
4.75 in
Product Height
9.19 in
Product Width
4.75 in
Product Weight
14.78 lb
UPC
782274365251
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Male and female
Trade size
3-1/2"
Sealing position
Vertical only
Material
Ductile iron Feraloy iron alloy
Special features
Group B rated
Crouse-Hinds series EYD and EZD Explosionproof Conduit Sealing Fittings with Drain catalog page
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYD and EZD Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYD916
EYD916 is a vertical conduit sealing fitting with drain, designed for hazardous locations and explosion-protected applications. Feature → Business Impact → Application: Drain-equipped design reduces moisture accumulation and corrosion risk, extending service life in wet or humid plants; application in chemical plants and offshore facilities reduces maintenance cycles and downtime. Feature → Business Impact → Application: Ductile iron and Feraloy iron alloy construction delivers high strength and impact resistance, improving reliability in rugged industrial environments; ideal for heavy-duty installations in mining or oil & gas infrastructure. Feature → Business Impact → Application: Male and female connections provide flexible compatibility with existing conduits, enabling faster field assembly and reduced inventory needs; suitable for 3-1/2" trade-size runs in new builds or retrofits. Feature → Business Impact → Application: Vertical sealing position ensures proper drainage and gravity-assisted sealing in vertical conduit runs, simplifying alignment and reducing reseal requirements; beneficial for vertical shafts and overhead installations. Feature → Business Impact → Application: Group B rated with NEC/CEC compliance and Class I/II/III ratings guarantees regulatory acceptance across multiple jurisdictions; supports compliant design in multi-site operations and reduces risk of nonconformance. Feature → Business Impact → Application: Canadian and UL certifications referenced in documentation provide extra oversight for cross-border projects; ensures meets local certification expectations while leveraging shared industry standards for explosionproof fittings.
Get a Quick Quote for a Eaton Crouse-Hinds EYD916
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYD916?
Enquire Now
FAQs
EYD916 is designed for 3-1/2" trade-size conduit with male and female connections, supporting versatile field assembly. Its ductile iron/Feraloy alloy construction handles demanding environments, while the vertical sealing configuration simplifies alignment in vertical runs. This compatibility reduces rework and inventory needs, improving installation efficiency and long-term reliability in hazardous-location facilities.
EYD916 carries NEC/CEC compliance and NEC hazardous ratings across Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III. It is designed for Hazardous/Classified Locations and supports Group B rated service. These certifications ensure regulatory acceptance in diverse industries, including oil & gas, chemical processing, and mining, while aligning with safety and performance expectations.
Yes. Documentation references Canadian certifications via UL, indicating suitability for use in Canada. This includes the EYD/EZD sealing fittings line with drain, providing cross-border assurance for projects that require UL-listed explosionproof components and compliance with Canadian safety standards.
The drain in EYD916 prevents water accumulation inside the conduit seal, reducing corrosion risk and moisture-related degradation. This translates to longer service life, fewer reseals or replacements, and lower maintenance costs in wash-down areas, chemical plants, and offshore facilities where moisture exposure is common.
Ideal for hazardous-location applications such as oil and gas, chemical processing, mining, and water treatment. The combination of vertical drain, Group B rating, and NEC/CEC conformity makes it suitable for explosionproof conduit sealing in areas with strict regulatory requirements, where reliable sealing and drainage are essential for uptime and safety.
