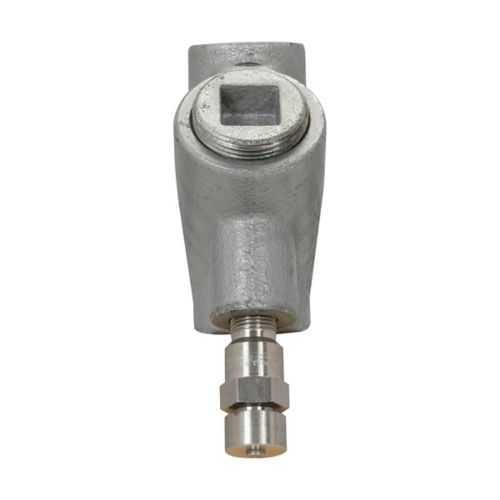

Eaton Crouse-Hinds EYDX51 Fitting - Group B Rating

Part Number: EYDX51
EYDX51
Manufacturer
Eaton Crouse-Hinds
Part number
EYDX51
Category

Quick Summary

EYDX51 is an expanded fill sealing fitting for explosion-proof conduit systems in hazardous locations. Maintenance teams face moisture ingress and downtime when fittings lack drain options, sealing integrity, and easy inspection access. It delivers NEC/CEC compliance with hazardous location ratings Class I, Division 1 and 2; Class II, Division 1 and 2; Class III, plus UL-listed Canadian certification for additional assurance. The vertical-only sealing position and 1-1/2 inch trade size simplify installation in vertical runs, while the durable Feraloy iron alloy and/or ductile iron construction improves longevity in tough environments. These attributes translate to lower lifecycle costs and faster, safer system upgrades for industrial facilities.

Product Information

Extended Description

EYDX51 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYDX expanded fill sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 1-1/2"
Product Name
Eaton Crouse-Hinds series EYDX expanded fill sealing fitting with drain
Catalog Number
EYDX51
Product Length/Depth
3 in
Product Height
6.25 in
Product Width
3 in
Product Weight
6.85 lb
UPC
782274943046
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
1-1/2"
Sealing position
Vertical only
Material
Feraloy iron alloy Ductile iron
Special features
Group B rated
Crouse-Hinds series EYDX Expanded Fill Explosionproof Conduit Sealing Fittings w/ Drain catalog page EYDX Expanded Fill Explosionproof Conduit Sealing Fittings with Drain Canadian certification EYDX Expanded Fill Explosionproof Conduit Sealing Fittings with Drain Canadian certification IF 288 - EYSX and EYDX Expanded Sealing Fitting Eaton Specification Sheet - EYDX51
Feature: Durable material composition (Feraloy iron alloy and/or ductile iron) → Business Impact: Increased wear resistance and long-term durability in harsh environments → Application: Ideal for oil, gas, chemical, mining, and heavy manufacturing where exposure to moisture, vibrations, and corrosive atmospheres is common. Feature: Drain capability within the EYDX51 → Business Impact: Moisture management reduces corrosion pathways and condensation buildup → Application: Critical in vertical installations and enclosures where drainage is essential for reliability and uptime. Feature: Vertical sealing position only → Business Impact: Simplified, predictable installation and seal integrity in vertical runs → Application: Wireless/compact installations in racks, conduits, and hazardous-area enclosures where gravity aids drainage. Feature: Trade size 1-1/2" and female connection → Business Impact: Seamless compatibility with standard conduit systems lowers field modification costs → Application: Fast retrofits and new builds in process plants and warehouses. Feature: Group B rating and NEC/CEC compliance → Business Impact: Regulatory clearance reduces risk and accelerates project approvals → Application: Suitable for Class I, II, III hazardous locations across multiple jurisdictions, including Canadian installations.

Get a Quick Quote for a Eaton Crouse-Hinds EYDX51

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds EYDX51? Enquire Now

FAQs

EYDX51 is designed for vertical sealing with a 1-1/2 inch trade size, Female connection, and drain feature. This simplifies alignment in vertical conduits, reduces seal failure risks, and speeds up installation in hazardous environments while maintaining compliance with NEC/CEC and Class I/II/III ratings.
EYDX51 carries NEC/CEC compliance, hazardous location ratings (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III), and UL Canada certification. These certifications help ensure regulatory eligibility, safer operation in explosive atmospheres, and smoother cross-border commissioning for industrial facilities.
Yes. EYDX51 is a 1-1/2" trade size, female fitting designed for standard conduit systems. Its vertical sealing orientation and drain features reduce installation complexity, enable faster retrofit projects, and improve field reliability in tight or vertical runs common in factories and plants.
EYDX51 uses Feraloy iron alloy and/or ductile iron, providing strong mechanical strength and corrosion resistance. This material combination is well-suited for aggressive environments found in oil, gas, chemical plants, and mining operations, extending service life and lowering replacement costs.
The drain feature and robust sealing reduce moisture-related seal failures, minimizing maintenance cycles and downtime. Coupled with NEC/CEC compliance and Group B rating, EYDX51 supports safer installations and faster project approvals, delivering lower lifecycle costs and improved uptime across hazardous-location facilities.
