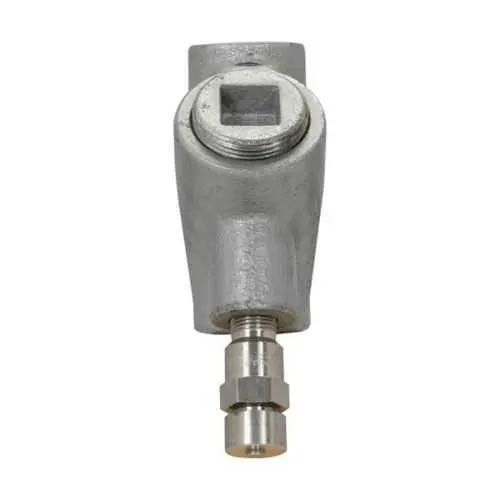

Eaton EYDX61 Expanded Fill Sealing Fitting - Class I/Div 1
Part Number: EYDX61
Quick Summary
EYDX61 expanded fill sealing fitting with drain is designed for hazardous locations and provides reliable conduit sealing. Maintenance teams often confront moisture ingress and field leaks that drive costly repairs and unplanned downtime. This EYDX61 is built to NEC/CEC hazardous-location standards and supports Class I, Division 1 service, with additional Canadian certification and Group B rating for broader compliance. Its rugged Feraloy iron alloy and ductile-iron body, 2 inch trade size, vertical sealing orientation, and drain capability streamline installation, reduce spare-part variety, and improve overall uptime in demanding industrial environments. The design supports long service life in demanding process plants. Choose EYDX61 when you need durable sealing with reliable drainage in hazardous areas.
Product Information
Extended Description
EYDX61 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYDX expanded fill sealing fitting with drain, Female, Feraloy iron alloy and/or ductile iron, Vertical only, Group B rated, 2"
Product Name
Eaton Crouse-Hinds series EYDX expanded fill sealing fitting with drain
Catalog Number
EYDX61
Product Length/Depth
4.25 in
Product Height
8.5 in
Product Width
4.25 in
Product Weight
15.5 lb
UPC
782274943060
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Gender
Female
Trade size
2"
Sealing position
Vertical only
Material
Feraloy iron alloy Ductile iron
Special features
Group B rated
Crouse-Hinds series EYDX Expanded Fill Explosionproof Conduit Sealing Fittings w/ Drain catalog page
EYDX Expanded Fill Explosionproof Conduit Sealing Fittings with Drain Canadian certification
EYDX Expanded Fill Explosionproof Conduit Sealing Fittings with Drain Canadian certification
IF 288 - EYSX and EYDX Expanded Sealing Fitting
Eaton Specification Sheet - EYDX61
Expanded fill sealing with drain delivers a robust barrier against moisture ingress, minimizing corrosion risk and sealing failures. This translates to fewer maintenance calls and lower total cost of ownership in hazardous locations. Use it in chemical plants, refineries, and offshore installations where continuous operation matters. The vertical sealing position simplifies alignment in tight enclosures and reduces installation time, improving field productivity and consistency across crews. Material construction from Feraloy iron alloy and ductile iron delivers durability and corrosion resistance, translating to longer service life in harsh environments and lower replacement costs. NEC/CEC compliance and multiple hazardous location ratings provide risk reduction and audit-friendly documentation for regulated facilities. The 2 inch trade size aligns with common conduit inventories, while Group B rating broadens applicability across demanding chemical and petrochemical plants. Compatibility with EYDX components and clear installation instructions enable faster, error-free field assembly and lower training costs.
Get a Quick Quote for a Eaton Crouse-Hinds EYDX61
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYDX61?
Enquire Now
FAQs
For EYDX61, plan vertical mounting to leverage the drain feature and maintain drainage flow. Follow IF 288 installation instructions, use compatible EYDX seals and gaskets, and ensure enclosure cleanliness. Verify clearance around seals and perform a post-install leak/drain check to confirm performance in Zone 1/Division 1 settings.
Yes. EYDX61 is specified to NEC/CEC hazardous-location standards and supports Class I, Division 1 service, with Group B rating and Canada certification. Always verify local code applicability and use listed accessories; follow Eaton's installation instructions to maintain compliance and safe operation in hazardous areas.
EYDX61 is a 2 in trade-size, female sealing fitting constructed from Feraloy iron alloy and ductile iron. It features a vertical sealing position and a drain, with a weight of approximately 15.5 lb and overall dimensions near 4.25 in by 8.5 in by 4.25 in, as listed on the product spec sheet.
Yes. EYDX61 is designed to be used with the Eaton Crouse-Hinds EYDX series and other standard explosion-proof conduit fittings. When integrating, use matching materials, ensure drain features are properly maintained, and follow listed installation guides such as IF 288 for consistent performance and certification integrity.
EYDX61 reduces maintenance due to its drain-enabled moisture management and robust sealing, lowering corrosion risk. While initial cost may be higher than non-drain fittings, the long-term ROI comes from fewer seal replacements, longer maintenance intervals, and safer operation in hazardous zones, translating to reduced downtime and improved plant availability.
