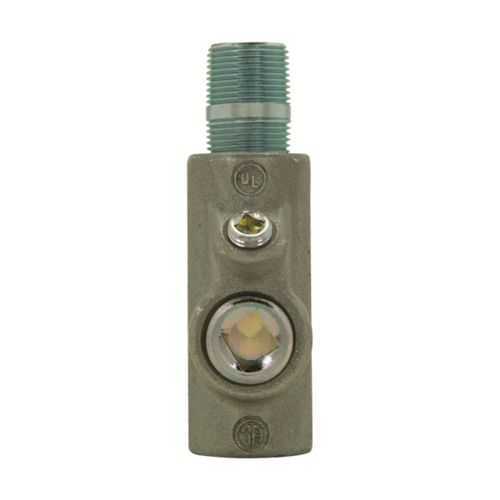

Eaton Crouse-Hinds EYS516 Conduit Sealing Fitting - Group B
Part Number: EYS516
Quick Summary
EYS516 conduit sealing fitting delivers rugged sealing for 1-1/2" conduit in hazardous locations. This solution addresses recurring ingress and corrosion challenges that drive maintenance costs and downtime in harsh environments. With NEC/CEC compliance and UL certification supporting electrical safety, it also aligns with industry best practices for hazardous-area installations. The combination of vertical or horizontal sealing, male and female connections, and a durable iron alloy construction delivers reliable performance in oil, gas, and chemical processing facilities. By leveraging a proven sealing technology and compatible form factors, engineers can streamline project timelines, reduce field rework, and ensure compliant wiring through the life of the installation.
Product Information
Extended Description
EYS516 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EYS conduit sealing fitting, Male and female, Feraloy iron alloy and/or ductile iron, Vertical or horizontal, Group B rated, 1-1/2"
Product Name
Eaton Crouse-Hinds series EYS conduit sealing fitting
Catalog Number
EYS516
Product Length/Depth
2.44 in
Product Height
5.5 in
Product Width
2.44 in
Product Weight
4.05 lb
UPC
782274276991
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Sealing position
Vertical or horizontal
Gender
Male and female
Trade size
1-1/2"
Material
Feraloy iron alloy Ductile iron
Special features
Group B rated
Eaton Crouse-Hinds EYS516 3D drawing
Crouse-Hinds series EYS and EZS Explosionproof Conduit Sealing Fittings catalog page
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EYS516
Feature → Business Impact → Application: 1-1/2 inch trade size with both male and female connections simplifies mating and reduces installation time, cutting field labor in new builds and retrofit projects. This improves overall project efficiency and minimizes commissioning delays in hazardous environments where space and alignment matter. Feature → Feraloy iron alloy and ductile iron construction delivers exceptional durability and corrosion resistance in aggressive atmospheres, translating to longer service life and lower maintenance in chemical plants and refineries. Feature → Vertical or horizontal sealing orientation provides flexibility to accommodate equipment layouts and cabinet configurations, reducing retrofit costs and enabling easier retrofits in constrained installations. Feature → Group B rating and NEC/CEC compliance assure regulatory alignment and safer operation in Division 1 and Division 2 zones, decreasing risk of code violations and potential penalties. Feature → 1-1/2" sealing with male and female ends supports quick replacements and standardized spares, enabling better inventory control and faster repair cycles. Feature → Available installation resources such as IF 287 instructions, CAD drawings, and datasheets shorten design time and improve install quality, reducing on-site errors and rework. Measured outcomes include reduced downtime, improved safety margins, and predictable lifecycle costs in hazardous location projects.
Get a Quick Quote for a Eaton Crouse-Hinds EYS516
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EYS516?
Enquire Now
FAQs
Yes. EYS516 is designed for 1-1/2" trade size conduits and supports both vertical and horizontal sealing. This dual-orientation capability simplifies layout planning, reduces the need for extra fittings, and accelerates the install in tight or awkward spaces typical of hazardous locations.
EYS516 carries NEC/CEC compliance and hazardous-location approvals, including Class I, Division 1 and Division 2, Class II Division 1 and Division 2, and Class III. These ratings ensure suitability for hazardous environments such as chemical processing, oil and gas, and mining applications, reducing regulatory risk and supporting safe electrical installations.
Yes. The EYS516 is rated for Class I, Division 1 and Division 2 locations, making it appropriate for chemical plants and other facilities with flammable or hazardous atmospheres. Its Group B rating further reinforces suitability for these demanding environments by meeting stringent industry standards.
Installation resources include IF 287 - Conduit Sealing instructions, a 3D CAD drawing package, a Crouse-Hinds catalog page, and a detailed specification sheet. These materials support correct sizing, orientation, material compatibility (Feraloy iron alloy or ductile iron), and proper sealing technique to minimize field errors.
EYS516 uses durable Feraloy iron alloy and/or ductile iron for rugged service life in harsh environments. Its sealed design minimizes ingress and corrosion, reducing maintenance cycles. Regular inspection per site procedures is recommended, and replacement should rely on standard 1-1/2" fittings to maintain certified hazardous-location compliance and system integrity.
