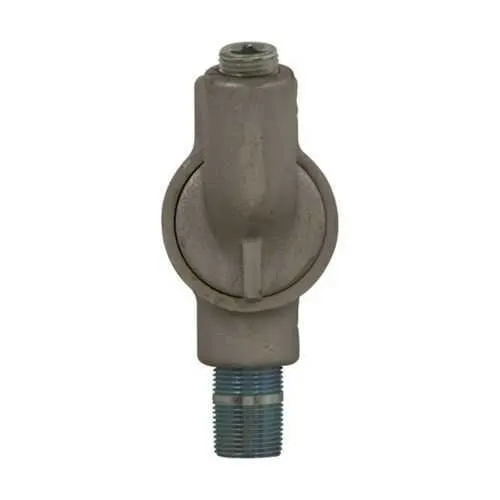

Eaton EZS26 Conduit Sealing Fitting - Hazardous Locations
Part Number: EZS26
Quick Summary
EZS26 conduit sealing fitting provides rugged, reliable sealing for hazardous-location electrical enclosures in industrial facilities. In field installations, misalignment, rigid mounting options, or unsuitable materials can compromise enclosure integrity and safety. This design supports NEC/CEC compliance and hazardous-location ratings, including Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III, with Canadian certifications documented. The combination of any-angle mounting, 3/4 inch trade size, and robust Feraloy iron alloy or ductile iron construction delivers installation flexibility and long service life, reducing rework and maintenance costs in demanding environments.
Product Information
Extended Description
EZS26 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EZS conduit sealing fitting, Male and female, Feraloy iron alloy and/or ductile iron, Any angle, 3/4"
Product Name
Eaton Crouse-Hinds series EZS conduit sealing fitting
Catalog Number
EZS26
Product Length/Depth
5.6 in
Product Height
4.15 in
Product Width
2.53 in
Product Weight
2.2 lb
UPC
782274382500
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Mounting direction
Any angle
Gender
Male and female
Trade size
3/4"
Material
Feraloy iron alloy Ductile iron
Eaton Crouse-Hinds EZS26 3D drawing
Crouse-Hinds series EYS and EZS Explosionproof Conduit Sealing Fittings catalog page
EYS and EZS Explosionproof Conduit Sealing Fittings Canadian certification
EYS and EZS Explosionproof Conduit Sealing Fittings Canadian certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EZS26
Feature: Any-angle mounting and dual-gender design. Business Impact: Flexible installation options reduce field adapters, save time, and minimize wiring congestion. Application: Enclosures with offset or complex conduit entries in hazardous locations. Feature: 3/4 inch trade size with defined dimensions (5.6 in length, 4.15 in height, 2.53 in width) and 2.2 lb weight. Business Impact: Predictable space planning, easier handling, and standardized fit across projects. Application: Industrial control panels and process equipment installations where space is tight. Feature: Material composition of Feraloy iron alloy and/or ductile iron. Business Impact: High strength and abrasion resistance provide durable performance in aggressive environments, lowering replacement and downtime costs. Application: Outdoor, chemical, or high-dust facilities subject to mechanical stress. Feature: NEC/CEC standards compliance and hazardous-location ratings (Class I, Division 1 & 2; Class II, Division 1 & 2; Class III). Business Impact: Streamlined regulatory approval and QA time, reducing project risk. Application: Global deployments requiring cross-border certification. Feature: Area classification and mounting direction support (Any angle). Business Impact: Installation versatility reduces commissioning time and simplifies retrofits. Application: Retrofit projects or new builds in variable installation geometries. Feature: Availability of installation resources (IF 287 Conduit Sealing, Eaton catalog pages, 3D CAD drawings). Business Impact: Clear guidance, fewer field errors, and faster procurement. Application: Engineering design reviews and field installations in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds EZS26
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EZS26?
Enquire Now
FAQs
EZS26 supports any-angle mounting and dual-gender connections for 3/4 in conduits, simplifying alignment and reducing adapters. Follow the IF 287 installation sheet for sealing procedures, ensure proper enclosure grounding, and verify Class I/II/III ratings before commissioning. The result is a robust, code-compliant seal with reduced field errors and faster turnarounds.
EZS26 is designed to meet NEC/CEC standards and hazardous-location ratings, including Class I, Division 1 and 2; Class II, Division 1 and 2; and Class III, along with area classifications for hazardous locations. Canadian certification references are documented in the respective UL/CSA reports, supporting cross-border deployments and regulatory compliance.
Yes. EZS26 is part of the Crouse-Hinds EZS family and shares interface compatibility with related fittings, enabling seamless integration with EYS/EZS assemblies. The dual-gender design and 3/4 in trade size facilitate easy chaining, while NEC/CEC compliance remains intact across combinations in hazardous environments.
The Feraloy iron alloy and/or ductile iron construction provides high strength and corrosion resistance, extending service life in harsh plants and outdoor installations. This reduces replacement frequency and maintenance costs, while the any-angle mounting and straightforward installation lower labor costs and downtime during retrofits or expansions.
Technical resources include 3D CAD drawing packages and installation sheets (IF 287) from Eaton, along with catalog pages for EZS26. These materials support accurate part validation, proper sealing procedures, and efficient procurement during project planning and field installation.
