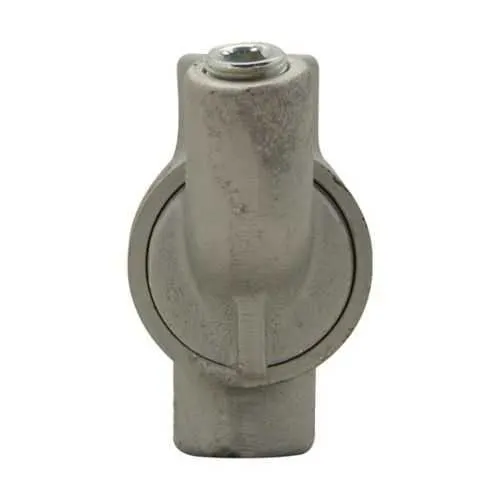

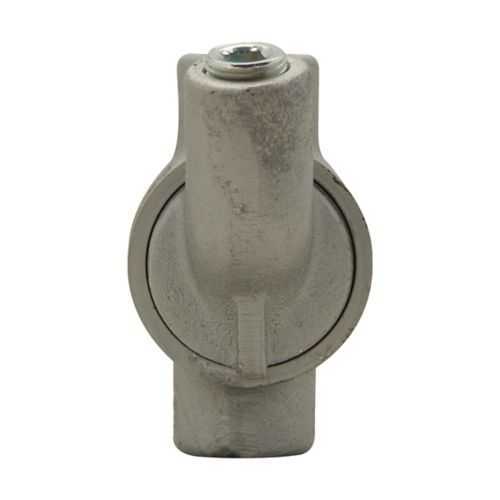

Eaton EZS5 Conduit Sealing Fitting - Hazardous Locations
Part Number: EZS5
Quick Summary
EZS5 conduit sealing fitting by Eaton Crouse-Hinds seals conduits in hazardous locations for reliable, dust- and moisture-free electrical penetrations. In challenging environments, maintaining explosionproof integrity across any mounting angle can be difficult and time-consuming. This EZS5 meets NEC/CEC requirements with Class I, Division 1 and 2, Class II Division 1 and 2, and Class III ratings, supported by UL listings for hazardous locations. Designed for any-angle mounting with a female connection in 1-1/2" trade size, it translates to faster installs and dependable ongoing protection for explosion-proof conduit systems. The combination of rugged material, flexible mounting, and proven certifications helps reduce field rework while improving system reliability and regulatory compliance.
Product Information
Extended Description
EZS5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EZS conduit sealing fitting, Female, Feraloy iron alloy and/or ductile iron, Any angle, 1-1/2"
Product Name
Eaton Crouse-Hinds series EZS conduit sealing fitting
Catalog Number
EZS5
Product Length/Depth
4.56 in
Product Height
5.19 in
Product Width
4.56 in
Product Weight
4.1 lb
UPC
782274382005
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Mounting direction
Any angle
Gender
Female
Trade size
1-1/2"
Material
Feraloy iron alloy Ductile iron
Eaton Crouse-Hinds EZS5 3D drawing
Crouse-Hinds series EYS and EZS Explosionproof Conduit Sealing Fittings catalog page
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EZS5
Feature: Heavy-duty body material (Feraloy iron alloy and/or ductile iron) provides high strength and corrosion resistance. Business Impact: Longer service life and reduced maintenance in harsh industrial environments. Application: Ideal for explosion-proof conduit sealing in chemical plants, refineries, and oil & gas facilities. Feature: Any-angle mounting and female connection simplify installation in tight spaces, reducing alignment errors and rework. Business Impact: Shorter commissioning times and improved field productivity. Application: Electrical enclosures and process areas with irregular layouts. Feature: 1-1/2" trade size ensures compatibility with standard conduit systems, lowering inventory costs and eliminating unnecessary adapters. Business Impact: Streamlined procurement and faster project completion. Application: Medium-size conduit networks across hazardous locations. Feature: NEC/CEC compliance and UL listings support multi-region deployments. Business Impact: Regulatory risk reduction and easier approvals for global projects. Application: Capital projects requiring cross-border certification. Feature: 4.56 in length, 4.56 in width, 5.19 in height with a 4.1 lb weight provide robust yet manageable handling. Business Impact: Easier handling on-site and safer installation practices. Application: Mounting on walls, panels, or cabinets in industrial facilities. Feature: Availability of CAD drawings, installation instructions (IF 287), and an up-to-date spec sheet. Business Impact: Accelerated design, accurate part selection, and reduced field modification. Application: Engineering and procurement workflows, pre-assembly planning, and training.
Get a Quick Quote for a Eaton Crouse-Hinds EZS5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EZS5?
Enquire Now
FAQs
Yes. EZS5 is designed for any-angle mounting and uses a female connection, enabling seamless integration with other EZS components and standard conduit runs. This flexibility reduces alignment issues and allows installation in confined spaces without compromising seal integrity.
EZS5 carries NEC/CEC compliance with NEC hazardous ratings including Class I, Division 1 and 2, Class II Division 1 and 2, and Class III, supported by UL certifications for use in hazardous locations. These ratings ensure safe operation across multiple hazardous environment scenarios.
Industries such as oil and gas, chemical processing, mining, power generation, and refining benefit from EZS5 due to its explosionproof sealing, robust material construction, and compliance with cross-border standards, enabling safer and more reliable conduit sealing in demanding environments.
Refer to the EZS series UL certification pages and the Crouse-Hinds catalog for official listings. Maintain the product UPC (782274382005) and catalog number EZS5 in your compliance documents; the UL listings cover hazardous location approvals across applicable regions.
EZS5 access includes 3D CAD drawings, IF 287 installation instructions, the EZS catalog page, and the Eaton specification sheet. Using these resources reduces design time, improves part accuracy, and minimizes field rework, delivering quicker project completion and lower lifecycle costs.
