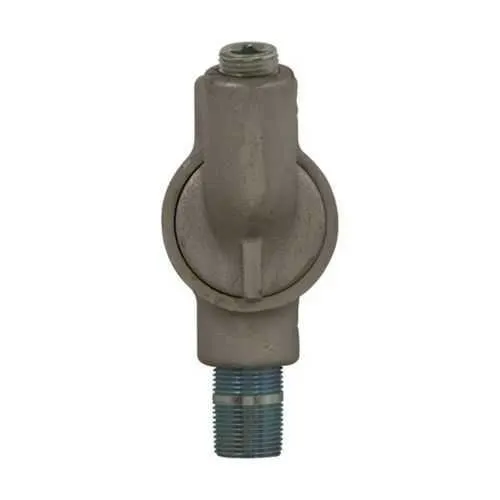

Eaton Crouse-Hinds EZS76 Conduit Sealing Fitting - Hazardous
Part Number: EZS76
Quick Summary
The EZS76 conduit sealing fitting delivers durable, explosionproof sealing for hazardous-area electrical enclosures. Engineers and procurement specialists often face leaks, debris ingress, and lengthy installation when adapting conduit seals to complex layouts. This fitting carries NEC/CEC conformity and hazardous-location ratings (Class I, Division 1 and 2; Class II, Division 1 and 2; Class III), enabling safe operation in harsh environments. With any-angle mounting, bidirectional male and female threads, and a 2-1/2 inch trade size, it streamlines installation and reduces changeouts. Using rugged feraloy iron alloy and/or ductile iron, it withstands vibration, temperature swings, and mechanical impact, delivering lower lifecycle costs. For hazardous environments, its compliance supports safer, faster project turnover and easier maintenance.
Product Information
Extended Description
EZS76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EZS conduit sealing fitting, Male and female, Feraloy iron alloy and/or ductile iron, Any angle, 2-1/2"
Product Name
Eaton Crouse-Hinds series EZS conduit sealing fitting
Catalog Number
EZS76
Product Length/Depth
7.25 in
Product Height
13.38 in
Product Width
6 in
Product Weight
10.4 lb
UPC
782274018010
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Mounting direction
Any angle
Gender
Male and female
Trade size
2-1/2"
Material
Ductile iron Feraloy iron alloy
Eaton Crouse-Hinds EZS76 3D drawing
Crouse-Hinds series EYS and EZS Explosionproof Conduit Sealing Fittings catalog page
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EZS76
Feature: Any-angle mounting, male and female configuration, and 2-1/2 inch trade size; Benefit: installation flexibility and compatibility with varied conduit runs, reducing spares and field modification needs; Application: retrofit and new-build hazardous-area installations in chemical, oil & gas, mining, and other harsh settings. Business impact: faster onboarding of equipment and reduced downtime during commissioning. Feature: Ductile iron and Feraloy iron alloy construction; Benefit: high impact resistance, robust performance in temperature swings, and extended service life; Application: outdoor and indoor industrial environments where mechanical abuse is common. Business impact: lower maintenance costs and improved total cost of ownership. Feature: NEC/CEC conformity and hazardous-location ratings (Class I Div 1/2; Class II Div 1/2; Class III); Benefit: regulatory compliance and safer operation; Application: compliance-driven projects in North American facilities. Business impact: risk reduction and faster permit approvals. Feature: Any-angle mounting plus gasketed seals and installation instructions (IF 287 compliance); Benefit: reliable sealing and simpler installation; Application: field upgrades and new installations. Business impact: reduced leakage risk and predictable performance. Feature: Rugged material combination and standardized footprint; Benefit: broad compatibility with standard conduits and long-term availability; Application: global industrial plants requiring consistent spares and serviceability. Business impact: inventory efficiency and steady maintenance planning.
Get a Quick Quote for a Eaton Crouse-Hinds EZS76
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EZS76?
Enquire Now
FAQs
The EZS76 is designed to seal conduit entries into electrical enclosures located in hazardous environments. It provides explosion-proof sealing, supports any-angle mounting, and accommodates a 2-1/2 inch trade size, making it suitable for Class I, II, and III locations in industries such as chemical processing, oil and gas, and mining. Its feraloy/ductile iron construction ensures durability under vibration, temperature variation, and potential physical impact, helping to maintain enclosure integrity and safety.
Yes. EZS76 supports mounting in any direction (any angle), which facilitates complex layouts and retrofit work. It uses a 2-1/2 inch trade size and features a male and female configuration for versatile connections. This compatibility reduces the need for additional adaptors and speeds up installation in confined or irregular spaces typical of hazardous-area installations.
EZS76 carries NEC/CEC conformity and hazardous-location ratings that cover Class I, Division 1 and 2, Class II, Division 1 and 2, and Class III environments. These certifications matter because they verify installation safety, regulatory compliance, and permit readiness for projects in explosion-prone areas, helping avoid delays and ensuring safe operation of electrical systems.
EZS76 reduces commissioning time through its universal mounting and easy-to-seal interface, lowering field labor and rework. The robust ductile iron and Feraloy alloy resist damage, decreasing maintenance needs. The combination of regulatory compliance and durable construction translates to lower total cost of ownership by extending service intervals and reducing replacement parts.
EZS76 uses ductile iron and Feraloy iron alloy, delivering high impact resistance and performance under temperature fluctuations. This construction is chosen for exposure to vibration, moisture, and corrosive atmospheres found in hazardous locations. The material blend supports long service life, reduces maintenance frequency, and maintains sealing integrity across demanding industrial applications.
