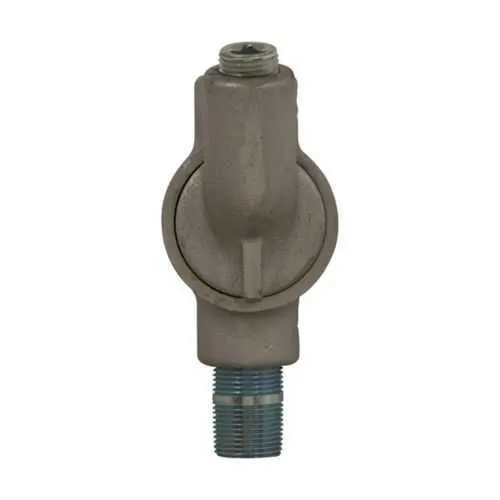

Eaton EZS86 Conduit Sealing Fitting - Hazardous Locations
Part Number: EZS86
Quick Summary
EZS86 conduit sealing fitting provides robust sealing for electrical conduits in hazardous-location installations. Unprotected terminations are vulnerable to moisture, dust, and explosive atmospheres, risking downtime and safety. The fitting meets NEC/CEC standards and hazardous-location ratings, including Class I Division 1 and Class II Division 2, with UL certifications. With mounting versatility for any angle and a 3 in trade size, EZS86 reduces installation time and rework while delivering a code-compliant, durable connection for critical industrial systems.
Product Information
Extended Description
EZS86 Eaton Crouse-Hinds: Eaton Crouse-Hinds series EZS conduit sealing fitting, Male and female, Feraloy iron alloy and/or ductile iron, Any angle, 3"
Product Name
Eaton Crouse-Hinds series EZS conduit sealing fitting
Catalog Number
EZS86
Product Length/Depth
7.25 in
Product Height
13.38 in
Product Width
6 in
Product Weight
13.69 lb
UPC
782274383101
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Mounting direction
Any angle
Gender
Male and female
Trade size
3"
Material
Ductile iron Feraloy iron alloy
Eaton Crouse-Hinds EZS86 3D drawing
Crouse-Hinds series EYS and EZS Explosionproof Conduit Sealing Fittings catalog page
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
EYS and EZS Explosionproof Conduit Sealing Fittings UL certification
IF 287 - Conduit Sealing
Eaton Specification Sheet - EZS86
Feature: Any angle mounting capability. Benefit: Allows flexible installation in tight spaces and complex equipment layouts, reducing cabinet footprint and supporting safer, neater wiring runs in industrial facilities. Application: Control panels and field junctions in chemical plants or refineries where space is constrained. Long-tail keywords: hazardous-location mounting, any-angle conduit fittings, EZS86 installation. Feature: Ductile iron and/or Feraloy iron alloy construction. Benefit: Delivers high strength, impact resistance and corrosion protection for rugged environments, lowering replacement costs. Application: Offshore platforms, mining sites, and heavy-industrial plants. Long-tail keywords: ductile iron conduit fittings, Feraloy alloy fittings, corrosion-resistant conduit seals. Feature: 3" trade size. Benefit: Fits standard conduit systems without extra adapters, accelerating commissioning and reducing parts inventory. Application: Large-diameter conduit networks in process facilities. Long-tail keywords: 3-inch conduit seals, large-bore sealing fittings. Feature: Male and female configuration. Benefit: Simplifies mating with existing conduits and reduces part count, speeding field installs. Application: Retrofit projects and new builds with mixed fittings. Long-tail keywords: male and female conduit fittings, versatile sealing fittings. Feature: NEC/CEC compliance and hazardous-location ratings. Benefit: Ensures regulatory alignment and safer operation in Class I, II, III environments, minimizing compliance risk. Application: Industrial plants across oil & gas, chemical, and power sectors. Long-tail keywords: NEC hazardous rating, UL certified conduit fittings, hazardous-location compliance. Feature: Any-angle mounting and installation support. Benefit: Enhances adaptability in complex plant layouts and streamlines wiring enclosure seals. Application: Electrical rooms, substations, and equipment enclosures. Long-tail keywords: installation versatility, EZS86 mounting options.
Get a Quick Quote for a Eaton Crouse-Hinds EZS86
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds EZS86?
Enquire Now
FAQs
Yes. EZS86 is designed for a 3 inch trade size and supports mounting in any angle, enabling flexible installations in tight spaces and complex equipment layouts commonly found in hazardous locations.
EZS86 uses ductile iron or Feraloy iron alloy for strength and durability, and it is rated for NEC/CEC hazardous locations with Class I, Division 1 and Division 2, Class II, and Class III considerations.
Ideal for explosion-proof conduit seals in oil & gas, chemical processing, power generation, and other facilities with Hazardous/Classified Locations, including areas requiring robust IP/UL-rated protection and NEC/CEC compliance.
EZS86 leverages NEC/CEC standards with UL certification for hazardous locations. Additional documentation includes installation instructions IF 287, CAD drawings, and the EZS catalog pages for reference.
By reducing installation time with a versatile, any-angle mounting and male/female configuration, EZS86 lowers field labor and rework costs while maintaining compliant, durable seals that minimize maintenance in challenging environments.
