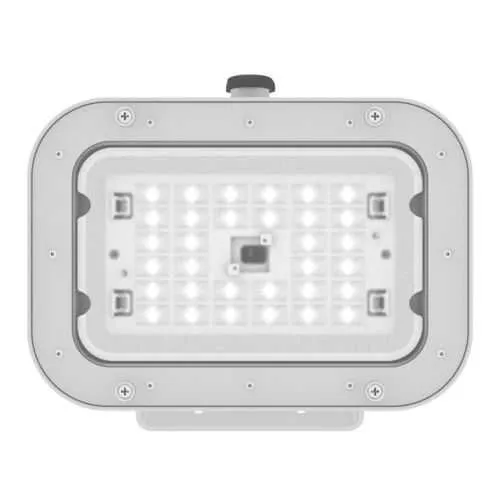

Eaton Crouse-Hinds FMVA-11-76-DG-UNV1-M2 LED Floodlight - IP67 Hazardous Location
Part Number: FMVA-11-76-DG-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA-11-76-DG-UNV1-M2
Category
Quick Summary
FMVA LED floodlight from Eaton Crouse-Hinds delivers high-output lighting for hazardous-location outdoor and industrial facilities. Engineers often contend with harsh environments, limited maintenance access, and the need for reliable operation in Class I, Division 2 zones. It carries NEC/CEC compliance, Hazardous/Classified Locations recognition, IP67 ingress protection, and a NEMA 4X enclosure, ensuring safety and durability in demanding settings. Designed for flexible installation and long service life, it integrates seamlessly with 100–277 VAC supplies across global plants, reducing inventory complexity. With 11000 lumens at 158 lm/W, it delivers robust illumination while helping facilities lower energy costs and maintenance expenditures over the life of the installation.
Product Information
Extended Description
FMVA-11-76-DG-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.79 - 0.28A, Cool white, 3/4" entry, Diffused glass lens, 11000 lumens, 158 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 77W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA-11-76-DG-UNV1-M2
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
UPC
662277149099
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
11000
Lumens per watt
158
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Wattage
77W
Power factor
> 0.90
Amperage Rating
0.79 - 0.28A
Material
Die cast aluminum
Special features
Gray epoxy powder coat
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1956 - Champ FMVA M2 9L-15L LED Luminaire
Crouse-Hinds series FMVA LED Floodlights IES photometric files
Feature: High-output LED delivering 11000 lumens at 158 lm/W. Business Impact: Maximizes site visibility while minimizing energy use and heat, extending fixture life. Application: Hazardous-location outdoor areas in refineries, chemical plants, and mining facilities benefit from reliable, wide-area illumination. Feature: Flexible power and installation options: 77W, 100-277 VAC, PF > 0.90, 50/60 Hz. Business Impact: Simplifies integration with existing electrical systems and reduces transformer costs. Application: Retrofit and new installations across diverse facilities achieve faster deployment and lower total installed cost. Feature: Rugged enclosure with die-cast aluminum, gray epoxy powder coat, IP67, NEMA 4X, and a diffused glass lens coupled with 7x6 optical distribution. Business Impact: Superior corrosion resistance and weather sealing minimize maintenance cycles and ensure uniform light coverage. Application: Outdoor platforms, process yards, and chemical plants operating in harsh environments. Feature: Yoke mounting and 3/4 inch entry, combined with a compact footprint (16.12 in L Ă— 14.94 in H Ă— 9.94 in W) and a 24.95 lb weight. Business Impact: Easier alignment and faster installation reduce downtime and labor costs. Application: Roof edges, gantries, and walkways across industrial sites. Feature: Electrical performance: 11000 lumens, 77W, 100-277 VAC, power factor > 0.90, amperage 0.79-0.28 A. Business Impact: Consistent, energy-efficient operation with broad supply compatibility lowers energy bills and simplifies electrical design. Application: Hazardous-area lighting upgrades in facilities with diverse electrical infrastructures.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA-11-76-DG-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA-11-76-DG-UNV1-M2?
Enquire Now
FAQs
The FMVA-11-76-DG-UNV1-M2 uses a versatile yoke mounting system and a 3/4 inch entry, enabling precise aiming and straightforward attachment to overhead structures. This configuration supports rapid retrofit or new-build deployments in Class I, Division 2 environments while maintaining IP67 weather sealing and NEMA 4X protection.
Yes. The luminaire operates on a wide 100-277 VAC supply with a nominal wattage of 77W and an amperage range of 0.79–0.28A. It maintains a power factor greater than 0.90, making it suitable for diverse electrical infrastructures and helping minimize congestion on inverter or transformer circuits.
Best suited for outdoor hazardous-area lighting in refineries, chemical plants, mining operations, and other facilities requiring Class I, Division 2 compliance. Its 11000 lumen output with 7x6 optical distribution provides broad, high-quality illumination for yards, walkways, and equipment corridors while standing up to corrosive or washdown conditions.
The fixture is rated for Hazardous/Classified Locations under NEC/CEC guidelines, with NEC hazardous rating Class I, Division 2 (and Class II, Division 2 noted in documentation). It carries an IP67 ingress protection rating and a NEMA 4X enclosure, ensuring reliable operation in wet, dusty, and demanding industrial environments.
With 11000 lumens at 158 lm/W and a robust aluminum housing, the floodlight delivers long life and reduced energy use, lowering both maintenance windows and energy costs. Its broad voltage compatibility and durable construction minimize replacement cycles, simplify stock levels, and improve uptime in hazardous-area facilities.
