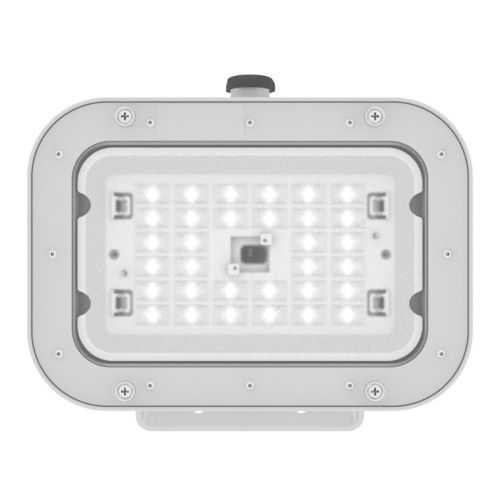

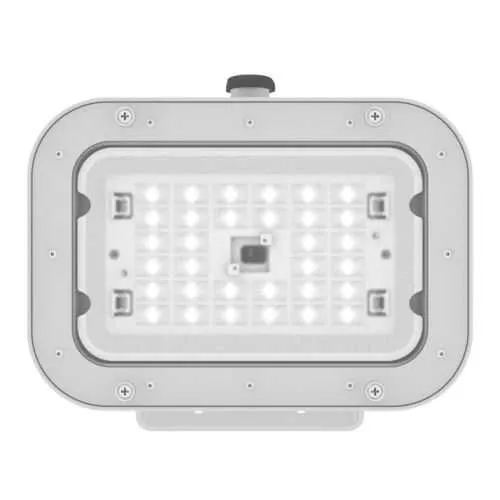

Eaton Crouse-Hinds FMVA-11-76-M20-UNV1-M2 LED Floodlight - IP67
Part Number: FMVA-11-76-M20-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA-11-76-M20-UNV1-M2
Category
Quick Summary
FMVA-11-76-M20-UNV1-M2 LED floodlight provides high-efficiency hazardous-location illumination for industrial facilities. Maintenance teams struggle with reliability and downtime in tough environments; this luminaire minimizes those risks through rugged construction and reliable LED performance. Key certifications, including IP67 ingress protection, NEMA 4X enclosure, and NEC Class I, Division 2 / Class II, Division 2 ratings, help you meet stringent safety and regulatory requirements. With universal 100–277 VAC operation, a long-lasting design, and bright cool-white output, it supports global deployments while lowering operating costs. Engineered for easy compatibility with yoke mounting and standard 20 mm entry fittings, it streamlines retrofit and new-install projects.
Product Information
Extended Description
FMVA-11-76-M20-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.79 - 0.28A, Cool white, 20 mm entry, Heat and impact resistant glass lens, 11000 lumens, 158 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 77W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA-11-76-M20-UNV1-M2
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.92 lb
UPC
662277153041
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
11000
Lumens per watt
158
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
20 mm
Lens material
Heat and impact resistant glass
Wattage
77W
Power factor
> 0.90
Amperage Rating
0.79 - 0.28A
Material
Die cast aluminum
Special features
Gray epoxy powder coat
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1956 - Champ FMVA M2 9L-15L LED Luminaire
Crouse-Hinds series FMVA LED Floodlights IES photometric files
High lumen output and efficiency: The FMVA delivers 11000 lumens at 77 watts with an impressive 158 lumens per watt, enabling wide-area coverage with minimal energy use. This means facilities can brighten large outdoor areas and hazardous zones without escalating utility bills, supporting safer operations in yards, docks, and plant floors. Universal voltage and power quality: 100-277 VAC operation across 50/60 Hz reduces wiring complexity and enables global installations, while a power factor >0.90 minimizes voltage drop and improves electrical system performance. Rugged housing and optics: Die-cast aluminum with gray epoxy powder coat resists corrosion, and heat- and impact-resistant glass protects the lens in harsh environments. IP67 and NEMA 4X ratings provide reliable protection against dust, water, and physical shocks in outdoor or hazardous locations. Mounting and installation ease: Yoke mounting allows flexible aiming on uneven surfaces, and a 20 mm entry size supports common cable glands for straightforward field wiring. The 7x6 optical distribution delivers uniform lighting with minimal hot spots, ideal for large-area coverage. Compliance and lifecycle value: NEC/CEC hazardous-location certifications paired with a long LED life reduce maintenance cycles and total cost of ownership, delivering predictable ROI for oil & gas, chemical processing, and power-generation facilities.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA-11-76-M20-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA-11-76-M20-UNV1-M2?
Enquire Now
FAQs
The FMVA uses a Yoke mounting system for flexible aiming and alignment on uneven surfaces. Its 20 mm entry accommodates common cable glands, simplifying field wiring. When installing in Class I, Division 2 or Class II, Division 2 locations, ensure the fixture is secured to a suitable surface and wired with appropriate enclosure protection to maintain IP67/NEMA 4X integrity.
This luminaire delivers 11,000 lumens at 77 watts with a 158 lm/W efficiency, cool-white color, and a universal 100–277 VAC supply at 50/60 Hz. It maintains a power factor greater than 0.90, covering broad electrical conditions while providing bright, uniform illumination for large hazardous-area zones.
Yes. The fixture is designed for Hazardous/Classified Locations with NEC/CEC compliance and carries NEC hazardous ratings of Class I, Division 2 and Class II, Division 2, along with a NEMA 4X enclosure and IP67 protection for robust, safe operation in demanding environments.
The LED design provides long life and high reliability, reducing maintenance cycles in tough environments. Its energy efficiency lowers operating costs, while durable construction minimizes replacement and downtime, delivering a favorable total cost of ownership for chemical plants, refineries, and offshore facilities.
You can access installation instructions, IES photometric files, and product literature via Eaton’s downloadable resources, including IF 1956 installation sheets and the FMVA datasheets catalog pages, ensuring proper installation, photometrics, and compliance documentation.
