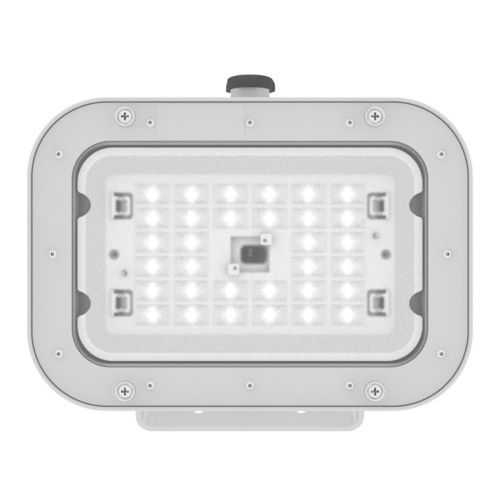

Eaton Crouse-Hinds FMVA-13-22-76-UNV1-M2 Floodlight - IP67
Part Number: FMVA-13-22-76-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA-13-22-76-UNV1-M2
Category
Quick Summary
FMVA-13-22-76-UNV1-M2 LED floodlight from Eaton Crouse-Hinds delivers high-output illumination for hazardous locations. Engineers often struggle to find rugged, code-compliant fixtures that perform reliably in Class I/II, Division 2 environments. This fixture carries NEC/CEC compliance, Hazardous/Classified Locations ratings, and IP67/NEMA 4X protection, ensuring safe operation in tough sites. It is designed for 100–277 VAC operation and ease of installation with a 3/4" entry and yoke mounting. In practice, this translates to lower maintenance costs, faster deployment, and predictable performance in industrial facilities where reliability is non-negotiable.
Product Information
Extended Description
FMVA-13-22-76-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.91 - 0.32A, Deep warm, 3/4" entry, Heat and impact resistant glass lens, 13000 lumens, 154 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 90W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA-13-22-76-UNV1-M2
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.92 lb
UPC
662277153409
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
13000
Lumens per watt
154
Color temperature
Deep warm
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
90W
Power factor
> 0.90
Amperage Rating
0.91 - 0.32A
Material
Die cast aluminum
Special features
Gray epoxy powder coat
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1956 - Champ FMVA M2 9L-15L LED Luminaire
Crouse-Hinds series FMVA LED Floodlights IES photometric files
FMVA-13-22-76-UNV1-M2 delivers 13,000 lumens at 154 lm/W from a 90W LED source, with a wide 7x6 optical distribution. This combination directly reduces the number of fixtures required and lowers energy consumption, delivering a measurable operating cost benefit for large outdoor or perimeter lighting in hazardous locations. The die-cast aluminum housing and gray epoxy powder coat provide robust corrosion resistance and durability in harsh environments, while heat- and impact-resistant glass lens protects optical integrity under mechanical stress and temperature cycling. The fixture uses a 100-277 VAC, 50/60 Hz supply with a PF greater than 0.90, enabling straightforward integration with existing electrical systems. A 3/4" entry and yoke mounting simplify installation and future repositioning for changing site layouts. Compatibility with Hazardous/Classified Locations standards and NEMA 4X/IP67 protection ensures reliable operation in oil, gas, mining, and chemical plants. Industry-focused benefits include reduced maintenance windows, extended service life for LED luminaires, and improved safety due to consistent, high-quality illumination in demanding environments. This FMVA series is well-suited for retrofits or new builds where uptime and compliance are paramount.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA-13-22-76-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA-13-22-76-UNV1-M2?
Enquire Now
FAQs
FMVA-13-22-76-UNV1-M2 supports a 3/4" entry and yoke mounting, simplifying alignment and aiming in constrained spaces. Its enclosure is designed for Class I, Division 2 locations and IP67/NEMA 4X protection, allowing reliable operation in wet, dusty environments. This combination makes retrofits straightforward and minimizes the need for specialized mounting hardware.
The luminaire delivers 13,000 lumens at 154 lm/W from a 90W LED source with a current range of 0.91–0.32A. It operates from 100–277 VAC at 50/60 Hz with a power factor greater than 0.90, ensuring efficient performance and compatibility with standard electrical systems commonly found in industrial facilities.
Yes. The FMVA LED floodlight is rated for Hazardous/Classified Locations with NEC/CEC compliance, Class I, Division 2; II, Division 2. It features IP67 sealing and a NEMA 4X enclosure, making it well-suited for outdoor, wet, and potentially explosive environments typical of oil, gas, and petrochemical plants.
FMVA-13-22-76-UNV1-M2 carries NEC/CEC standards, Hazardous/Classified Locations ratings, and IP67 ingress protection, along with a NEMA 4X enclosure. These certifications ensure safe operation in harsh industrial environments and simplify compliance during audits and inspections.
LED technology combined with a robust die-cast aluminum housing, heat-resistant glass lens, and gray epoxy coating extends service life and reduces maintenance cycles in demanding sites. The high efficacy and reliability translate to lower energy costs, fewer lamp replacements, and improved uptime in critical operations.
